Product Number: CTM1445316-9

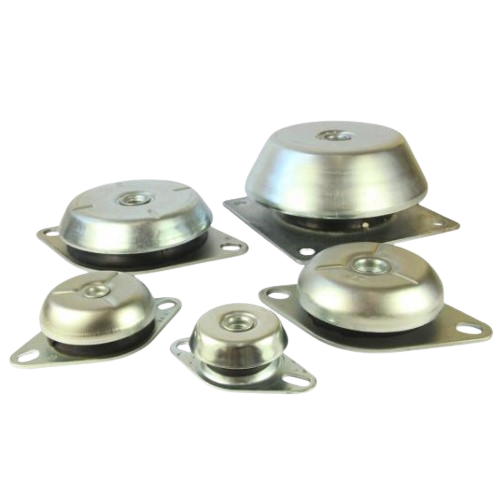

The CTM1445316-9 is the 155 x 53 mm captive transit mount, rated to 1600 kg per point. It is applied to generating sets, industrial and marine engines, pumps, fans and compressors, mobile or static.
Up to 95% vibration reduction in all axes comes from the shear-compression rubber element, protected from oil and fuel by its metal top cap. In transit the integral overload stop limits movement, and the captive arrangement provides the failsafe under shock loads. Dimensions: 155 mm flange, 53 mm flange height, fixing 14X11mm at 176-188mm centres, 120 mm inner dimension, 216 mm free length, 4 mm base. If any dimension on your existing part differs from the figures listed, send our team the measurements and we will confirm the correct item before you order.
Alternative grades on this body: CTM1445316-1 (500 kg), CTM1445316-8 (800 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer Dimensions (A) | 155mm |
|---|---|
| Flange Height (B) | 53mm |
| Thread size (P) | M16 |
| Mounting Hole Dimensions (F x M) | 14X11mm |
| Center Distance (CF) | 176-188mm |
| Inner Dimensions (G) | 120mm |
| Free Length (L) | 216mm |
|
, Max Load 1600
|
|
| Deflection (mm) | 10mm |
| Mounting Base Thickness (S) | 4mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 1400Kg - SFCM160-60
£154.56
£151.53
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1444816-3 | CTM1085016-70 | SFCM160-60 | SFCM180HD-60 | SFCM220HD-45 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 8mm | 3mm | 7 | 14 | 18 |
| Overall Height | 59mm | 86mm | 105mm | ||
| Thread | M16 | M16 | M20 | M20 | M24 |
A. Fit is dimensional - 155 mm flange, fixing holes 14X11mm at 176-188mm centres, M16 stud, 216 mm free length. Compare with your footprint, search PartsForMachines by the AV part number, or WhatsApp our team to confirm.
A. 1600 kg per mounting point.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM1445316-1 (500 kg), CTM1445316-8 (800 kg). Work out the load per mounting point and pick the grade that covers it.
A. The metal top cap is designed to protect the rubber element from contamination such as oil and fuel.
