Product Number: SFCM180-60
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

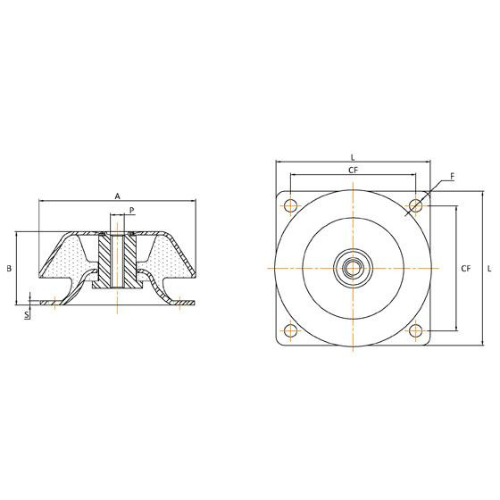

| Top Outer Dimension (A) | 180mm |
|---|---|
| Overall Height (B) | 66mm |
| Thread Size (P) | M20 |
| Fixing Hole Dimension (F) | 14.5mm |
| Center Distance (CF) | 149-163mm |
| Base Width (L) | 192mm |
| Base Plate Thickness (S) | 4mm |
| Max Load (kg) | 2000 |
| Deflection (mm) | 7 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 2500Kg - SFCM220-45
£338.67
£332.03
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SFCM180HD-60 | CTM1445316-9 | CTM1085016-70 | CTM1444816-3 | SFCM220-45 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 14 | 10mm | 3mm | 8mm | 10 |
| Overall Height | 86mm | 105mm | |||
| Thread | M20 | M16 | M16 | M16 | M24 |
A. The SFCM180 is rated for a compression-and-shear load range of 149–163 kg.
A. The mount has a flange dimension (A) of 180 mm, a body diameter (B) of 66 mm, an M20 stud thread (P), a flange thickness (F) of 14.5 mm, an overall height (L) of 192 mm, and a stiffness value (S) of 5.
A. The SFCM180 is suitable for generating sets, diesel engines, marine engines, pumps and compressors, construction and plant equipment, and industrial and commercial vehicles — in both mobile and static installations.
A. The SFCM180 incorporates an integral overload stop that controls equipment movement during transit, and a failsafe arrangement specifically designed to prevent catastrophic failure under sudden shock loads.
A. The rubber element, operating in shear-compression, delivers vibration reduction of up to 95% across all axes.
A. Yes. A metal top cap protects the rubber element from oil, fuel, and contamination, and the metal components carry a protective plating that resists corrosion in service.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Related variants include the SFCM150, SFCM150HD, SFCM160, SFCM180HD, SFCM220, and SFCM220HD, covering a range of load capacities and duty ratings.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
