Product Number: SFCM220HD-60
Variations
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

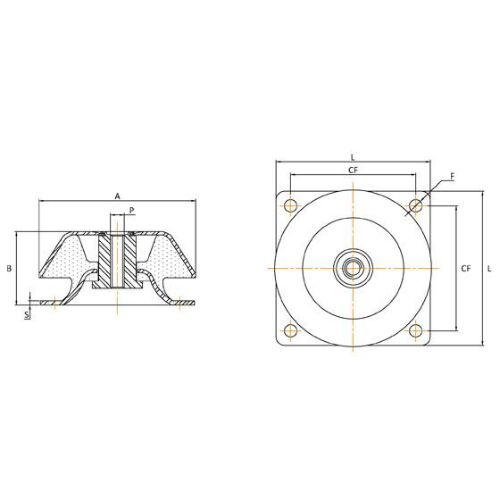

| Top Outer Dimension (A) | 220mm |
|---|---|
| Overall Height (B) | 105mm |
| Thread Size (P) | M24 |
| Fixing Hole Dimension (F) | 17.5mm |
| Center Distance (CF) | 180mm |
| Base Width (L) | 220mm |
| Base Plate Thickness (S) | 6mm |
| Max Load (kg) | 3000 |
| Deflection (mm) | 18 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 2500Kg - SFCM220-45
£338.67
£332.03
2% OFF
|
Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 2000Kg - SFCM180-60
£296.58
£290.76
2% OFF
|
Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 4000Kg - SFCM220-60
£338.67
£332.03
2% OFF
|
||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SFCM220-45 | SFCM180-60 | SFCM220-60 | SFCM220HD-70 | SFCM180HD-60 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 10 | 7 | 9 | 15 | 14 |
| Overall Height | 105mm | 66mm | 105mm | 105mm | 86mm |
| Thread | M24 | M20 | M24 | M24 | M20 |
A. The SFCM220HD has a face dimension A of 220 mm, overall height L of 220 mm, element height B of 105 mm, flange thickness F of 17.5 mm, bolt-pitch CF of 180 mm, stud thread P of M24, and six mounting holes (S: 6).
A. This mount is suited to generating sets, diesel and marine engines, construction and plant equipment, pumps and compressors, and industrial and commercial vehicles — covering industries including power generation, construction and off-highway, agriculture, marine, railway and mass transit, and military and defence.
A. The SFCM220HD features an integral overload stop that controls movement of the mounted equipment during transit, and a failsafe arrangement that manages shock loads to prevent catastrophic failure — both being standard design features of this captive mount family.
A. A metal top cap shields the rubber element against oil, fuel, and general contamination, and a protective plating is applied to the metalwork to resist corrosion — important in plant, marine, and off-highway environments where exposure to these elements is common.
A. The rubber element operates in shear-compression and the family delivers vibration reduction of up to 95% across all axes, providing effective isolation between the mounted equipment and its supporting structure.
A. Yes — stainless steel metalwork, oil-resistant rubbers, and high-temperature rubbers are available on request, as are additional and custom sizes beyond those shown in the standard stocked range.
A. The range includes SFCM150, SFCM150HD, SFCM160, SFCM180, SFCM180HD, and SFCM220 — covering a variety of sizes and duty ratings to suit lighter through to high-load applications.
