Product Number: CTM9335
Variations

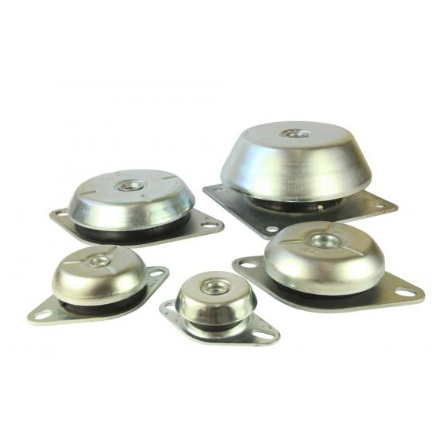

Sitting in the mid-range of the captive transit mount family, CTM9335 is a 93mm-diameter rubber-to-metal bonded mount engineered to manage both continuous vibration loads and the sudden shock loads that mobile and static plant encounters during transit. With a static load capacity indicated by its load/deflection specification, g: 70, S: 2.5. This mount is well matched to generating sets, diesel engines, pumps and compressors, and construction and plant equipment operating across that demanding mid-load band. The captive design incorporates an integral overload stop that governs movement of mounted equipment during transit, and a failsafe arrangement that controls shock loads to prevent catastrophic structural failure. Rubber is employed in shear-compression for optimum performance, delivering vibration reduction of up to 95% across all axes. A metal top cap protects the assembly against oil, fuel and environmental contamination, while protective plating resists corrosion, both features extending service life in harsh field conditions. With thread options P: M10/M12 and principal dimensions A: 93mm, B: 35mm, CF: 122–124, F×M: 10ø, and L: 144mm, CTM9335 provides a versatile mechanical fit for marine engines, industrial and commercial vehicles, and mobile equipment across the construction, agriculture, power generation and automotive sectors. Mounts may be loaded in shear, compression or a combination of both. Softer grades within the range give greater deflection and better isolation at lower loads; harder grades carry higher loads with less movement.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 93 |
|---|---|
| Width / dimension B (mm) | 35 |
| Pitch / dimension P (mm) | M10 / M12 |
| Fixing hole F (mm) / Thread / stud size M | 10ø |
| Across flats / clearance CF (mm) | 122 - 124 |
| Fixing hole spacing G (mm) | 70 |
| Length L (mm) | 144 |
| Plate / metal thickness S (mm) | 2.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM-R | CTM-R2 | CTM-R3 | CTM10638 | CTM1063812-45 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Size | 64mm | 106mm | |||
| Deflection | 3.5mm | 3.5mm | 4mm | ||
| Size Range | 51-100mm | 101-200mm | |||
| Thread | M12 | M12 | M12 | M12 | M12 |
A. CTM9335 has a principal diameter (A) of 93mm, height (B) of 35mm, thread options (P) of M10/M12, fixing diameter (F×M) of 10ø, captive feature dimension (CF) of 122–124, overall length (L) of 144mm, and a static deflection (S) of 2.5. The G value is 70.
A. CTM9335 is suited to generating sets, diesel engines, marine engines, pumps and compressors, construction and plant equipment, and industrial and commercial vehicles — both in mobile and static installations where transit shock loads must be controlled.
A. The integral overload stop governs movement of mounted equipment during transit, whilst the failsafe arrangement controls shock loads and prevents catastrophic failure. This dual-action protection is built into every mount in the range.
A. Rubber used in shear-compression delivers vibration reduction of up to 95% across all axes.
A. A metal top cap protects against oil, fuel and contamination, and protective plating resists corrosion — making the mount appropriate for demanding mobile plant and field environments.
A. Yes. The captive transit mount range covers load ratings from approximately 20 kg to 5,000 kg and is stocked in various shore hardnesses. Related variants include CTM-R, CTM10638, CTM10642, CTM10850, CTM11548, CTM12142, CTM12548 and CTM14448. Stainless steel metalwork, oil-resistant rubbers and high-temperature rubber compounds are available on request.
