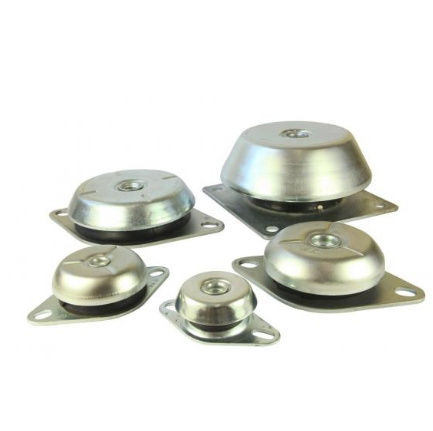

Working across the lower end of the captive transit mount load range, CTM8335 delivers the integral overload stop and failsafe shock-load arrangement that define the captive transit mount family, packaged in an 83 mm body with M10/M12 thread options suited to lighter mobile and static installations. Rated from approximately 108 to 110 kg (CF), it addresses the kind of sustained vibration and transit shock loads encountered on pumps, compressors, and smaller generating sets where compact geometry matters as much as load capacity. The mount is constructed using rubber-to-metal bonded technology, with the rubber element working in shear-compression to deliver vibration reduction of up to 95% across all axes. A metal top cap shields the rubber from oil, fuel, and general contamination, while protective plating on the metalwork resists corrosion, both features essential for equipment operating in workshop, agricultural, or plant environments. The integral overload stop controls movement during transit, and the failsafe arrangement prevents catastrophic failure under shock loading, protecting both the mounted equipment and surrounding structures. Key dimensions for installation planning: overall diameter A 83 mm, height B 35 mm, fixing centres F×M 11ø, overall length L 135 mm, and stud projection S 3.0 mm. These figures position CTM8335 as an appropriate choice where envelope constraints rule out larger-body variants. Applications served by the captive transit mount family include marine engines, diesel engines, construction and plant equipment, industrial and commercial vehicles, and power generation equipment.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 83 |
|---|---|
| Width / dimension B (mm) | 35 |
| Pitch / dimension P (mm) | M10 / M12 |
| Fixing hole F (mm) / Thread / stud size M | 11ø |
| Across flats / clearance CF (mm) | 108 - 110 |
| Fixing hole spacing G (mm) | 65 |
| Length L (mm) | 135 |
| Plate / metal thickness S (mm) | 3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | UU20-70*-70 | TMM | NIB1389*-70 | NIB1389*-60 | NIB1389*-45 | IB1393-70 |
| Thread Size | M10 | M10 | M10 | M10 | M10 | M10 |
| Mount Type | UU Shear Mountings | Turret Mountings | Interleaf Mountings | Interleaf Mountings | Interleaf Mountings | Interleaf Mountings |
| Size Band | 76–125mm | 76–125mm | 76–125mm | 76–125mm | 76–125mm | 76–125mm |
| Hardness Shore | 70 | 70 | 60 | 45 | 70 | |
A. CTM8335 has a CF (compression force) rating of 108 to 110 kg, positioning it at the lower end of the captive transit mount range and making it suited to lighter mobile and static installations.
A. The overall diameter (A) is 83 mm, height (B) is 35 mm, fixing centres (F×M) are 11ø, overall length (L) is 135 mm, and stud projection (S) is 3.0 mm. Thread options are M10 and M12.
A. CTM8335 incorporates an integral overload stop that controls movement of mounted equipment during transit, and a failsafe arrangement that controls shock loads to prevent catastrophic failure.
A. The rubber element works in shear-compression to deliver vibration reduction of up to 95% across all axes.
A. CTM8335 is suitable for pumps, compressors, smaller generating sets, diesel engines, marine engines, and construction and plant equipment, covering both mobile and static applications.
A. A metal top cap protects the rubber element against oil, fuel, and contamination, while protective plating on the metalwork resists corrosion.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Yes — related sizes include CTM-R, CTM10638, CTM10642, CTM10850, CTM11548, CTM12142, CTM12548, and CTM14448, covering load ratings up to 5,000 kg.
