Product Number: FB00-75
Variations

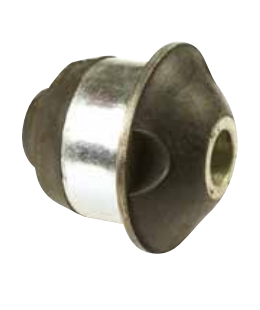

Compact in footprint yet engineered for firm resistance, the FB00-75 is a 36 mm flanged rubber-to-metal bonded bush rated to a maximum load of 40 kg at 75 Shore A hardness, the firmest grade in the FB00 series, designed to hold components with minimal deflection under heavier dynamic loads and shock inputs. At this end of the range, the higher durometer delivers reduced movement, making it well suited where positional control and restraint matter as much as vibration attenuation. Constructed with rubber bonded between inner and outer metal sleeves, the FB00-75 requires no lubrication and is entirely maintenance free. The rubber-to-metal bond withstands dynamic loading in shear, compression, or combined directions, contributing to extended service life in demanding environments. For applications requiring corrosion resistance or fluid exposure, stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, alongside additional custom sizes. The firm 75 Shore A grade is particularly applicable where cab mounts, mechanical linkages, or pivot bearings must resist shock and impact without allowing excessive positional movement, for example in construction and off-highway plant, military and defence equipment, railway and mass transit assemblies, and automotive or agricultural chassis systems. The rubber-to-metal construction protects surrounding structures, improves operator comfort, and extends the working life of adjacent components. The FB00 flanged bush is available in softer grades for greater deflection and isolation: FB00-45 (45 Shore A) and FB00-60 (60 Shore A). For larger flanged bush variants, see FB02, FB10, FB20, FB21, FB40, and FB41.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | IOS36626571 | IOS35655060 | TB50-60 | TB50-75 | TBCBA20-75 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 36mm | 35mm | 35mm | 35mm | 36.8mm |
| Deflection | 1.6 | 1.6 | 2.5 | ||
| Overall Height | 35mm | 35mm | 36.8mm | ||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The FB00-75 is rated to a maximum load of 40 kg. At 75 Shore A — the firmest grade in the FB00 series — it carries load with the least deflection of the three available hardness options, making it appropriate where positional restraint under heavier or shock loading is required.
A. Key dimensions are: outer diameter (A) 36 mm, B 28 mm, C 12 mm, D 11 mm, E 8.1 mm, F 26 mm, G 12 mm, H 26 mm, I 5.2 mm, Figure 1 configuration. No PCD is specified.
A. The firm 75 Shore A grade is suited to applications requiring high load capacity and minimal movement, including cab mounts, mechanical linkages, pivot bearings, and chassis assemblies in construction and off-highway, military and defence, railway and mass transit, agricultural, and automotive equipment — particularly where shock and impact loads must be resisted without excessive positional deflection.
A. No. The rubber-to-metal bonded construction is maintenance free and requires no lubrication throughout its service life.
A. Harder grades carry higher loads with less movement; softer grades give greater deflection and better vibration isolation at lower loads. The FB00-45 (45 Shore A) and FB00-60 (60 Shore A) offer progressively greater deflection and isolation performance. The FB00-75 delivers the firmest response, with the highest load capacity and least movement in the FB00 series.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes beyond the standard range.
A. Larger flanged bush variants are available across the FB02, FB10, FB20, FB21, FB40, and FB41 series. Within the FB00 geometry, alternative Shore grades are FB00-45 and FB00-60.
