Product Number: FB00-60
Variations

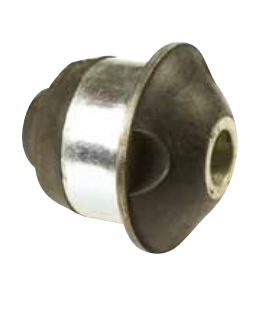

At 36 mm outer diameter and rated to a maximum load of 30 kg, FB00-60 is the compact entry point of the flanged bush range, purpose-built for lighter installations where a balanced combination of load support and vibration isolation is required. Rubber-to-metal bonded construction, with the rubber element vulcanised between inner and outer metal sleeves. Delivers high durability under dynamic loads and a prolonged service life without the need for lubrication or ongoing maintenance. The 60 Shore A medium hardness grade occupies the broad middle ground of the range: softer than the 75 Shore A variant for greater isolation capacity, yet firmer than the 45 Shore A for improved support where modest structural rigidity is needed. This equilibrium makes FB00-60 well-suited to applications that must simultaneously damp vibration and resist controlled movement, without the deflection bias of a soft grade or the restricted compliance of a firm one. The bush may be loaded in shear, compression, or a combination of both. With dimensional references A: 36 mm, B: 28 mm, C: 12 mm, D: 11 mm, E: 8.1 mm, F: 26 mm, G: 12 mm, H: 26 mm and I: 5.2 mm (Fig. 1), FB00-60 is suited to compact pivot bearings, mechanical linkages, cab mounts, and engine mounts across agricultural, power generation, marine, and automotive applications. Its smaller footprint also makes it a practical choice for sensitive installations where space is constrained and lower dynamic loads are present. This bush is part of a wider flanged bush range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | IOS36626571 | TBCBA20-75 | IOS35655060 | TB50-60 | TB50-75 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 36mm | 36.8mm | 35mm | 35mm | 35mm |
| Deflection | 2.5 | 1.6 | 1.6 | ||
| Overall Height | 36.8mm | 35mm | 35mm | ||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. FB00-60 is rated to a maximum load of 30 kg, making it suitable for lighter and compact installations within the flanged bush range.
A. The bush dimensions (Fig. 1) are: A 36 mm, B 28 mm, C 12 mm, D 11 mm, E 8.1 mm, F 26 mm, G 12 mm, H 26 mm, and I 5.2 mm.
A. A 60 Shore A rating places this bush at the medium point of the range. Softer grades offer greater deflection and better isolation at lower loads; harder grades carry higher loads with less movement. The 60 Shore A grade balances isolation and structural support, making it suitable for general-purpose machinery mounting.
A. FB00-60 is suited to pivot bearings, mechanical linkages, cab mounts, and engine mounts. It is used across industries including agriculture, power generation, marine, and automotive, particularly where compact fitment and lower dynamic loads are involved.
A. The bush may be loaded in shear, compression, or a combination of both, providing flexibility across a range of mounting configurations.
A. No. The rubber-to-metal bonded construction means the bush requires no lubrication and is fully maintenance free throughout its service life.
A. Yes. Alternate Shore grades of the same 36 mm geometry are available as FB00-45 (45 Shore A, soft) and FB00-75 (75 Shore A, firm). Larger flanged bush variants include FB02, FB10, FB20, FB21, FB40, and FB41. Custom sizes, stainless steel metalwork, and oil-resistant or high-temperature rubber compounds are also available on request.
