Product Number: ECC2174-45-45
Variations

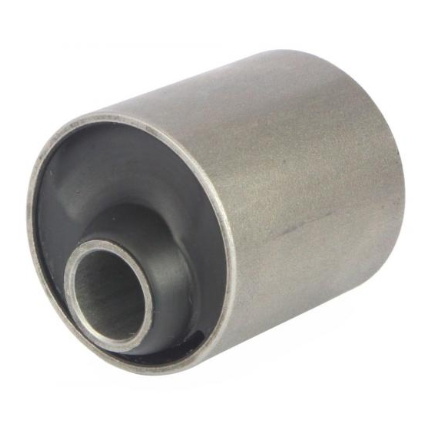

Where vibration isolation takes priority over load restraint, the ECC2174-45-45 Eccentric Bush offers the compliance and movement that lighter, sensitive or lower-frequency installations demand. Sized at 24 mm inner diameter (A: 24 mm) with an outer diameter of 75.3 mm (B), overall length of 51.0 mm (C), and a flange diameter of 70 mm (D), this 45 Shore A soft-grade bush is engineered for applications where the rubber must absorb energy and permit controlled deflection rather than rigidly resist it. The 45 Shore A rubber compound is bonded directly to the inner and outer metal sleeves, producing a rubber-to-metal construction that requires no lubrication and is entirely maintenance free. The soft grade yields a radial stiffness of 750 N/mm (F1) and an F2 stiffness of 600 N/mm, with a maximum deflection of 3.5 mm under load, figures that reflect the grade's emphasis on compliance and isolation over stiffness. At this hardness, the mount gives greater deflection and better isolation at lower load, making it the natural choice wherever protecting sensitive structures, improving operator comfort, or isolating lower-frequency vibration sources is the primary objective. Typical application areas include pivot bearings, mechanical linkages, cab mounts, engine mounts, and compact or sensitive installations across construction and off-highway, agricultural, marine, power generation, railway and mass transit, and automotive sectors, where a maximum load rating of 270 kg meets the demands of mid-range and lighter duty arrangements.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ECC2174-45 | ECC2174-60 | ECC2174-75 | IOS24506470 | IOS25403030 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 24mm | 24mm | 24mm | 24mm | 25mm |
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The ECC2174-45-45 has an inner diameter (A) of 24 mm, outer diameter (B) of 75.3 mm, overall length (C) of 51.0 mm, flange diameter (D) of 70 mm, and a dimension E of 10.5 mm.
A. The ECC2174-45-45 has a radial stiffness (F1) of 750 N/mm and an F2 stiffness of 600 N/mm, with a maximum deflection of 3.5 mm and a maximum load rating of 270 kg.
A. A softer 45 Shore A grade gives greater deflection and better vibration isolation at lower load. It is the appropriate choice for lighter, more sensitive, or compact installations and for lower-frequency isolation requirements where compliance and energy absorption matter more than maximum load resistance.
A. This bush is suited to pivot bearings, mechanical linkages, cab mounts, and engine mounts across construction and off-highway, agricultural, marine, power generation, railway and mass transit, and automotive applications. It is particularly well matched to lighter duty and sensitive installations where vibration isolation is the primary requirement.
A. No. The rubber-to-metal bonded construction of the ECC2174-45-45 requires no lubrication and is entirely maintenance free.
A. Yes — the ECC2174-45-45 may be loaded in shear, compression, or a combination of both, giving flexibility across a wide range of mounting configurations.
A. Yes. The ECC2174-45-45 is part of a wider range that includes ECC1165-45, ECC1165-60, ECC1270-45, ECC1270-60, ECC1270-75, ECC1355-45, ECC1355-60, and ECC2174-60. Custom sizes, stainless steel metalwork, and oil-resistant or high-temperature rubber compounds are available on request.
