Product Number: IOS1004
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS16454652 | 16 | 45 | 46 | 52 |
| IOS20463542 | 20 | 46 | 35 | 42 |
| IOS0877 | 25.4 | 46.7 | 25.4 | 34.9 |
| IOS15473137 | 15 | 47 | 31 | 37 |
| IOS2847110116 | 28 | 47 | 110 | 116 |
| IOS24506470 | 24 | 50 | 64 | 70 |
| IOS30506066 | 30 | 50 | 60 | 66 |
| IOS25503034 | 25 | 50 | 30 | 34 |
| IOS255 | 25 | 50 | 65 | 68 |
| IOS25508085 | 25 | 50 | 80 | 85 |

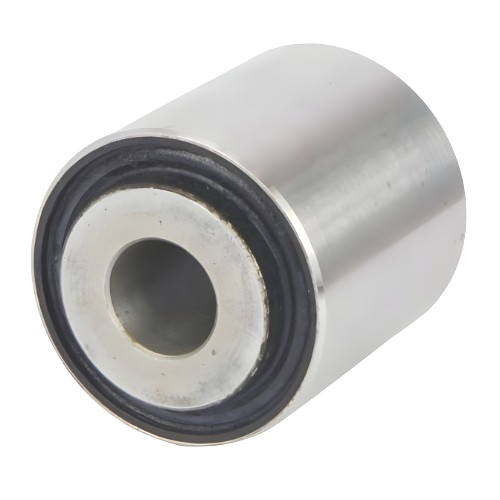

Compact in its footprint yet proven across demanding dynamic environments, the IOS1004 is a rubber-bonded inner-outer-sleeve bush carrying a 15.9 mm inner bore (dimension A), 47.6 mm outer sleeve diameter (dimension B), 44.5 mm length (dimension C), and 50.8 mm flange or overall diameter (dimension D). At this smaller size band, the IOS1004 is well suited to lighter-duty pivot bearings, mechanical linkages, and sensitive equipment installations where controlled compliance under dynamic load is essential without the bulk of larger-format bushes. Constructed with rubber bonded between precision inner and outer metal sleeves, this bush delivers high durability under dynamic loads alongside a prolonged service life. The rubber-to-metal bonded construction requires no lubrication and is maintenance free throughout its service life, reducing planned downtime and eliminating the need for greasing schedules in installations where access is restricted or infrequent servicing is preferred. The IOS1004 may be loaded in shear, compression, or a combination of both, giving engineers flexibility in mount orientation and joint design. Typical deployment spans industries including automotive and off-highway, construction, marine, agriculture, power generation, and railway and mass transit applications. By absorbing and isolating dynamic forces at the joint, the bush improves machinery lifespan, protects surrounding structures, and enhances operator comfort in cab and chassis assemblies. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request for specialist environments. The IOS1004 forms part of a wider IOS range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 15.9mm |
|---|---|
| Outer Diameter (ØB) | 47.6mm |
| Rubber Body Length (C) | 44.5mm |
| Overall Length (D) | 50.8mm |
| Warranty | 6 Months |
| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Suspension Bush - Inner Dia 15.9mm, Outer Dia 47.6mm, L 44.5mm - IOS1004
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ECC1270-45 | ECC1270-45-45 | ECC1270-60 | ECC1270-60-60 | ECC1270-75 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 16mm | 16mm | 16mm | 16mm | 16mm |
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The IOS1004 has an inner bore (A) of 15.9 mm, outer sleeve diameter (B) of 47.6 mm, length (C) of 44.5 mm, and an overall or flange diameter (D) of 50.8 mm.
A. The IOS1004 may be loaded in shear, compression, or a combination of both, providing flexibility in joint design and mount orientation.
A. No. The rubber-to-metal bonded construction is maintenance free and requires no lubrication throughout its service life.
A. The IOS1004 is suited to pivot bearings, mechanical linkages, cab mounts, engine mounts, and installations across automotive, construction, agriculture, marine, power generation, and railway and mass transit industries.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
A. Related sibling sizes include IOS08192830, IOS0877, IOS0989, IOS1005, IOS10222420, IOS10252025, IOS10273840, and IOS12222528, covering a wide spread of bore and sleeve dimensions.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
