Product Number: IOS25503034
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS15473137 | 15 | 47 | 31 | 37 |
| IOS2847110116 | 28 | 47 | 110 | 116 |
| IOS1004 | 15.9 | 47.6 | 44.5 | 50.8 |
| IOS24506470 | 24 | 50 | 64 | 70 |
| IOS30506066 | 30 | 50 | 60 | 66 |
| IOS255 | 25 | 50 | 65 | 68 |
| IOS25508085 | 25 | 50 | 80 | 85 |
| IOS25504045 | 25 | 50 | 40 | 45 |
| IOS25507985 | 25 | 50 | 79 | 85 |
| IOS25506568 | 25 | 50 | 65 | 68 |
Configured for mainstream general-machinery mounting at moderate loads, the IOS25503034 is a 25 mm bore inner-outer-sleeve bush with an outer diameter of 50 mm, a C dimension of 30 mm and a D dimension of 34 mm, a mid-range profile well suited to applications where controlled deflection under steady dynamic loading is the design priority. The bush uses rubber-to-metal bonded construction, with the elastomer vulcanised between precision-formed inner and outer metal sleeves. This bonded assembly delivers high durability under dynamic loads and is engineered for prolonged service life without any requirement for lubrication or routine maintenance. The design accommodates loading in shear, compression or a combination of both, making it adaptable across a range of mounting geometries. The IOS25503034 is applicable to pivot bearings, mechanical linkages, engine mounts and cab mounts across construction and off-highway equipment, agricultural machinery, power generation plant, marine installations, railway and mass transit rolling stock, and automotive assemblies. The rubber-to-metal bond protects surrounding structures, contributes to improved machinery lifespan and enhances operator comfort by attenuating transmitted vibration. Where environmental demands require it, stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes. This bush is part of the broader IOS Eccentric and Spherical Bush range, which spans multiple bore sizes, outer diameters and sleeve lengths. Related variants available at PartsForMachines include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840. The IOS25503034 is supplied as a single bonded bush unit.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 25mm |
|---|---|
| Outer Diameter (ØB) | 50mm |
| Rubber Body Length (C) | 30mm |
| Overall Length (D) | 34mm |
| Warranty | 6 Months |
| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|

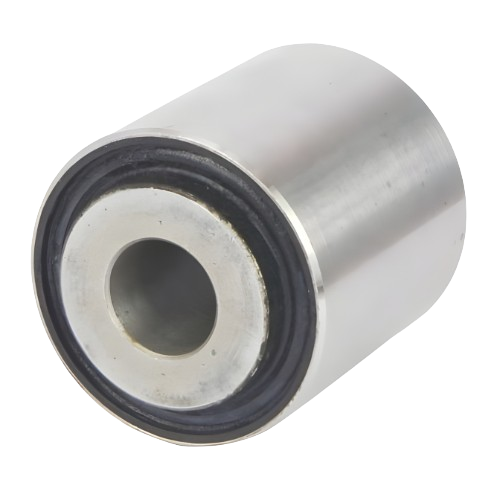

Suspension Bush - Inner Dia 25mm, Outer Dia 50mm, L 30mm - IOS25503034
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TB45-45 | TB45-60 | ECC1165-45 | ECC1165-45-45 | ECC1165-60 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 25mm | 25mm | 25.4mm | 25.4mm | 25.4mm |
| Deflection | 1.2 | 1.2 | |||
| Overall Height | 25mm | 25mm | |||
| Size Range | 11-25mm | 11-25mm | 26-50mm | 26-50mm | 26-50mm |
A. The IOS25503034 has a bore (A) of 25 mm, an outer diameter (B) of 50 mm, a C dimension of 30 mm and a D dimension of 34 mm.
A. The rubber-to-metal bonded construction of the IOS25503034 allows it to be loaded in shear, compression or a combination of both, making it suitable for a range of dynamic mounting applications.
A. No. The IOS25503034 is maintenance free and requires no lubrication throughout its service life.
A. Typical applications include pivot bearings, mechanical linkages, engine mounts and cab mounts. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes beyond the standard range.
A. Related variants stocked at PartsForMachines include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840, covering a range of bore sizes, outer diameters and sleeve lengths.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
