Product Number: IOS255
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS2847110116 | 28 | 47 | 110 | 116 |
| IOS1004 | 15.9 | 47.6 | 44.5 | 50.8 |
| IOS24506470 | 24 | 50 | 64 | 70 |
| IOS30506066 | 30 | 50 | 60 | 66 |
| IOS25503034 | 25 | 50 | 30 | 34 |
| IOS25508085 | 25 | 50 | 80 | 85 |
| IOS25504045 | 25 | 50 | 40 | 45 |
| IOS25507985 | 25 | 50 | 79 | 85 |
| IOS25506568 | 25 | 50 | 65 | 68 |
| IOS1005 | 28.58 | 54.6 | 114 | 123.8 |
The IOS255 is a rubber-bonded inner-outer-sleeve bush built around a 25 mm bore, suited to mainstream general-machinery mounting where moderate dynamic loads demand consistent, maintenance-free performance. With its rubber compound bonded directly between inner and outer metal sleeves, the assembly delivers high durability under sustained dynamic loading without any requirement for lubrication across its service life. The rubber-to-metal bonded construction allows the IOS255 to absorb and isolate vibration when loaded in shear, compression, or a combination of both. This versatility makes it equally capable in mechanical linkages and pivot-bearing positions where multi-directional movement occurs, as well as in cab-mount and engine-mount applications across general industrial and off-highway machinery. Protecting surrounding structures and improving operator comfort are direct outcomes of correct fitment. Key dimensions are: A (bore) 25 mm, B 50 mm, C 65 mm, D 68 mm. The bush is designed to sit within the standard load band for this bore size, making it a practical choice for construction and off-highway plant, agricultural machinery, power generation equipment, marine installations, railway and mass transit vehicles, and automotive and military applications where a proven eccentric or spherical-style bush is specified. IOS255 sits within an extensive IOS family. Related sizes available include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025, and IOS10273840. Where stainless steel metalwork or oil-resistant and high-temperature rubber compounds are required, custom options are available on request. No warranty information is held on file for this product. Manufacturing origin is shown in the product attributes.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 25mm |
|---|---|
| Outer Diameter (ØB) | 50mm |
| Rubber Body Length (C) | 65mm |
| Overall Length (D) | 68mm |
| Warranty | 6 Months |
| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|

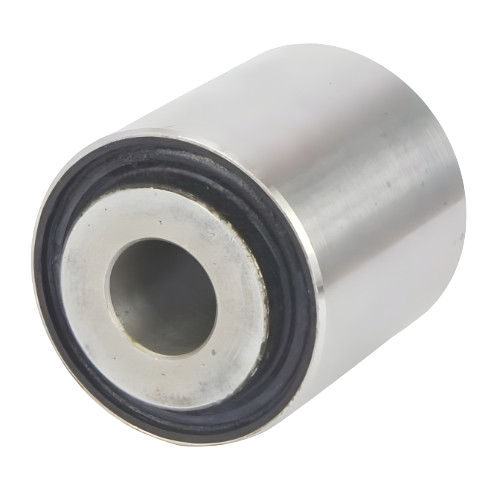

Suspension Bush - Inner Dia 25mm, Outer Dia 50mm, L 65mm - IOS255
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TB45-45 | TB45-60 | ECC1165-45 | ECC1165-45-45 | ECC1165-60 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 25mm | 25mm | 25.4mm | 25.4mm | 25.4mm |
| Deflection | 1.2 | 1.2 | |||
| Overall Height | 25mm | 25mm | |||
| Size Range | 11-25mm | 11-25mm | 26-50mm | 26-50mm | 26-50mm |
A. The IOS255 has a bore diameter (A) of 25 mm, outer dimension B of 50 mm, dimension C of 65 mm, and dimension D of 68 mm.
A. No. The rubber-to-metal bonded construction requires no lubrication and is maintenance free across its service life.
A. The bush may be loaded in shear, compression, or a combination of both, making it suitable for pivot bearings, mechanical linkages, and mount applications where multi-directional movement occurs.
A. Documented applications include cab mounts, engine mounts, pivot bearings, and mechanical linkages across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence sectors.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, plus additional and custom sizes, are available on request.
A. Related family sizes include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025, and IOS10273840.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
