Suspension Bush - Inner Dia 24mm, Outer Dia 75.3mm, L 51mm - ECC2174-75

Precision vibration isolation begins with choosing the correct hardness for the load, and this 8x8mm Male Flat Buffer in 45 Shore A rubber is engineered for exactly that priority. Rated to a maximum load of 7.5 kg with a deflection of 2.0 mm, SKU 0808MFB06-45 is the softest grade in the 8x8mm flat buffer family, making it the correct selection wherever maximum energy absorption and sensitive isolation take precedence over load restraint. The 45 Shore A rubber compound delivers greater compliance under load than harder grades, absorbing and dissipating impact energy from secondary moving components rather than transmitting it to surrounding structures. This makes the mount particularly well suited to lightweight equipment where shock events are low in amplitude and where operator comfort or protection of precision components matters. Rubber-to-metal bonded construction ensures a secure, durable assembly, and the male M3 thread (6 mm stud length) allows straightforward installation with no specialist tooling. Typical applications include construction equipment, agricultural machinery, industrial automation, commercial vehicles, elevators, and power generation equipment where the installed mass is light and lower-frequency vibration isolation is the primary engineering requirement. In these settings the soft grade deflects more freely under load, breaking the transmission path between vibrating and stationary structures. Custom options, including oil-resistant and high-temperature rubber compounds and stainless steel metalwork. Are available on request. This buffer is the entry point in the 8x8mm Male Flat Buffer range.

Eccentric Bushes are manufactured from two metal sleeves which are eccentrically offset in the radial direction. This offset allows for a larger proportion of the rubber section to be orientated in the normal direction of load, allowing for relatively large radial deflections to be achieved, whilst maintaining excellent motional control characteristics.

Eccentric bushes are robust in design, fail-safe, and suitable for ROPS and FOPS cabs (subject to approval).

Advantages:

• Excellent Vibration Reduction
• Robust Design – Ideal for Transit Shock
• ROPS & FOPS
• Fail Safe

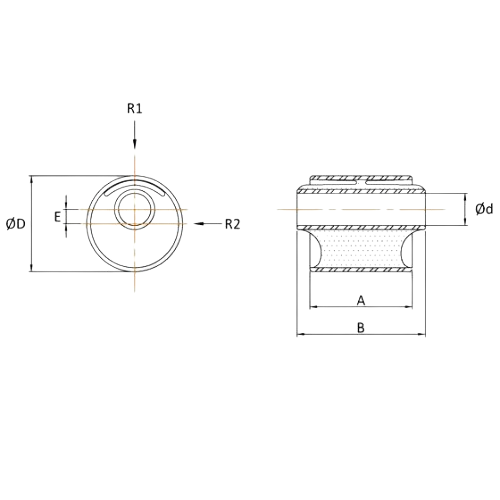

Options Include (Refer to the diagram in the product image):

• Inner Diameter (d): 16-43.7mm
• Outer Diameter (D): 47.6-101.6mm
• Rubber Body Length (A): 50.8-63.5mm
• Overall Length (B): 63.5-72.4mm
• Sleeve Projection (E): 7.1 – 9.5mm
• Radial Stiffness (R1): 675-1300 N/mm
• Max Deflection: 2-3.5mm
• Max Load: 140-465 Kg
• Axial Stiffness (R2): 1350-2200 N/mm

Applications:

• Cab Mountings - Used under cab structures to absorb vibration, improve operator comfort, and allow smooth, controlled cab tilting movement.
• Engine Mountings -Fitted between engine and chassis to isolate vibration, reduce noise, and maintain stable engine alignment during operation.
• Earth Moving Vehicles - Used in boom pivots and chassis joints to cushion heavy impacts and stabilise machinery during demanding construction work.
• Agricultural Vehicles - Installed in tractor linkages and cab mounts to reduce vibration, improve ride comfort, and protect implements on rough terrain.

Key Feature:

• Covered by a 6-month warranty, ensuring dependable performance in demanding automotive and industrial operating conditions.
• Inner Diameter (d) 24mm and Outer Diameter (D) 75.3mm ensure precise fitment and controlled eccentric alignment.
• Rubber Body Length (A) 51mm and Overall Length (B) 70mm support stable installation and effective vibration isolation.
• Sleeve Projection Length (E) 10.5mm enables accurate positioning and secure load transfer across mounting interfaces.
• Eccentric inner sleeve design allows controlled offset adjustment, improving alignment in suspension and machinery mounting applications.
• Fully bonded rubber-to-metal construction supports radial, axial, and torsional movement under high dynamic loads.
• Maintenance-free design eliminates lubrication requirements, ensuring long-term durability in vehicle and industrial environments.
• Commonly used in engine mounts, cab mountings, and suspension systems to reduce vibration and noise transmission.
