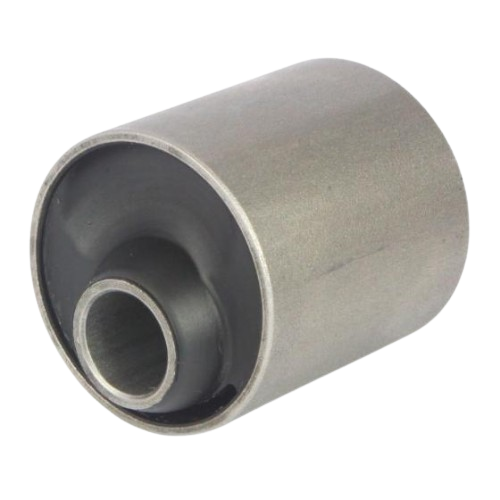

Suspension Bush - Inner Dia 16mm, Outer Dia 47.6mm, L 50.8mm - ECC1270-75

Designed to hold firm under heavy loading, the 16mm eccentric bush ECC1270-75-75 is a rubber-to-metal bonded inner-outer-sleeve bush at 75 Shore A, the firmest grade in this geometry, rated to carry loads up to 245 kg with a maximum deflection of just 2 mm. Where movement must be controlled and the mount must resist rather than yield, this grade is the correct specification. The rubber compound is bonded between inner and outer metal sleeves to deliver high durability under dynamic and repeated loading. Because the construction is rubber-to-metal bonded throughout, no lubrication is required and the bush is entirely maintenance free, reducing servicing demands in demanding environments. The firm 75 Shore A compound is engineered to absorb shock and impact without permitting the structural displacement that softer grades allow, making it the appropriate choice wherever an assembly must be positively restrained whilst still isolating transmitted force. With a stiffness of 675 N/mm in the primary axis and 1350 N/mm in the secondary (F2) axis, ECC1270-75-75 is suited to pivot bearings, cab mounts, mechanical linkages, and engine mounts in high-load duty cycles, as well as applications in construction and off-highway machinery, military and defence, marine, and railway and mass transit equipment. The eccentric geometry permits angular adjustment on installation, extending fitment flexibility without compromising load rating. Key dimensions are: A 16 mm, B 47.6 mm, C 50.8 mm, D 63.5 mm, E 7.1 mm.

Eccentric Bushes are manufactured from two metal sleeves which are eccentrically offset in the radial direction. This offset allows for a larger proportion of the rubber section to be orientated in the normal direction of load, allowing for relatively large radial deflections to be achieved, whilst maintaining excellent motional control characteristics.

Eccentric bushes are robust in design, fail-safe, and suitable for ROPS and FOPS cabs (subject to approval).

Advantages:

• Excellent Vibration Reduction
• Robust Design – Ideal for Transit Shock
• ROPS & FOPS
• Fail Safe

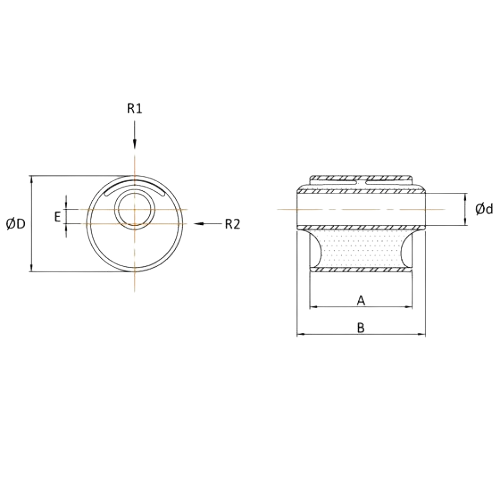

Options Include (Refer to the diagram in the product image):

• Inner Diameter (d): 16-43.7mm
• Outer Diameter (D): 47.6-101.6mm
• Rubber Body Length (A): 50.8-63.5mm
• Overall Length (B): 63.5-72.4mm
• Sleeve Projection (E): 7.1 – 9.5mm
• Radial Stiffness (R1): 675-1300 N/mm
• Max Deflection: 2-3.5mm
• Max Load: 140-465 Kg
• Axial Stiffness (R2): 1350-2200 N/mm

Applications:

• Cab Mountings - Used under cab structures to absorb vibration, improve operator comfort, and allow smooth, controlled cab tilting movement.
• Engine Mountings -Fitted between engine and chassis to isolate vibration, reduce noise, and maintain stable engine alignment during operation.
• Earth Moving Vehicles - Used in boom pivots and chassis joints to cushion heavy impacts and stabilise machinery during demanding construction work.
• Agricultural Vehicles - Installed in tractor linkages and cab mounts to reduce vibration, improve ride comfort, and protect implements on rough terrain.

Key Feature:

• Covered by a 6-month warranty, ensuring dependable performance in demanding automotive and industrial operating conditions.
• Inner Diameter (d) 16mm and Outer Diameter (D) 47.6mm ensure precise fitment and controlled eccentric alignment.
• Rubber Body Length (A) 50.8mm and Overall Length (B) 63.5mm support stable installation and effective vibration isolation.
• Sleeve Projection Length (E) 7.1mm enables accurate positioning and secure load transfer across mounting interfaces.
• Eccentric inner sleeve design allows controlled offset adjustment, improving alignment in suspension and machinery mounting applications.
• Fully bonded rubber-to-metal construction supports radial, axial, and torsional movement under high dynamic loads.
• Maintenance-free design eliminates lubrication requirements, ensuring long-term durability in vehicle and industrial environments.
• Commonly used in engine mounts, cab mountings, and suspension systems to reduce vibration and noise transmission.
