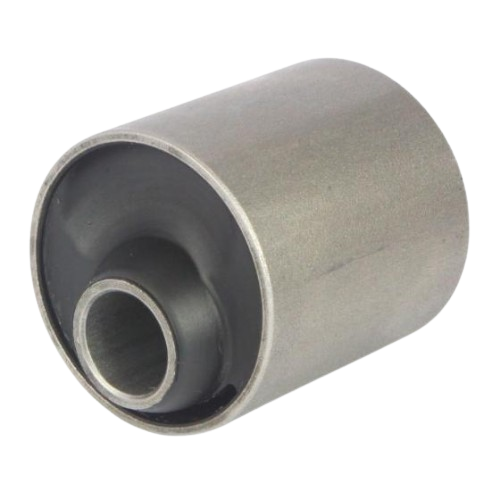

Suspension Bush - Inner Dia 24mm, Outer Dia 75.3mm, L 51mm - ECC2174-60

Engineered for the broad middle ground of general machinery mounting, the ECC2174-60-60 is a 24mm eccentric bush rated to a maximum load of 325 kg with a stiffness of 750 N/mm, making it well suited to moderate-load applications where both vibration isolation and structural support must be balanced. At 60 Shore A, this medium-hardness grade sits at the upper end of the standard range, delivering controlled deflection, up to 3.5 mm in the F1 axis. Without compromising the load-carrying capacity that heavier equipment demands. Constructed using a rubber-bonded inner-to-outer metal sleeve configuration, the bush requires no lubrication and is fully maintenance free, ensuring prolonged service life under dynamic loading conditions. The rubber-to-metal bonded build resists fatigue across shear, compression, and combined load orientations, protecting surrounding structures while improving operator comfort. Key dimensions are: A 24 mm, B 75.3 mm, C 51.0 mm, D 70 mm, E 10.5 mm; F2 stiffness is 600 N/mm. The 60 Shore A grade is the practical choice for mainstream industrial environments, including construction and off-highway machinery, power generation equipment, agricultural plant, cab mounts, mechanical linkages, and marine applications. Wherever moderate dynamic loads must be managed without the high deflection associated with softer grades. Its load and stiffness figures make it appropriate for pivot bearings and engine mounts operating under sustained, moderate duty cycles. This bush is part of a wider eccentric and spherical bush family.

Eccentric Bushes are manufactured from two metal sleeves which are eccentrically offset in the radial direction. This offset allows for a larger proportion of the rubber section to be orientated in the normal direction of load, allowing for relatively large radial deflections to be achieved, whilst maintaining excellent motional control characteristics.

Eccentric bushes are robust in design, fail-safe, and suitable for ROPS and FOPS cabs (subject to approval).

Advantages:

• Excellent Vibration Reduction
• Robust Design – Ideal for Transit Shock
• ROPS & FOPS
• Fail Safe

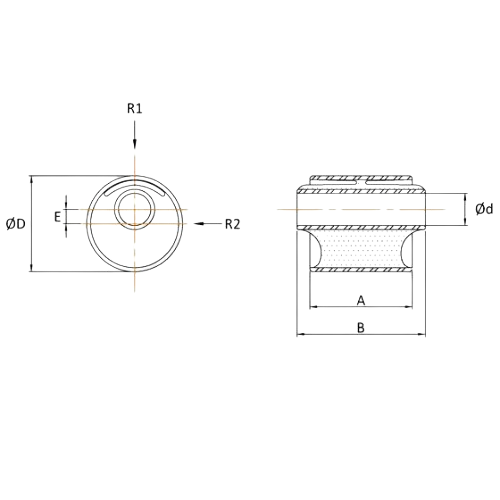

Options Include (Refer to the diagram in the product image):

• Inner Diameter (d): 16-43.7mm
• Outer Diameter (D): 47.6-101.6mm
• Rubber Body Length (A): 50.8-63.5mm
• Overall Length (B): 63.5-72.4mm
• Sleeve Projection (E): 7.1 – 9.5mm
• Radial Stiffness (R1): 675-1300 N/mm
• Max Deflection: 2-3.5mm
• Max Load: 140-465 Kg
• Axial Stiffness (R2): 1350-2200 N/mm

Applications:

• Cab Mountings - Used under cab structures to absorb vibration, improve operator comfort, and allow smooth, controlled cab tilting movement.
• Engine Mountings -Fitted between engine and chassis to isolate vibration, reduce noise, and maintain stable engine alignment during operation.
• Earth Moving Vehicles - Used in boom pivots and chassis joints to cushion heavy impacts and stabilise machinery during demanding construction work.
• Agricultural Vehicles - Installed in tractor linkages and cab mounts to reduce vibration, improve ride comfort, and protect implements on rough terrain.

Key Feature:

• Covered by a 6-month warranty, ensuring dependable performance in demanding automotive and industrial operating conditions.
• Inner Diameter (d) 24mm and Outer Diameter (D) 75.3mm ensure precise fitment and controlled eccentric alignment.
• Rubber Body Length (A) 51mm and Overall Length (B) 70mm support stable installation and effective vibration isolation.
• Sleeve Projection Length (E) 10.5mm enables accurate positioning and secure load transfer across mounting interfaces.
• Eccentric inner sleeve design allows controlled offset adjustment, improving alignment in suspension and machinery mounting applications.
• Fully bonded rubber-to-metal construction supports radial, axial, and torsional movement under high dynamic loads.
• Maintenance-free design eliminates lubrication requirements, ensuring long-term durability in vehicle and industrial environments.
• Commonly used in engine mounts, cab mountings, and suspension systems to reduce vibration and noise transmission.
