Product Number: TA311
Variations

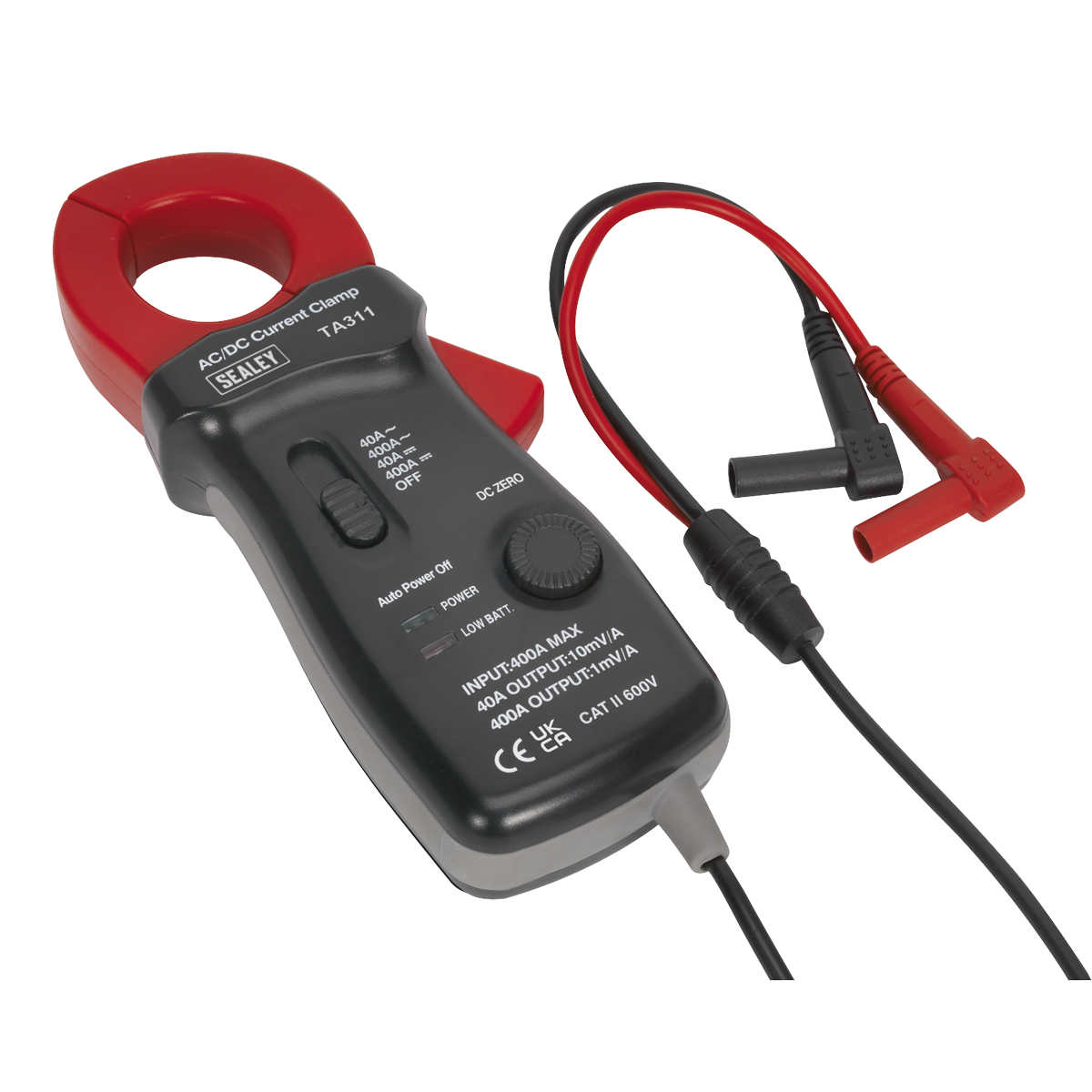

Measuring current draw from vehicle components without breaking into the circuit is a common challenge during automotive electrical diagnostics. The Sealey TA311 Current Clamp resolves this by clamping around a conductor or wire bundle and measuring both AC and DC current accurately without the need to disconnect anything. It offers two measurement ranges 40A and 400A making it suitable for both low-current sensors and higher-draw components such as starter motors or cooling fans. The 28mm clamp jaw is sized to accommodate wire bundles, and the unit connects to a standard multimeter via 4mm banana connectors (red and black). It can also be used with an oscilloscope using a suitable BNC conversion adaptor. Powered by a 9V battery (supplied), the TA311 features a red LED low battery indicator and is rated for operating temperatures between 0°C and 50°C. The unit weighs 240g and is supplied in a storage pouch. On the 40A range the output is 10mV/A, compatible with the 200mV or 400mV range of a multimeter. On the 400A range the output is 1mV/A, compatible with the 400mV range.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TA311 |
|---|---|
| Brand | Sealey |
| Nett Weight | 0.36kg |
| TA311 Captured Conductor Size | Ø20mm maximum |
| Low Battery Indicator | LED red |
| Operating Temperature | 0°C to 50°C. |
| Storage Temperature | -15°C to 50°C. |
| Battery Type | 9V DC |
| Typical Battery Life | 80hrs (alkaline) |
| Weight | 240g |
| TA311 Dimensions (H x W x D) | 175mm x 70mm x 38mm |
| Output Connection | Banana plugs (red & black) |
|
40A (output: 10mV/A):DC or rms AC for 200mV or 400mV range of the multimeter.
|
|
|
400A (output: 1mV/A):DC or rms AC for 400mV range of the multimeter.
|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey TM105 Professional Auto-Ranging Digital Clamp Metre NCVD 6-Function
£69.72
£68.35
2% OFF
Free delivery in UK Mainland
|
Draper 41822 Automotive Digital Multimeter, 1 x Temperature Probe, 1 x Inductive Clamp
£72.92
£71.49
2% OFF
Free delivery in UK Mainland
|
Sealey TA305 AC/DC Clamp Metre & Multimeter CAT III 600V
£97.42
£95.51
2% OFF
Free delivery in UK Mainland
|
Draper 41967 Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function
£75.39
£73.91
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | TM105 | TA310 | 41822 | TA305 | 41967 | 41864 | 41911 |
A. The TA311 measures both AC and DC current without breaking into the circuit. It offers a 40A range (output: 10mV/A) and a 400A range (output: 1mV/A), both measuring DC or rms AC current.
A. On the 40A setting, use the 200mV or 400mV range of your multimeter. On the 400A setting, use the 400mV range. The TA311 connects via 4mm banana connectors (red and black).
A. The TA311 has a Ø28mm clamp with a maximum captured conductor size of Ø20mm, making it suitable for testing wire bundles.
A. Yes. The TA311 can be used with an oscilloscope using a suitable BNC conversion adaptor, which is not supplied.
A. The TA311 is powered by a 9V DC battery, which is supplied with the unit. Typical battery life is 80 hours using an alkaline battery. A red LED indicator alerts you when the battery is low.
A. The TA311 measures 175mm x 70mm x 38mm (H x W x D) and weighs 240g.
A. Yes. The TA310 is an alternative version in the same product family. Please check the TA310 listing or contact Parts for Machines for details on how its specification differs.
A. The MM405, TA305, and TM105 are listed as alternative products that perform a similar function. Please check those listings or contact Parts for Machines to compare specifications.
A. The TA311 has an operating temperature range of 0°C to 50°C and a storage temperature range of -15°C to 50°C.
