Product Number: TA305

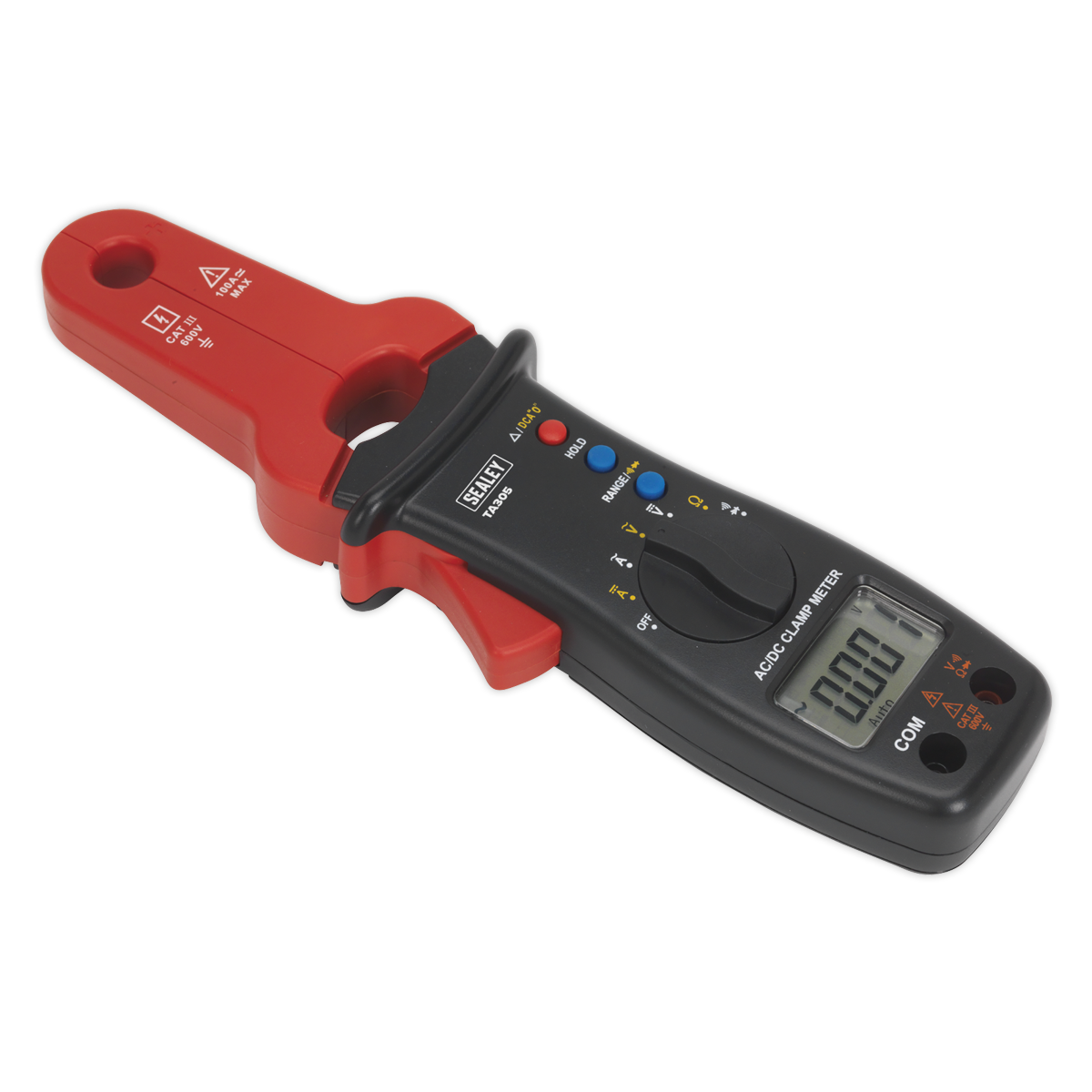

Diagnosing electrical faults on vehicle components often means measuring current draw without breaking into a circuit. The Sealey TA305 AC/DC Clamp Metre and Multimeter is designed for the automotive electrician and allows you to measure current draw from vehicle components in situ using its 10mm clamp jaw. Conforming to EN 61010 CAT III 600V, it measures AC and DC voltage, AC and DC current up to 100A, resistance, audible continuity, and performs diode tests. AC voltage accuracy is ±1.2% at 400mV and 4V ranges, and ±1.5% at 40V, 400V and 600V ranges. DC voltage accuracy is ±0.8% at 400mV and ±1.0% at 4V, 40V, 400V and 600V ranges. AC and DC current accuracy is ±2.5% at both 40A and 100A ranges. Input impedance is 10MΩ and frequency range is 40Hz to 400Hz. Supplied in a pouch.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TA305 |
|---|---|
| Brand | Sealey |
| Nett Weight | 185g |
| Jaw Opening Capacity | 10mm |
| Maximum Measurable Conductor | Ø10mm |
| Tach (rpm) | No |
| Dwell | No |
| AC Voltage (Accuracy) | 400mV, 4V (±1.2%), 40V, 400V, 600V (±1.5%) |
| DC Voltage (Accuracy) | 400mV (±0.8%), 4V, 40V, 400V, 600V (±1.0%) |
| AC Current (Accuracy) | 40A, 100A (±2.5%) |
| DC Current (Accuracy) | 40A, 100A (±2.5%) |
| Capacitance | No |
| Input Impedance | 10MΩ |
| Frequency Range | 40Hz-400Hz |
| Duty Cycle | No |
| Pulse Width | No |
| Resistance | 400Ω (±1.2%), 4kΩ, 40kΩ, 400kΩ (±1.0%), 4MΩ (±1.2%), 40MΩ (±1.5%) |
| Continuity | <50Ω |
| Temperature | No |
| IR Temperature | No |
| Insulation Test | No |
| Diode Test | Yes |
| Transistor Test | No |
| Back Light | No |
| Bar Graph Display | No |
| Data Hold | Yes |
| Auto-Ranging | Yes |
| Inductive Coupler | No |
| PC Interface | No |
| Digits Height | 11mm |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Batteries (Supplied) | 2 x 1.5V |
| Hi-Impact Case | No |
| Size (L x W x D) | 226 x 71 x 38mm |
| Weight | 185g |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey MM102 Auto-Ranging Digital Multimeter CAT IV 600V
£62.83
£61.60
2% OFF
Free delivery in UK Mainland
|
||||||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MM102 | MM18 | 02590 | 16232 | 32076 | 92433 | 30629 |
A. The TA305 measures AC and DC voltage, AC and DC current, resistance, and performs audible continuity and diode tests.
A. The TA305 measures AC and DC current up to 100A, with accuracy of ±2.5% on both the 40A and 100A ranges.
A. It conforms to EN 61010 CAT III 600V.
A. The jaw opening capacity is 10mm, accommodating conductors up to Ø10mm.
A. The input impedance is 10MΩ.
A. The TA305 operates over a frequency range of 40Hz to 400Hz.
A. No. The TA305 does not feature capacitance measurement, dwell, or tachometer (RPM) functions.
A. The TA305 is supplied in a pouch.
A. Yes, alternative products that perform a similar function include the MM01, MM03, MM102, and MM18. Please check each product listing for their individual specifications to find the best match for your needs.
