Product Number: MM19

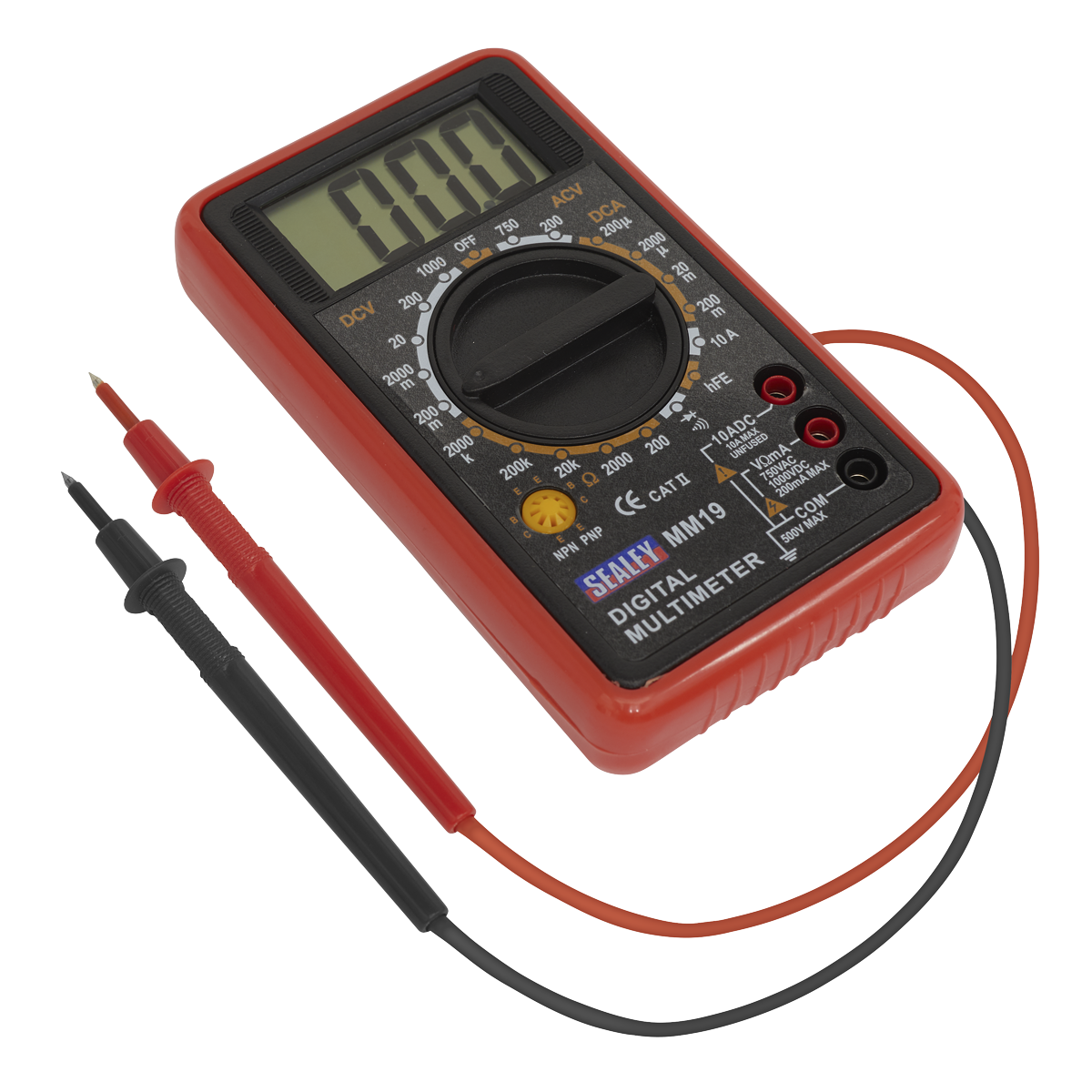

Electrical faults can be time-consuming to diagnose without a reliable, easy-to-read metre that covers the measurements you actually need. The Sealey MM19 is a high-quality general-purpose 7-function digital multimeter with a large 46 x 25mm LCD display that makes readings quick and clear to take. It measures AC voltage up to 750V and DC voltage up to 1000V, DC current from 200µA up to 10A, and resistance up to 2000kΩ. It also features audible continuity testing, diode testing with forward voltage drop measurement, and transistor verification via hFE at 10µA and 3Vce. Test leads are supplied in the box, so you can get straight to work. AC voltage accuracy is ±2%, DC voltage accuracy is ±1.5% across most ranges (±1.8% at 1000V), and resistance accuracy is ±1.8% across most ranges, making it a dependable choice for automotive, workshop, and general electrical diagnostics.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | MM19 |
|---|---|
| Brand | Sealey |
| Nett Weight | 240g |
| AC Voltage (Accuracy) | 200V, 750V (±2%) |
| DC Voltage (Accuracy) | 200mV, 2000mV, 20V, 200V (±1.5%), 1000V (±1.8%) |
| AC Current (Accuracy) | No |
| DC Current (Accuracy) | 200µA, 2000µA, 20mA (±2%), 200mA (±2.2%), 10A (±2%) |
| Resistance (Accuracy) | 200Ω, 2000Ω, 20kΩ, 200kΩ (±1.8%), 2000kΩ (±2%) |
| Capacitance (Accuracy) | No |
| Temperature (Accuracy) | No |
| Frequency (Accuracy) | No |
| Duty Cycle | No |
| Continuity Audible | Yes |
| Diode Test | Yes (Forward Voltage Drop) |
| Transistor Test | Yes (hFE @ 10µA & 3Vce) |
| Hi-Impact Rubber Case | Yes |
| Digits x Height | 3.5 x 22mm |
| Low Battery Indicator | No |
| Battery (Supplied) | 1 x 9V |
| Information | - |
| Size (L x W x D) | 130 x 70 x 14mm |
| Weight | 240g |
| Conformity | IEC 1010 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey MM102 Auto-Ranging Digital Multimeter CAT IV 600V
£62.83
£61.60
2% OFF
Free delivery in UK Mainland
|
Draper 41967 Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function
£75.39
£73.91
2% OFF
Free delivery in UK Mainland
|
||||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MM102 | MM18 | MM20HV | TM100 | 41967 | 02590 | 41820 | 16232 |
A. The MM19 measures AC voltage, DC voltage, DC current, resistance, audible continuity, diode forward voltage drop, and transistor hFE - seven functions in total.
A. The MM19 measures AC voltage on 200V and 750V ranges, with an accuracy of ±2%.
A. The MM19 measures DC voltage up to 1000V across multiple ranges, with ±1.5% accuracy on most ranges and ±1.8% at the 1000V range.
A. Yes, the MM19 includes an audible continuity function.
A. No, the MM19 does not measure capacitance, temperature, or frequency. Please refer to the similar alternatives MM01, MM03, MM102, or MM18 if you require those functions.
A. Yes, test leads are supplied with the MM19.
A. The MM19 features a large 46 x 25mm LCD display for clear, easy reading.
A. The MM19 measures DC current on 200µA, 2000µA, 20mA, 200mA, and 10A ranges, with accuracy between ±2% and ±2.2% depending on range.
A. The MM01, MM03, MM102, and MM18 are alternative multimeters that may suit different requirements. Please refer to those individual listings for full specification details.
