Product Number: TA310
Variations

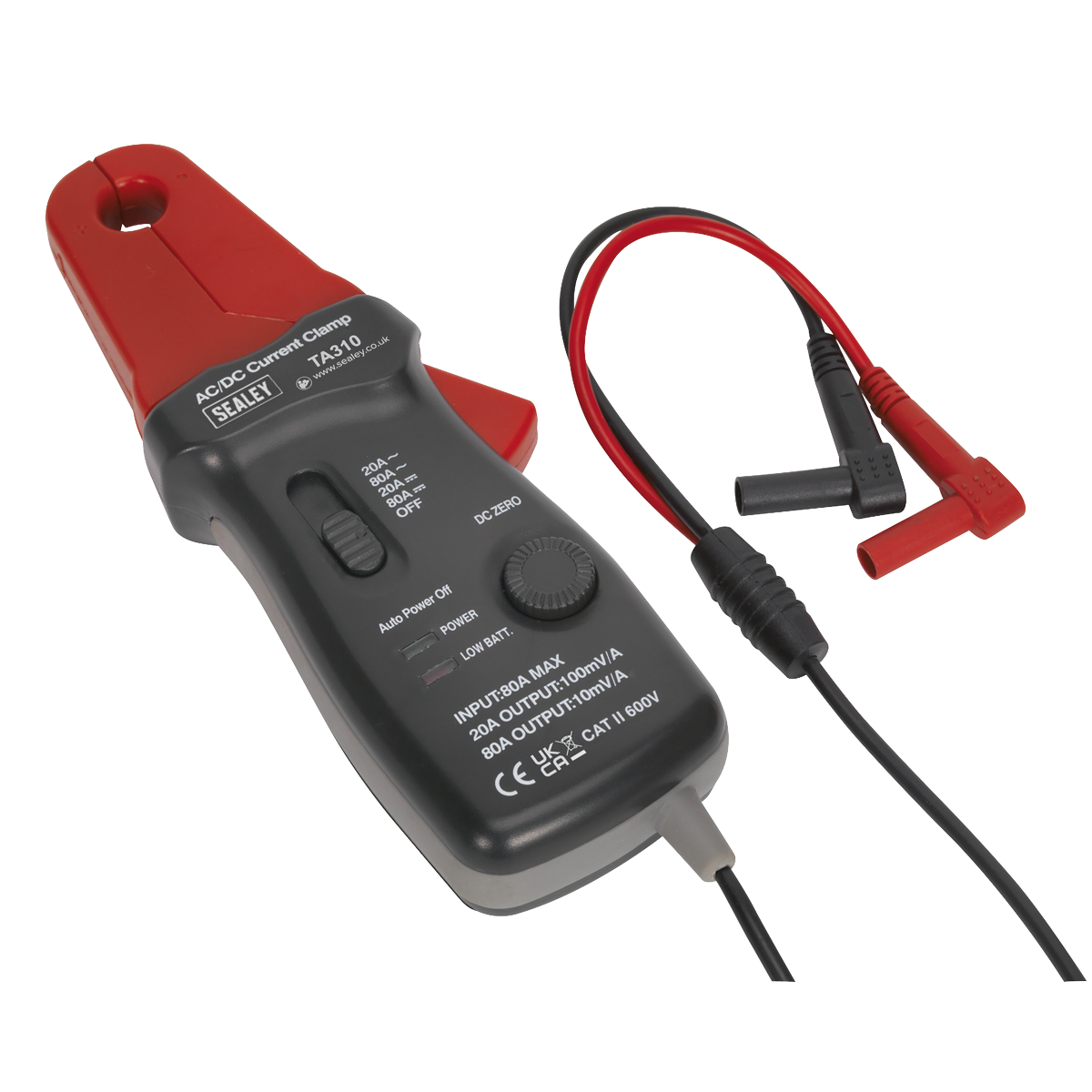

Diagnosing electrical faults on vehicles often means measuring current draw without the hassle of breaking into a circuit. The Sealey TA310 Current Clamp solves this by clamping around individual wires to measure both AC and DC current accurately and safely. With a 12mm clamp jaw suited to individual vehicle wiring, it offers two measurement ranges 20A and 80A giving you the flexibility to test a wide range of vehicle components in situ. It connects directly to a standard multimeter via 4mm banana connectors, or can be used with an oscilloscope with a suitable BNC conversion adaptor. A 9V battery is supplied, with a typical alkaline battery life of 80 hours, and an LED indicator warns you when the battery is running low. Operating temperature range is 0°C to 50°C. Supplied in a protective storage pouch. Dimensions: 190mm x 70mm x 38mm. Weight: 240g.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TA310 |
|---|---|
| Brand | Sealey |
| Nett Weight | 0.31kg |
| TA310 Captured Conductor Size | Ø8mm maximum |
| Low Battery Indicator | LED red |
| Operating Temperature | 0°C to 50°C. |
| Storage Temperature | -15°C to 50°C. |
| Battery Type | 9V DC |
| Typical Battery Life | 80hrs (alkaline) |
| Weight | 240g |
| TA310 Dimensions (H x W x D) | 190mm x 70mm x 38mm |
| Output Connection | Banana plugs (red & black) |
|
20A (output: 100mV/A=1mV/10mA):<2A use DC or rms AC for 200mV range of the multimeter,>2A use DC or rms AC for 2V range of the multimeter.
|
|
|
80A (output: 10mV/A):DC or rms AC for 200mV range of the multimeter.
|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey TM105 Professional Auto-Ranging Digital Clamp Metre NCVD 6-Function
£69.72
£68.35
2% OFF
Free delivery in UK Mainland
|
Draper 41822 Automotive Digital Multimeter, 1 x Temperature Probe, 1 x Inductive Clamp
£72.92
£71.49
2% OFF
Free delivery in UK Mainland
|
Sealey TA305 AC/DC Clamp Metre & Multimeter CAT III 600V
£97.42
£95.51
2% OFF
Free delivery in UK Mainland
|
Draper 41967 Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function
£75.39
£73.91
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | TM105 | TA311 | 41822 | TA305 | 41967 | 41864 | 41911 |
A. The TA310 offers two ranges - 20A and 80A - allowing accurate measurement across a wide variety of vehicle components and circuits.
A. Yes. The TA310 is suitable for measuring both AC and DC current without breaking into the circuit.
A. The captured conductor size is Ø8mm maximum, making it well suited to individual vehicle wires.
A. It is fitted with 4mm banana connectors (red and black) for direct connection to a standard multimeter. For the 20A range, use the DC or rms AC 200mV range for readings below 2A, or the 2V range for readings above 2A. For the 80A range, use the DC or rms AC 200mV range.
A. Yes. The TA310 can be used with an oscilloscope using a suitable BNC conversion adaptor, which is not supplied.
A. It is powered by a 9V DC battery, which is supplied. Typical battery life is 80 hours using an alkaline battery. An LED red indicator alerts you when the battery is low.
A. Alternative products that perform a similar function include the MM405, TA305, and TM105. Contact Parts for Machines for guidance on which best suits your application.
A. The storage temperature range is -15°C to 50°C. Operating temperature range is 0°C to 50°C.
