Product Number: 41864

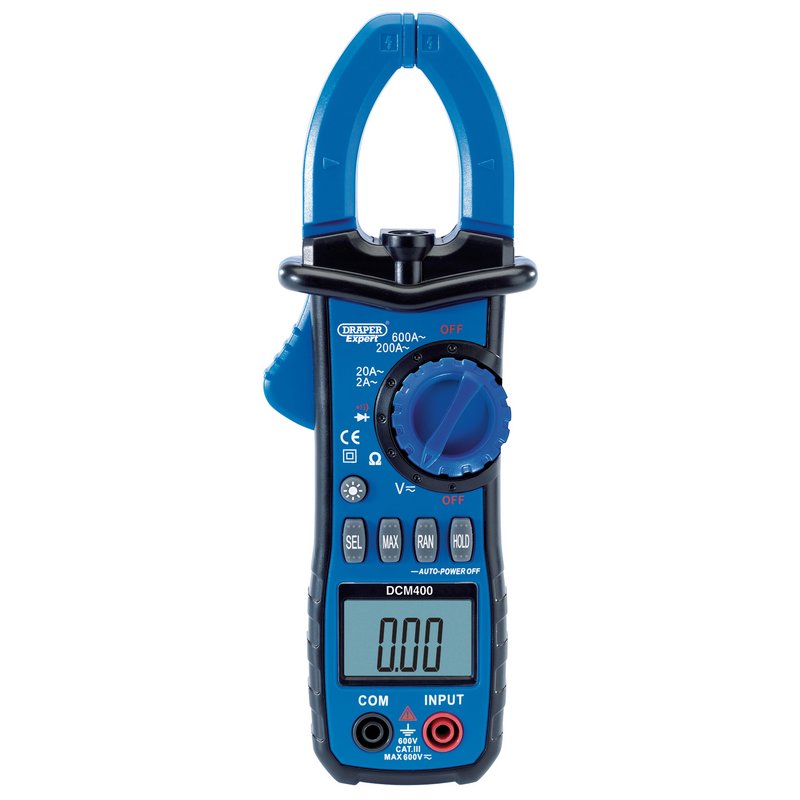

Accurate electrical diagnosis demands a tool capable of handling a wide range of test functions without repeated manual switching. The Draper Expert 41864 manual-ranging digital clamp meter addresses this by combining auto and manual ranging in a single instrument, allowing technicians to select the precision that the task requires. The clamp meter measures AC voltage across five ranges (200mV, 2V, 20V, 200V and 600V), DC voltage across the same five ranges, and AC current at 2A, 20A, 200A and 600A. Resistance measurement covers six ranges from 200Ω up to 20MΩ. Beyond these core electrical measurements, the instrument also performs diode and continuity testing, capacitance measurement, frequency, duty cycle and temperature testing, making it a genuinely versatile diagnostic tool for workshop and site use. The jaw opens to a maximum diameter of 36mm to accommodate most conductor sizes encountered in automotive and light industrial environments. A backlit LCD screen with linear bar graph function ensures clear readings in low-light conditions, and a built-in inspection light adds further practicality in confined spaces. Auto power off protects battery life. The unit weighs approximately 480g and measures 228mm × 156mm × 62mm. Supplied complete with test leads, temperature probe, protective case and three AAA batteries, the 41864 is ready to use from the moment it arrives. Expert Quality designation reflects Draper's positioning of this instrument within their professional-grade range.
Expert Quality, auto and manual ranging clamp meter capable of voltage, current, resistance, diode and continuity testing. Maximum jaw - opening diameter of 36mm, backlit LCD screen, auto power off and a useful inspection light. Supplied with test leads and a case.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| AC Amps | 2A/20A/200A/600A |
|---|---|
| AC Current | 2A/20A/200A/600A |
| AC Voltage | 200mV/2V/20V/200V/600V |
| Automatic Power Off | Yes |
| Battery | 3 x AAA (not supplied) |
| Capacitance | N/A |
| DC Current | N/A |
| DC Voltage | 200mV/2V/20V/200V/600V |
| Diode on/off Test | Yes |
| Dimensions | 228mm x 156mm x 62mm |
| Duty Ratio | Yes |
| Dwell | N/A |
| Frequency | N/A |
| Resistance (Ohms) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
| Symbol Unit Data Hold | Yes |
| TACH | N/A |
| Temperature Range | N/A |
| Weight | 480g (approx.) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
90314 | Draper 90314 Crocodile Clips, 400 Series | 1 Unit |
£19.30
£18.92
|
Add |
41864ins.pdf
|
Open Now |
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 41911 | 41834 | TM105 | MM102 | TM100 | TA310 |
| Type | Multimeter | Multimeter | Multimeter | Multimeter | Multimeter | Multimeter |
| Brand | Sealey | Sealey | Sealey | Sealey | ||
| Length (mm) | 230 | 218 | 14 | 14 | 48 | 12 |
| Model No | TM105 | MM102 | TM100 | TA310 | ||
| Nett Weight | 345g | 160g | 260g | 0.31kg | ||
| Weight (kg) | 488g (approx) | 774g (approx.) | 345g | 160g | 260g | 31 |
A. The Draper Expert 41864 is capable of voltage (AC and DC), current (AC), resistance, diode testing, continuity testing, capacitance, frequency, duty cycle and temperature measurement, making it suitable for a broad range of diagnostic tasks in automotive and workshop environments.
A. AC current is measured across four ranges: 2A, 20A, 200A and 600A. These ranges are clamp-measured, meaning the conductor does not need to be broken to take a reading.
A. The clamp jaw opens to a maximum diameter of 36mm, accommodating most conductor and cable sizes encountered in automotive and light industrial applications.
A. Yes. The instrument features a backlit LCD screen with a linear bar graph function to aid readability in low-light or confined working conditions. A built-in inspection light provides additional illumination when working in tight spaces.
A. The unit is supplied with test leads, a temperature probe, a protective carry case and three AAA batteries.
A. The meter measures 228mm × 156mm × 62mm and weighs approximately 480g.
