Product Number: 41967

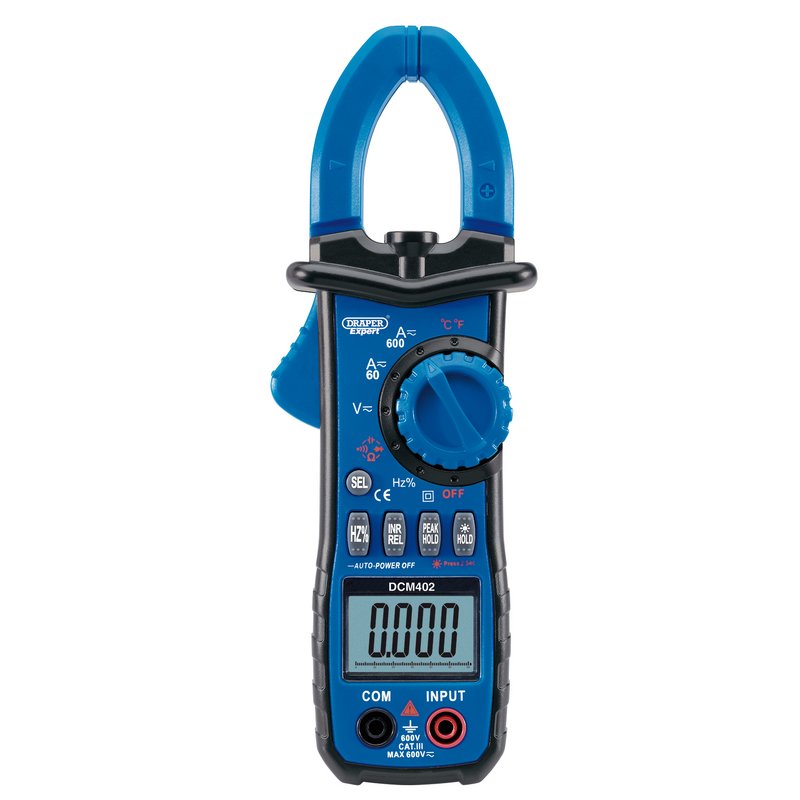

Accurate electrical diagnostics often demand a versatile instrument capable of handling a broad range of measurements without constant manual range adjustment. The Draper Expert 41967 auto-ranging digital clamp meter addresses this by offering both auto and manual ranging across an extensive set of electrical parameters, including voltage, current, resistance, diode testing, continuity, capacitance, frequency, duty cycle and temperature — making it a comprehensive single-instrument solution for workshop and site use. The clamp jaw accepts conductors up to 36mm in diameter, allowing non-contact AC and DC current measurement without breaking a circuit. AC and DC current ranges extend to 600A, AC voltage to 600V, and DC voltage to 600mV through 600V. Resistance measurement spans from 6000Ω up to 60MΩ across six ranges, while capacitance covers nine ranges up to 99.99mF. Frequency measurement reaches 10MHz, and temperature testing operates from -50°C to 1000°C via the included temperature probe. A backlit LCD screen ensures legibility in low-light conditions, complemented by a built-in inspection light. The linear bar graph function gives real-time analogue-style visual feedback alongside the digital readout, useful when monitoring fluctuating signals. Auto power-off helps conserve battery life during busy working sessions. The meter measures 228mm x 158mm x 58mm and weighs approximately 400g. It is supplied complete with test leads, temperature probe, carry case and three AAA batteries.
Expert Quality, auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw - opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe and a case.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| AC Amps | 60A/600A |
|---|---|
| AC Current | 60A/600A |
| AC Voltage | 6V/60V/600V |
| Automatic Power Off | Yes |
| Battery | 3 x AAA (not supplied) |
| Capacitance | 999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF |
| DC Amps | 60A/600A |
| DC Current | 60A/600A |
| DC Voltage | 600mV/6V/60V/600V |
| Diode on/off Test | Yes |
| Dimensions | 228mm x 158mm x 58mm |
| Duty Ratio | Yes |
| Dwell | N/A |
| Frequency | 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz |
| Resistance (Ohms) | 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
| Symbol Unit Data Hold | N/A |
| TACH | N/A |
| Temperature | -50 to 300ºC |
| Temperature Range | -50°C - 1000°C/-58°F - 1832°F |
| Weight | 400g (approx.) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
41967ins.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey TM105 Professional Auto-Ranging Digital Clamp Metre NCVD 6-Function
£69.72
£68.35
2% OFF
Free delivery in UK Mainland
|
Sealey TM103 Professional Auto-Ranging Digital Multimeter 11-Function
£81.06
£79.47
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | TM105 | TM103 | TM100 | 92433 | MM19 | 52320 |
A. The Draper Expert 41967 supports voltage, current, resistance, diode testing, continuity, capacitance, frequency, duty cycle and temperature measurement, in both auto and manual ranging modes.
A. The maximum jaw-opening diameter is 36mm, allowing non-contact current measurement on most standard cables and conductors without interrupting the circuit.
A. AC and DC current ranges are 60A and 600A. AC voltage ranges are 6V, 60V and 600V; DC voltage ranges are 600mV, 6V, 60V and 600V.
A. The temperature measurement range is -50°C to 1000°C (-58°F to 1832°F), using the supplied temperature probe.
A. The meter is supplied with test leads, a temperature probe and a carry case. Three AAA batteries are included as stated in the master product description.
A. Yes. The clamp meter features a backlit LCD screen for use in low-light conditions, auto power-off to conserve battery life, and a built-in inspection light.
