Product Number: HVLP05

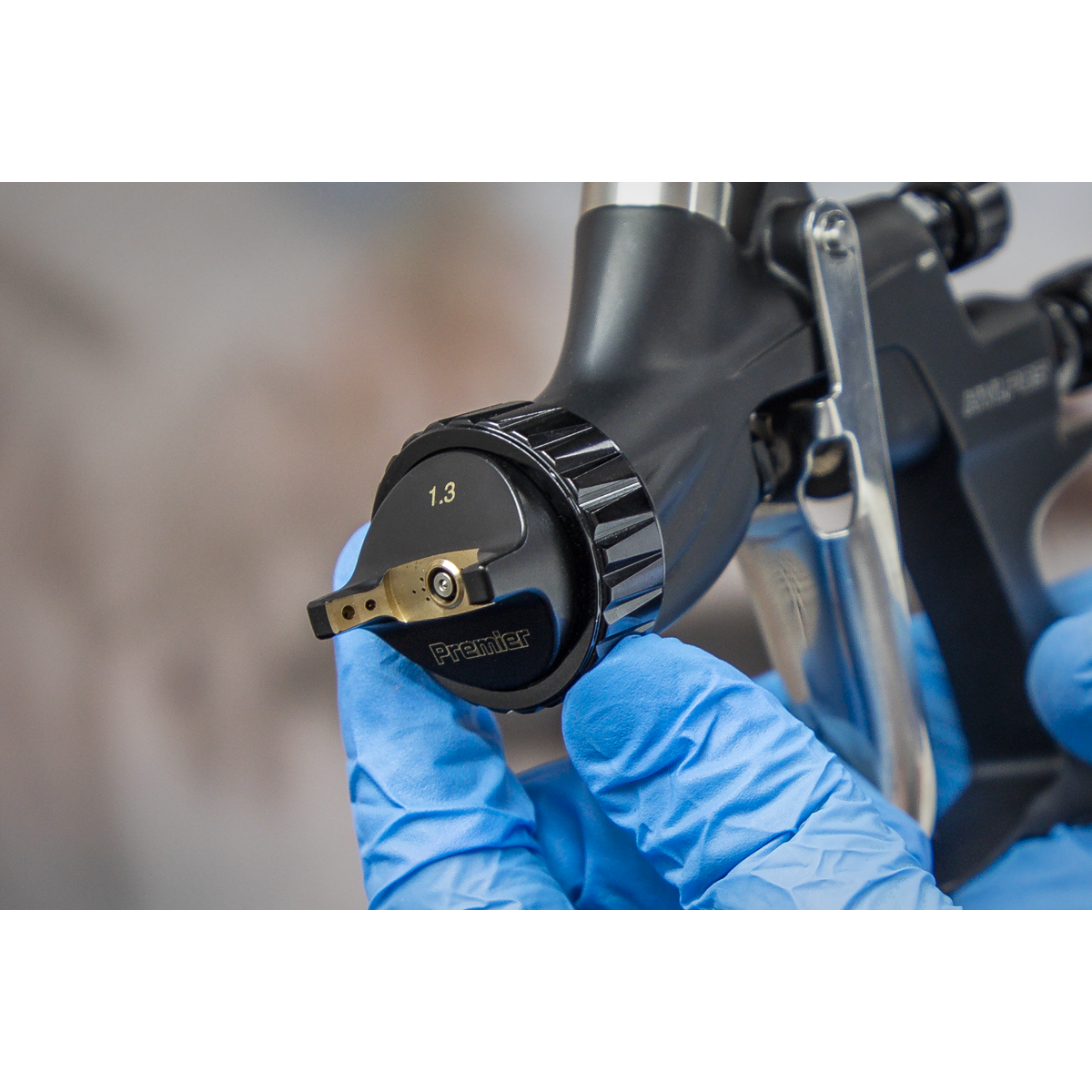

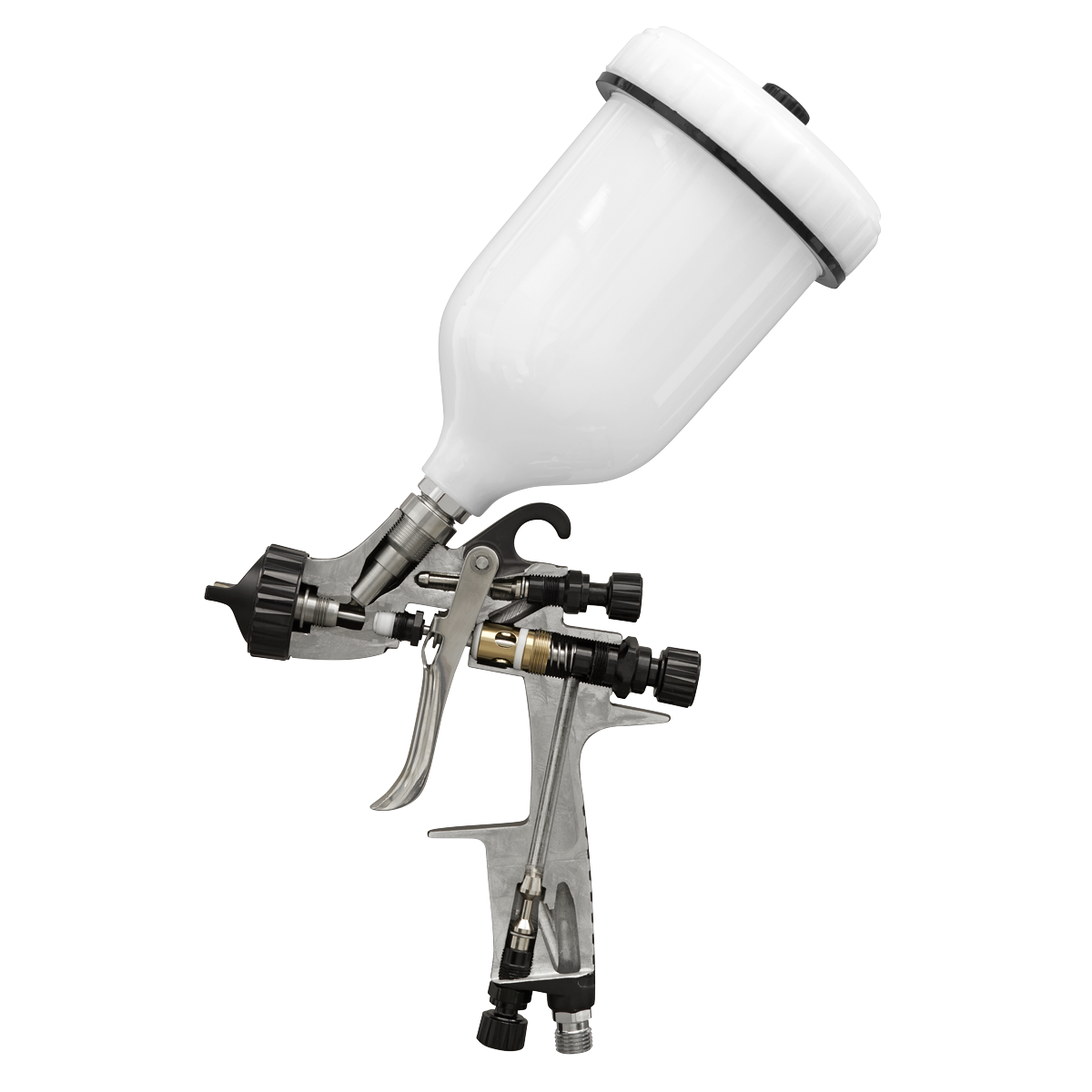

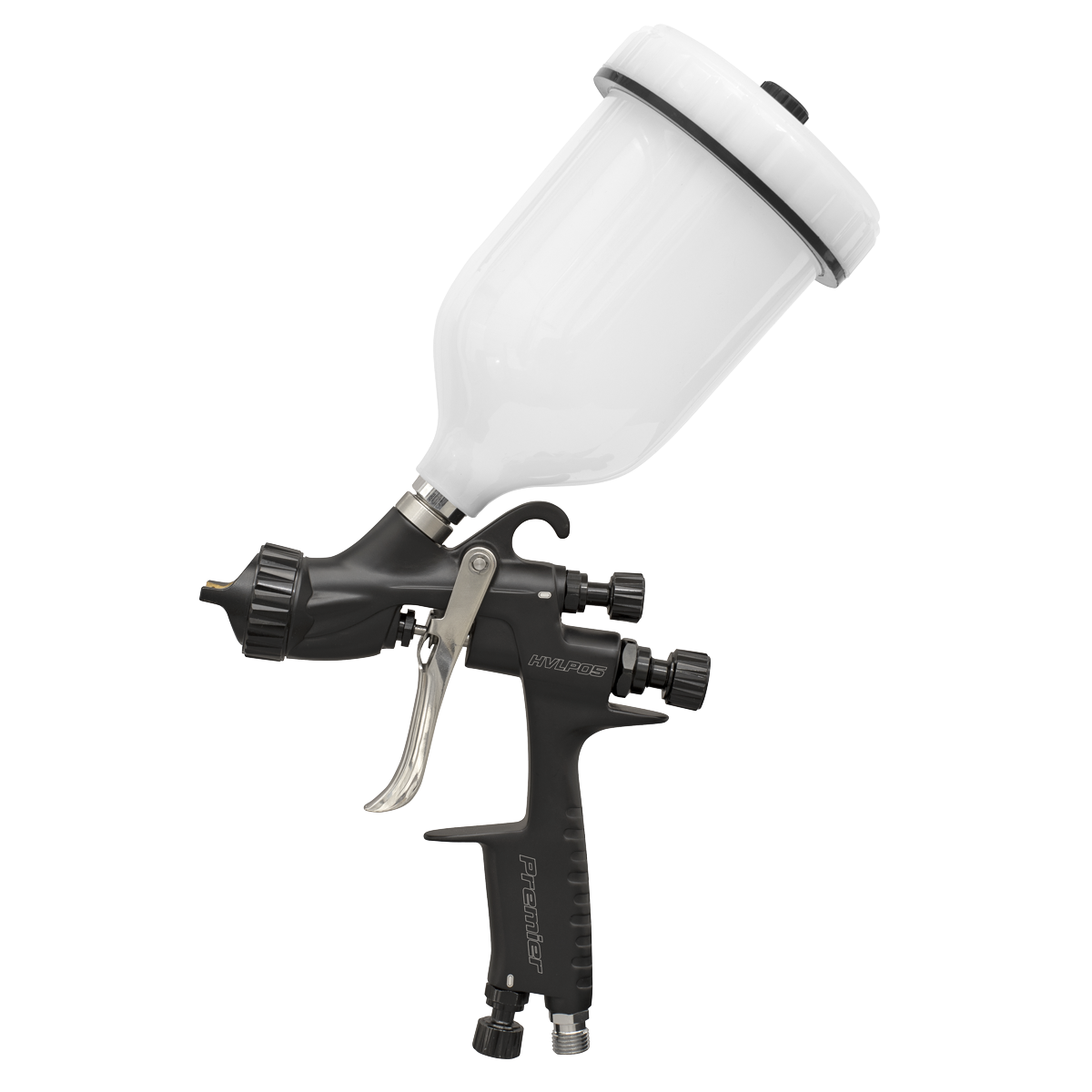

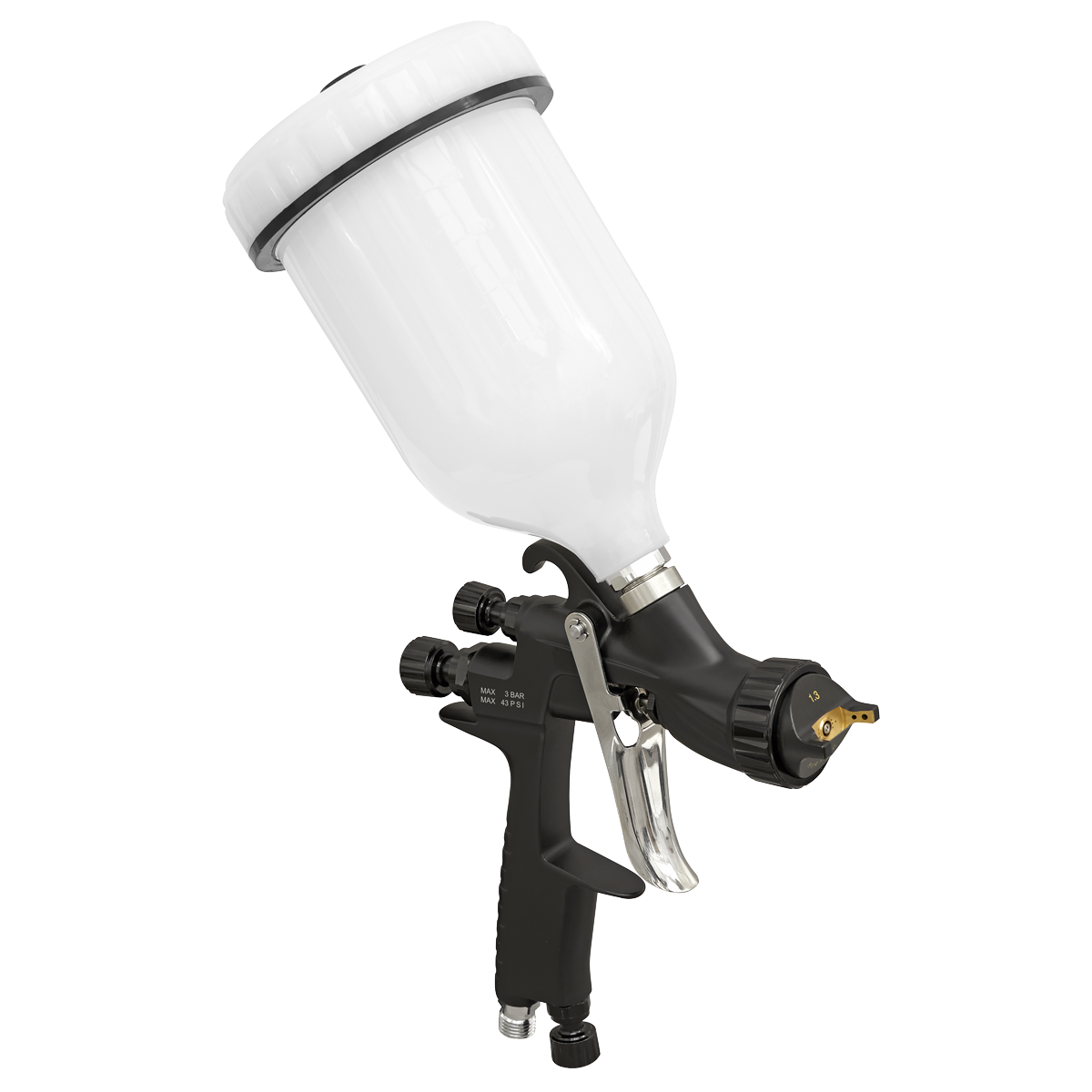

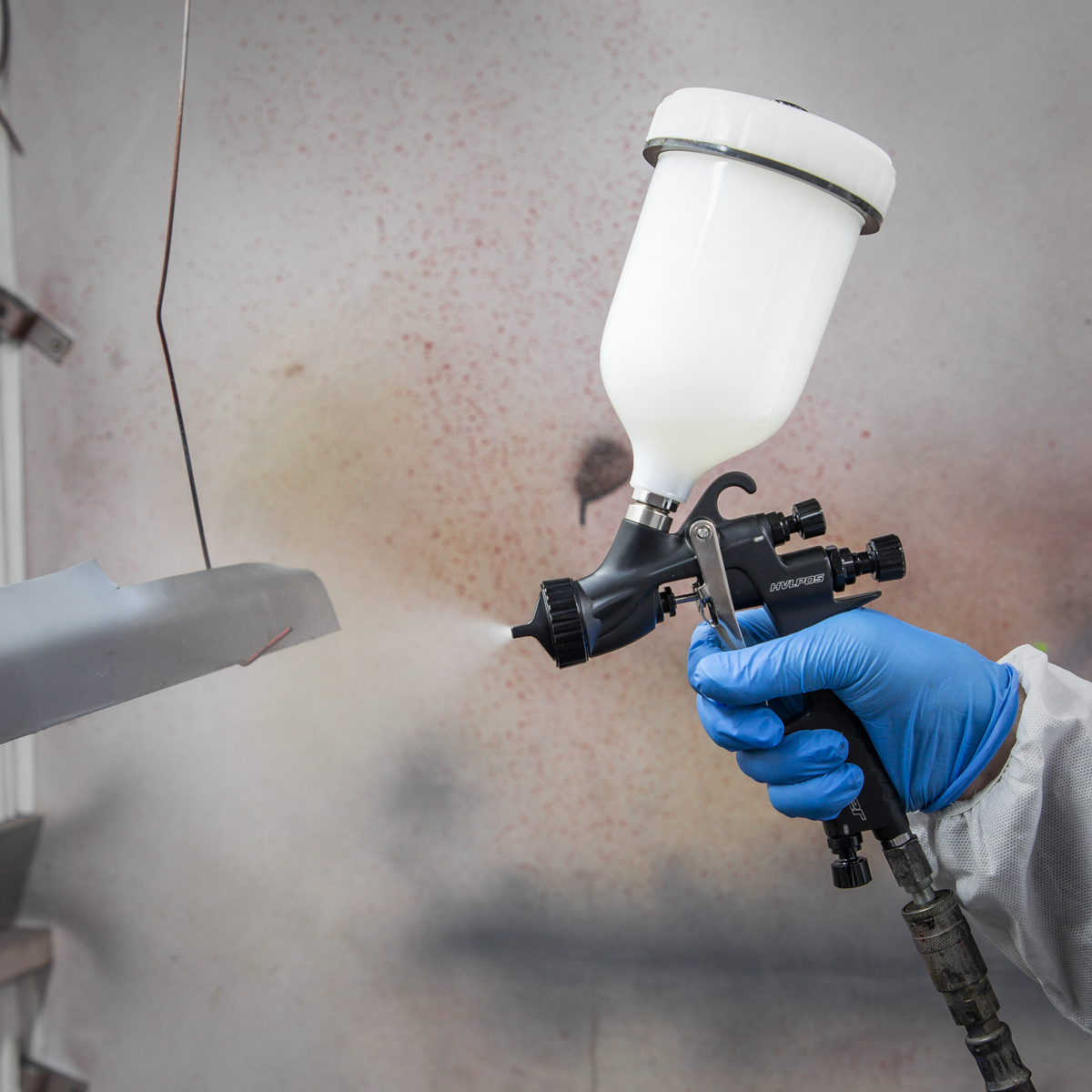

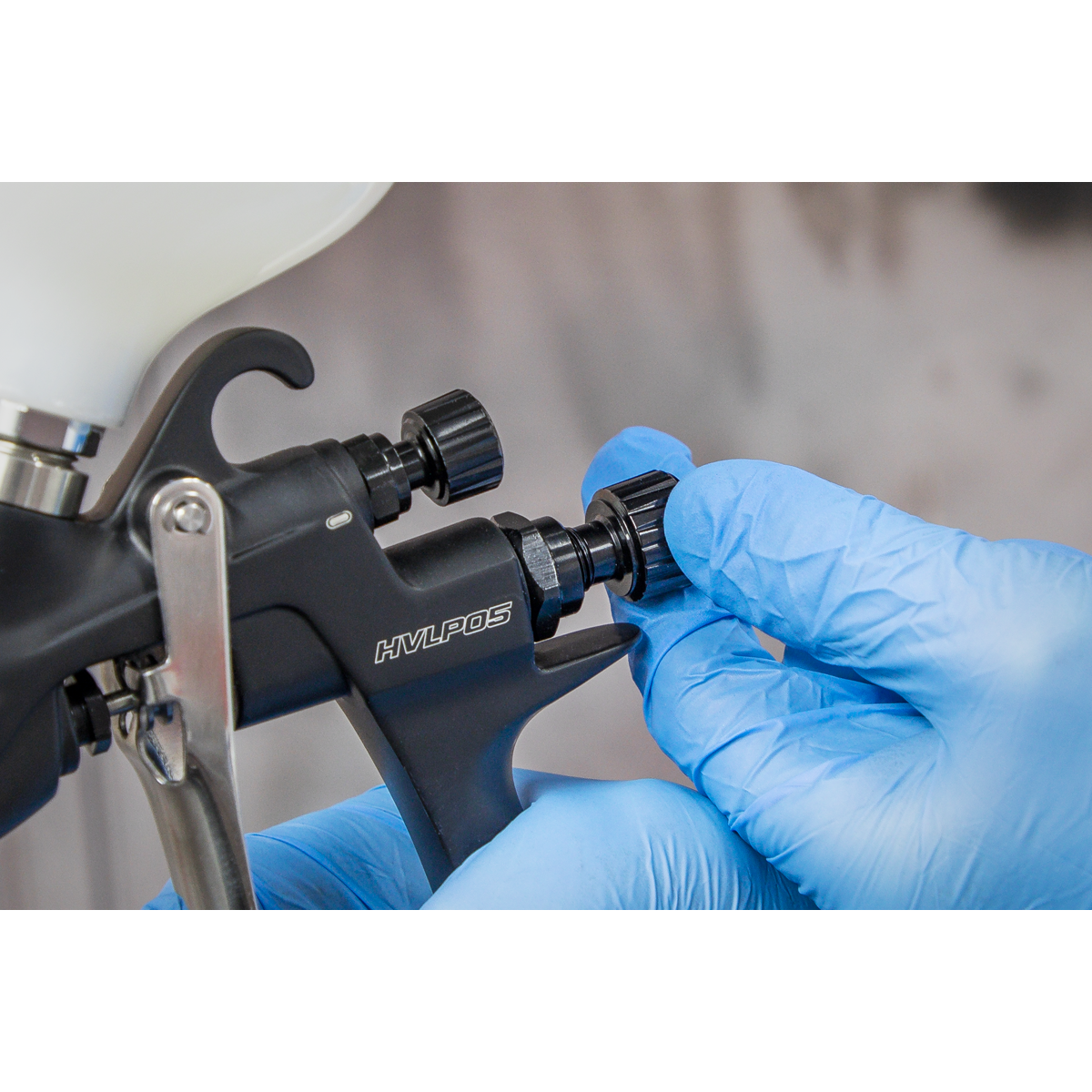

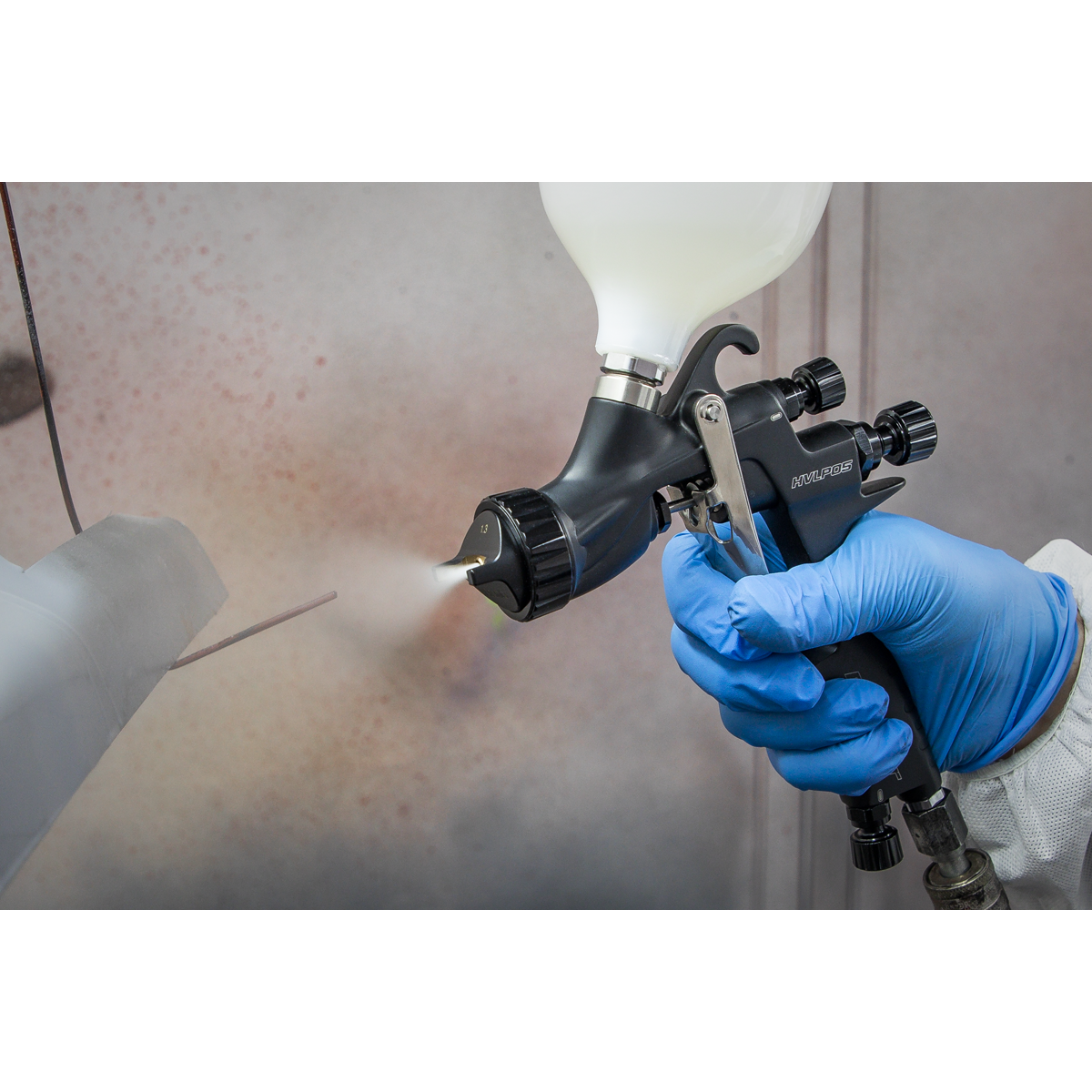

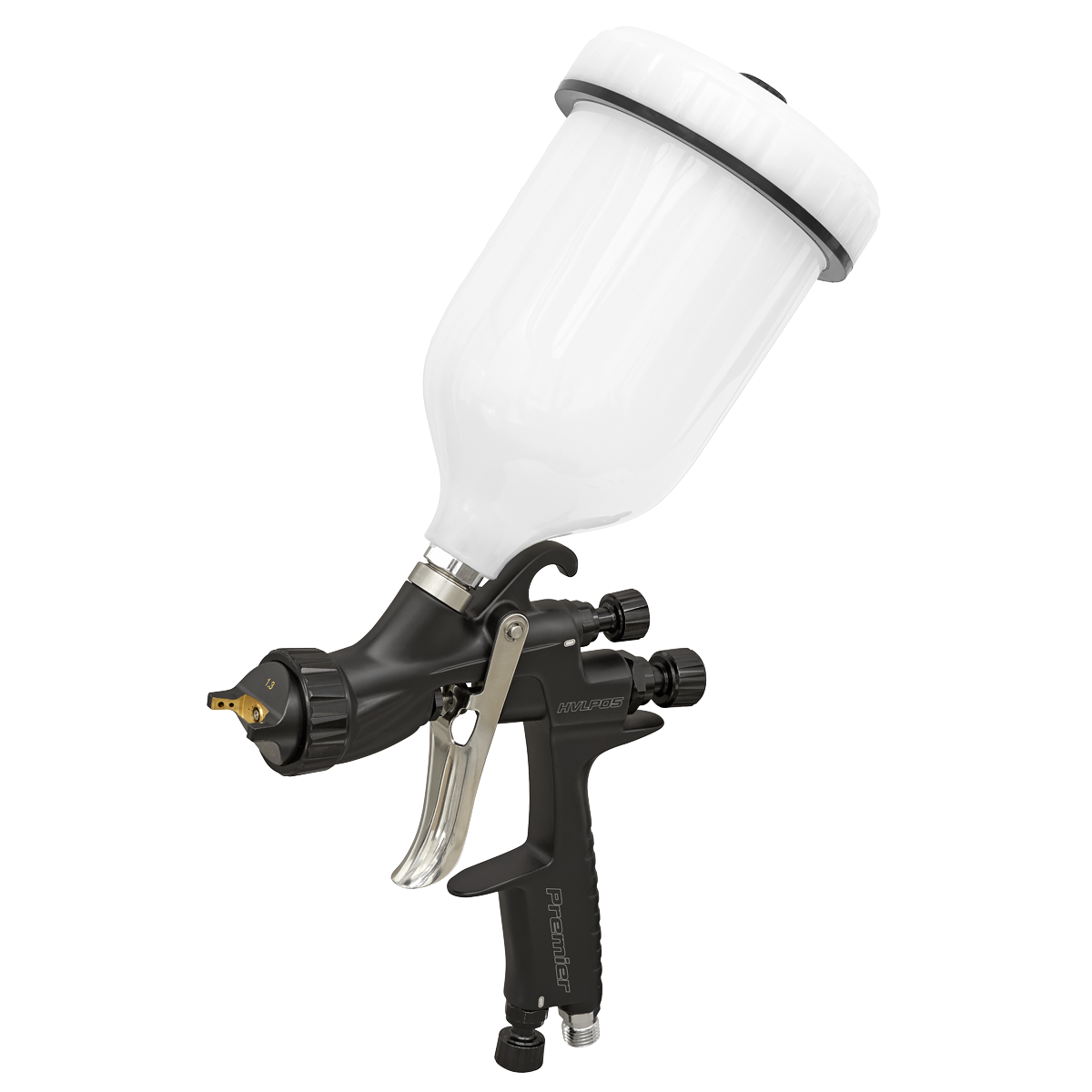

Achieving a smooth, consistent finish when spraying clear coats or base coats depends on precise control and equipment built to handle both solvent and water-based paints without deterioration. The Sealey HVLP05 is a gravity feed spray gun with a 1.3mm standard set-up, designed specifically for applying clear and base coats with repeatable, professional results. HVLP technology combined with precision engineering delivers consistent spray patterns up to 280mm wide, with separate air and paint flow controls allowing fine adjustment to suit the job. The fluid passages, needle, nozzle, air cap, and air valve are all stainless steel, making the gun suitable for both solvent and water-based paints. Rather than rubber O-rings, the HVLP05 uses a non-perishable O-ring design for long-term solvent resistance and extended service life. The gun operates at a recommended air pressure of 29-32psi with an air consumption of 14.12cfm, and accepts a 600ml pot. This product carries ATEX approval, confirming it is safe for use in explosive atmospheres as it produces no source of ignition during normal use. For those requiring a different nozzle size, alternative set-ups are available: 1.2mm (HVLP05-S1.2) and 1.4mm (HVLP05-S1.4).
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | HVLP05 |
|---|---|
| Air Consumption | 14.12cfm |
| Available Set-Up(s) | 1.2,1.4mm |
| Brand | Premier |
| Nett Weight | 0.62kg |
| Pot Capacity | 600ml |
| Recommended Air Pressure | 29-32psi |
| Standard Set-Up | 1.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SSG503 | SG02P | SG01P | 02136 | HVLP04 | 09709 |
| Type | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | ||
| Brand | PCL | PCL | Premier | |||
| Air Consumption | 4.5 | |||||
| Available Set-Up(s) | 1.8 | |||||
| Capacity (L) | 24 | 226 | ||||
| EAN | 5014875180205 | 5014875180199 | ||||
| Max Pressure (psi) | 36 | 22 | 43 | |||
| Model No | 503 | |||||
| Nett Weight | 0.44 | |||||
| Weight (kg) | 0.44 | 52 | 1.8 | |||
| Show More | ||||||
A. The HVLP05 comes in a standard 1.3mm set-up. Alternative versions are available in 1.2mm - order model HVLP05-S1.2 - or 1.4mm - order model HVLP05-S1.4.
A. Yes. The stainless steel fluid passages, needle, nozzle, air cap, and air valve make the gun suitable for both solvent and water-based paints.
A. The recommended air pressure is 29-32psi, and air consumption is 14.12cfm. Ensure your compressor can meet these requirements before use.
A. The HVLP05 has a pot capacity of 600ml.
A. The maximum spray pattern size is 280mm, adjustable via the air and paint flow controls on the gun.
A. The non-perishable O-ring design provides solvent resistance and longer service life compared to standard rubber O-rings, which can degrade when exposed to solvent-based paints and thinners.
A. Yes. The HVLP05 carries ATEX approval, confirming it is safe to use in explosive atmospheres as it does not produce any source of ignition when used correctly.
A. The HVLP05 has related variants in the Sealey HVLP range. These include HVLP-79/P, HVLP-79/P1, HVLP01, and HVLP04. Each variant differs in specification or set-up - please check individual product listings for details.
A. Yes. Alternative products that perform a similar function include the HVLP741, HVLP742, LVLP01, and S641G. These are different products rather than variants of the HVLP05 - please refer to each product listing to compare specifications.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
