Product Number: GDM160F
Variations

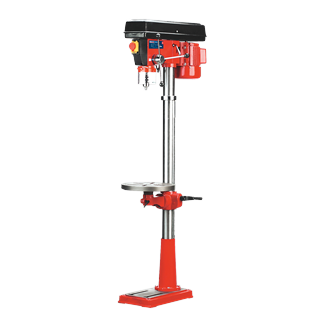

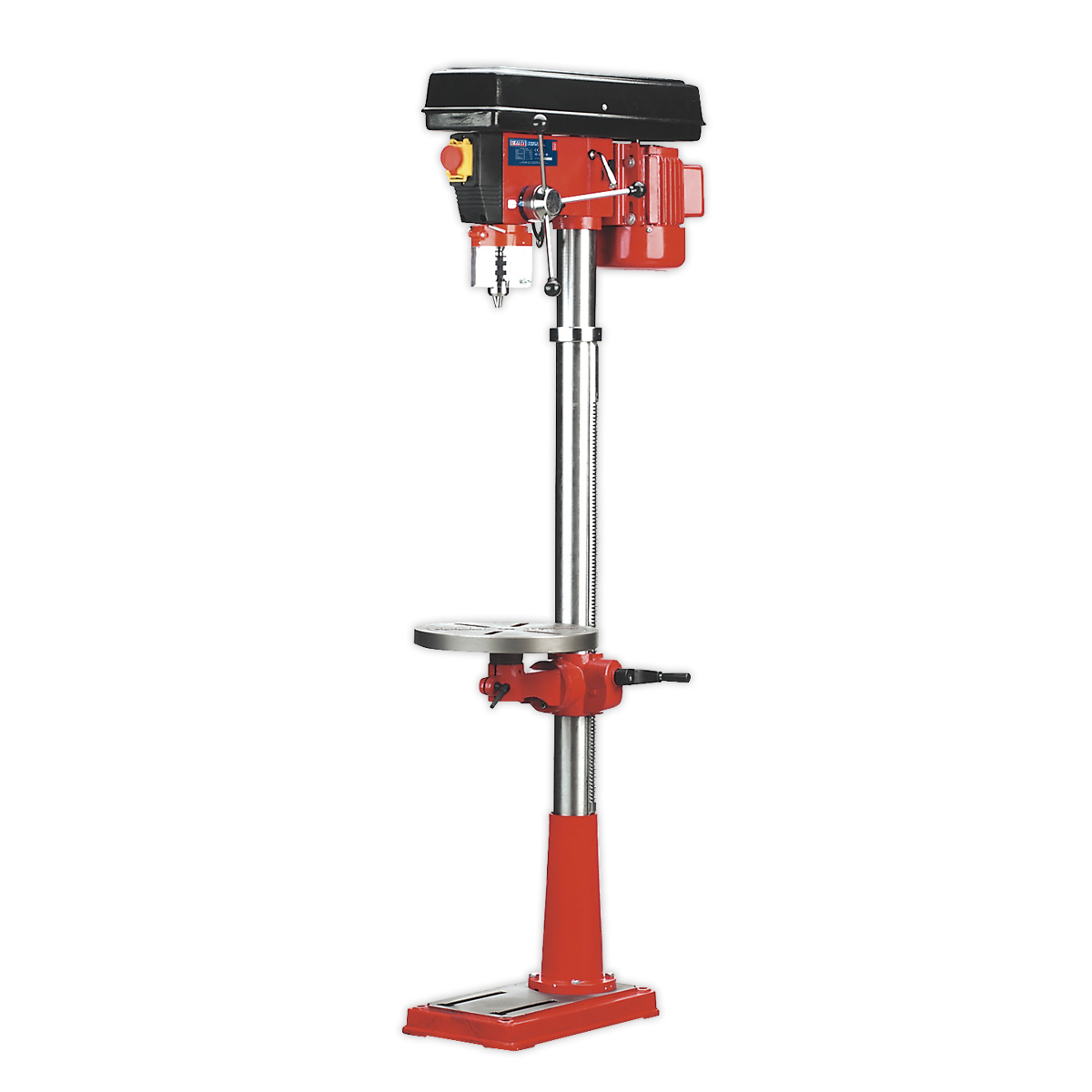

Bench space is a premium in any workshop, and a floor-standing pillar drill lets you keep your workbench clear without sacrificing capability. The Sealey GDM160F is a 550W floor pillar drill standing 1580mm tall, offering 16 speeds ranging from 210 to 3340rpm to suit a wide variety of drilling applications. The 16mm (5/8") MT2 chuck handles a broad range of drill bit sizes, while 80mm of spindle travel gives you good depth control on each pass. The adjustable tilting table rises and falls via a rack and pinion mechanism, making it straightforward to position your workpiece accurately. The spindle centre to column distance is 165mm, and the base measures 420 x 250mm for a stable footprint. Column diameter is 70mm. All models are fully CE certificated and approved for use in educational establishments and the industrial workplace. A mortise attachment is also available separately order model MA10. An optional keyless chuck upgrade is available under part number GDMX/KC.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | GDM160F |
|---|---|
| Base Size | 420 x 250mm |
| Brand | Sealey |
| Collar Diameter | Ø60mm |
| Column Diameter | Ø70mm |
| Drilling Capacity (Chuck Size) | Ø16mm |
| Maximum Distance Spindle to Base | 1240mm |
| Maximum Distance Spindle to Table | 790mm |
| Motor Power | 550W |
| Nett Weight | 51kg |
| Number of Speeds | 16 |
| Optional Accessories | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1580mm |
| Speed Range | 210-3340rpm |
| Spindle Centre to Column | 165mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 330mm |
| Working Base Surface Size | 210 x 190mm |
| Working Table Surface Size | Ø310mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
sealey-pillar-drill-floor-16-speed-1580mm-height-550w230v.pdf
|
Open Now |
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey GDM140F Floor Pillar Drill 12-Speed 370W 1500mm
£368.12
£360.90
2% OFF
Free delivery in UK Mainland
|
Sealey GDM150B 16-Speed Bench Pillar Drill 1070mm 650W 230V
£466.57
£457.42
2% OFF
Free delivery in UK Mainland
|
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 550W 1620mm
£488.13
£478.56
2% OFF
Free delivery in UK Mainland
|
Clarke CDP502F 12 Speed Floor Standing Industrial Drill Press (230V)
£835.48
£819.10
2% OFF
Free delivery in UK Mainland
|
Draper 95092 16 Speed Heavy Duty Floor Standing Drill, 650W
£599.57
£587.81
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GDM140F | GDM150B | GDM1630FR | GDM120B | GDM200F | 6505592 | 95092 | 7610850 | 7610860 |
A. The GDM160F is fitted with a 550W motor and offers 16 speeds ranging from 210 to 3340rpm.
A. The chuck capacity is 16mm (5/8"), with an MT2 taper.
A. The overall height is 1580mm, with a maximum spindle to base distance of 1240mm and a maximum spindle to table distance of 790mm.
A. Yes, all models are fully CE certificated and approved for use in educational establishments and the industrial workplace.
A. Yes, a mortise attachment is available separately. Order model number MA10.
A. Yes, an optional keyless pillar drill chuck (16mm) is available under part number GDMX/KC.
A. The GDM200F is available as a variant in the same product family with a different specification. Please refer to its product listing for full details.
A. Yes, alternatives in the Sealey range include the GDM120B, GDM140F, GDM150B, and GDM1630FR. Each offers a different specification and configuration to suit different workshop requirements.
A. The spindle travel is 80mm and the column diameter is 70mm, with a collar diameter of 60mm.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
