Product Number: PDM210F

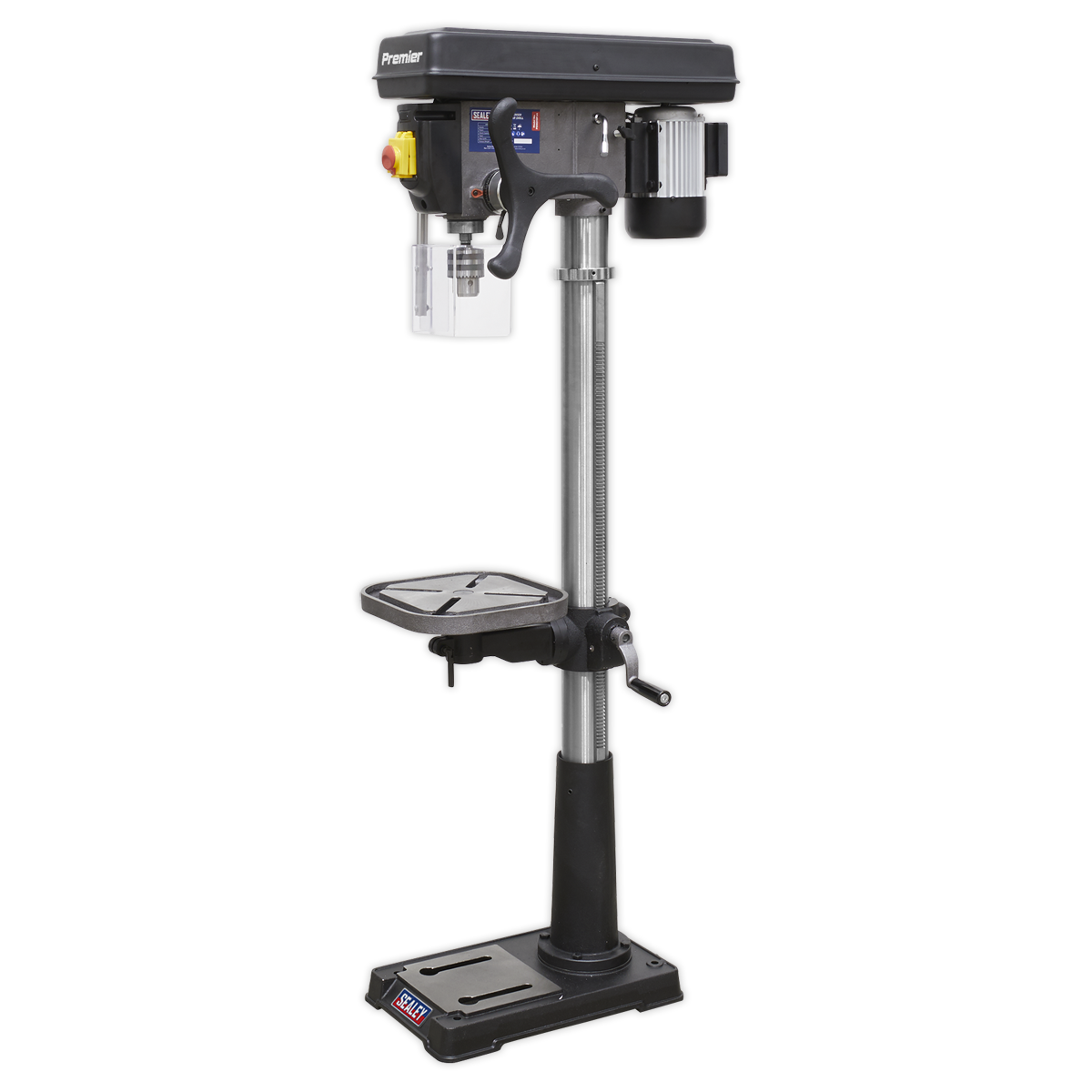

Inconsistent drilling depth, vibration-prone benchtop machines, and inadequate work lighting are common frustrations in a professional workshop environment. The Sealey PDM210F is a floor-standing pillar drill from the Premier range, designed to address these problems with a robust specification built around long-term reliability. The heavy-duty aluminium-bodied motor delivers 370W of power (600W start) and covers a 16-speed range from 190 to 3000rpm, allowing operators to match spindle speed precisely to the material and drill bit in use. The 16mm (5/8 inch) capacity MT2 chuck handles a wide variety of bit sizes, while the large square table with precision rack and pinion height adjustment makes repositioning workpieces straightforward and repeatable. Maximum spindle-to-table distance is 725mm and maximum spindle-to-base distance is 1225mm, with a spindle travel of 80mm and a column diameter of 80mm. The overall height of 1610mm makes this a true floor-standing unit with a base size of 495 x 290mm. Safety is addressed at several points: a no-volt release switch prevents inadvertent start-up after a power interruption, a microswitch on the pulley cover prevents the drill operating with the cover open, and an electrically interlocked chuck guard is fitted as standard. An integral work light illuminates the drilling table for a clear view of the drilling process (bulb not included). The PDM210F is supplied with a 3-year guarantee and runs on 230V single-phase supply. An optional keyless chuck upgrade is available as accessory PDM/KC.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PDM210F |
|---|---|
| Base Size | 495 x 290mm |
| Brand | Premier |
| Collar Diameter | Ø60mm |
| Column Diameter | Ø80mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Integral Work Light | Yes |
| Maximum Distance Spindle to Base | 1225mm |
| Maximum Distance Spindle to Table | 725mm |
| Motor Power (Start) | 370W(600W) |
| Nett Weight | 62kg |
| Number of Speeds | 16 |
| Optional Accessories | PDM/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1610mm |
| Speed Range | 190-3000rpm |
| Spindle Centre to Column | 190mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 380mm |
| Working Base Surface Size | 205 x 200mm |
| Working Table Surface Size | 290 x 290mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey PDM125B Pillar Drill Bench 16-Speed 1050mm 230V
£446.88
£438.12
2% OFF
Free delivery in UK Mainland
|
Sealey PDM155B Pillar Drill Bench 16-Speed 1050mm Height 230V
£565.03
£553.95
2% OFF
Free delivery in UK Mainland
|
Sealey PDM170F Floor Pillar Drill 16-Speed 1610mm 230V
£510.88
£500.86
2% OFF
Free delivery in UK Mainland
|
Sealey PDM240F Floor Pillar Drill 16-Speed 750W 230V
£712.70
£698.73
2% OFF
Free delivery in UK Mainland
|
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 550W 1620mm
£488.13
£478.56
2% OFF
Free delivery in UK Mainland
|
Sealey GDM140F Floor Pillar Drill 12-Speed 370W 1500mm
£368.12
£360.90
2% OFF
Free delivery in UK Mainland
|
Clarke CDP502F 12 Speed Floor Standing Industrial Drill Press (230V)
£835.48
£819.10
2% OFF
Free delivery in UK Mainland
|
Draper 95043 12 Speed Heavy Duty Floor Standing Drill, 1500W
£1,050.86
£1,030.25
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | PDM125B | PDM155B | PDM170F | PDM240F | GDM1630FR | GDM140F | 6505592 | 7610850 | 7610860 | 95043 |
A. The motor is rated at 370W running power with a 600W start power.
A. The PDM210F has 16 speeds covering a range of 190 to 3000rpm.
A. It is fitted with a 16mm (5/8 inch) capacity MT2 chuck as standard. An optional keyless chuck upgrade (PDM/KC) is also available.
A. The PDM210F includes a no-volt release switch to prevent inadvertent start-up, a microswitch on the pulley cover that prevents the drill operating when the cover is open, and an electrically interlocked chuck guard.
A. Yes, an integral work light is fitted to illuminate the drilling table. Please note that the bulb is not included.
A. Overall height is 1610mm, base size is 495 x 290mm, column diameter is 80mm, spindle travel is 80mm, maximum spindle-to-table distance is 725mm, and maximum spindle-to-base distance is 1225mm.
A. The PDM210F is covered by a 3-year guarantee.
A. Yes. Alternative pillar drill models that perform the same function include the PDM125B, PDM155B, PDM170F, and PDM240F. Each differs in capacity, speed range, or form factor - please check individual product listings or contact Parts for Machines for a comparison.
A. An optional keyless pillar drill chuck (16mm) is available under part number PDM/KC.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
