Product Number: PDM240F

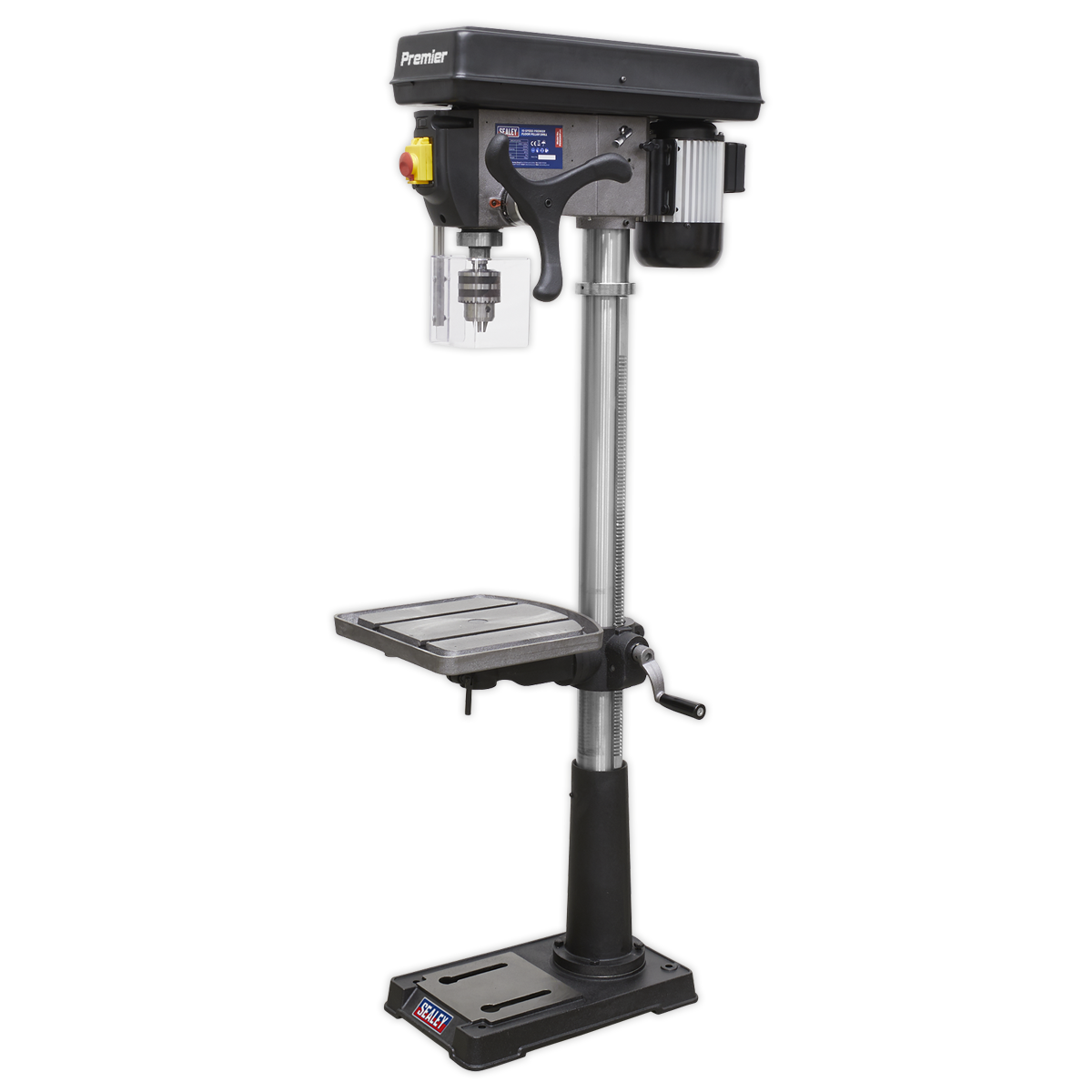

When drilling accuracy, operator safety, and long service life all matter, the Sealey PDM240F floor-standing pillar drill is built to meet the demand. Its heavy-duty aluminium-bodied motor is designed for long and reliable performance, while a comprehensive set of safety features make it suitable for professional workshops and approved for use in educational establishments. The no-voltage release switch prevents inadvertent start-up after a power interruption, and the pulley cover is protected by a microswitch so the drill cannot operate with the cover open. An electrically interlocked chuck guard is included as standard. The large square table features precision rack and pinion height adjustment, and an integral work light illuminates the drilling area for a clear view during operation (60W E27 bulb not included). Chuck capacity is 20mm (3/4") MT3, with 16 speeds ranging from 160-3000rpm. Motor power is 750W (1000W start). Spindle centre to column is 216mm wider reach than many comparable models. Overall height is 1635mm; base size is 495 x 290mm. Maximum spindle to table distance is 720mm and spindle to base is 1230mm. Column diameter is 80mm. The optional PDM/KC keyless 16mm chuck is available separately. Backed by a 3-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PDM240F |
|---|---|
| Base Size | 495 x 290mm |
| Brand | Premier |
| Collar Diameter | Ø75mm |
| Column Diameter | Ø80mm |
| Drilling Capacity (Chuck Size) | 20mm |
| Integral Work Light | Yes |
| Maximum Distance Spindle to Base | 1230mm |
| Maximum Distance Spindle to Table | 720mm |
| Motor Power (Start) | 750W(1000W) |
| Nett Weight | 76kg |
| Number of Speeds | 16 |
| Optional Accessories | PDM/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1635mm |
| Speed Range | 160-3000rpm |
| Spindle Centre to Column | 216mm |
| Spindle Nose Taper | MT3 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 512mm |
| Working Base Surface Size | 205 x 200mm |
| Working Table Surface Size | 356 x 356mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
PDM/CS | Sealey PDM/CS Coolant System for PDM210F, PDM240F & PDM260F | 1 Unit |
£50.10
£49.10
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey GDM160F Floor Pillar Drill 16-Speed 550W 230V
£448.06
£439.10
2% OFF
Free delivery in UK Mainland
|
Draper 2019 16 Speed Floor Standing Drill, 1100W
£471.20
£461.96
2% OFF
Free delivery in UK Mainland
|
Clarke CDP502F 12 Speed Floor Standing Industrial Drill Press (230V)
£835.48
£819.10
2% OFF
Free delivery in UK Mainland
|
Draper 95092 16 Speed Heavy Duty Floor Standing Drill, 650W
£599.57
£587.81
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GDM200F | GDM160F | 02019 | 6505592 | 02017 | 95092 |
| Type | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | |
| Base Size | 460 x 275mm | 420 x 250mm | 485 x 290mm | 485 x 290mm | 460 x 275mm | |
| Collar Diameter | Ø60mm | Ø60mm | 60mm | 60mm | 60mm | |
| Length (mm) | 275 | 250 | 290 | 290 | 275 | |
| Spindle Travel | 80mm | 80mm | 80mm | 80mm | 80mm | |
| Weight (kg) | 63 | 51 | 86 | 64 | 78 | |
A. The PDM240F has a 20mm (3/4") chuck capacity with an MT3 taper.
A. The PDM240F is fitted with a no-voltage release switch to prevent inadvertent start-up, a microswitch-protected pulley cover that stops the drill operating when the cover is open, and an electrically interlocked chuck guard. These safety devices make it suitable for insurance company approval for use in educational establishments.
A. Yes. It features an integral work light that illuminates the drilling table. The 60W E27 bulb is not included and must be sourced separately.
A. The PDM240F offers 16 speeds from 160-3000rpm.
A. Overall height is 1635mm. Base size is 495 x 290mm. Maximum spindle to table distance is 720mm. Maximum spindle to base is 1230mm. Spindle centre to column is 216mm. Column diameter is 80mm.
A. Yes. The optional PDM/KC keyless pillar drill chuck (16mm) is available as an accessory.
A. The PDM240F is backed by a 3-year guarantee.
A. Alternative pillar drills that serve a similar function include the PDM125B, PDM155B, PDM170F, and PDM210F. Please check individual product listings to compare specifications and capacities.
A. We accept all major credit and debit cards, along with PayPal.
A. Standard UK mainland delivery is 3-5 working days.
