Product Number: EXTMP50090CP
Variations

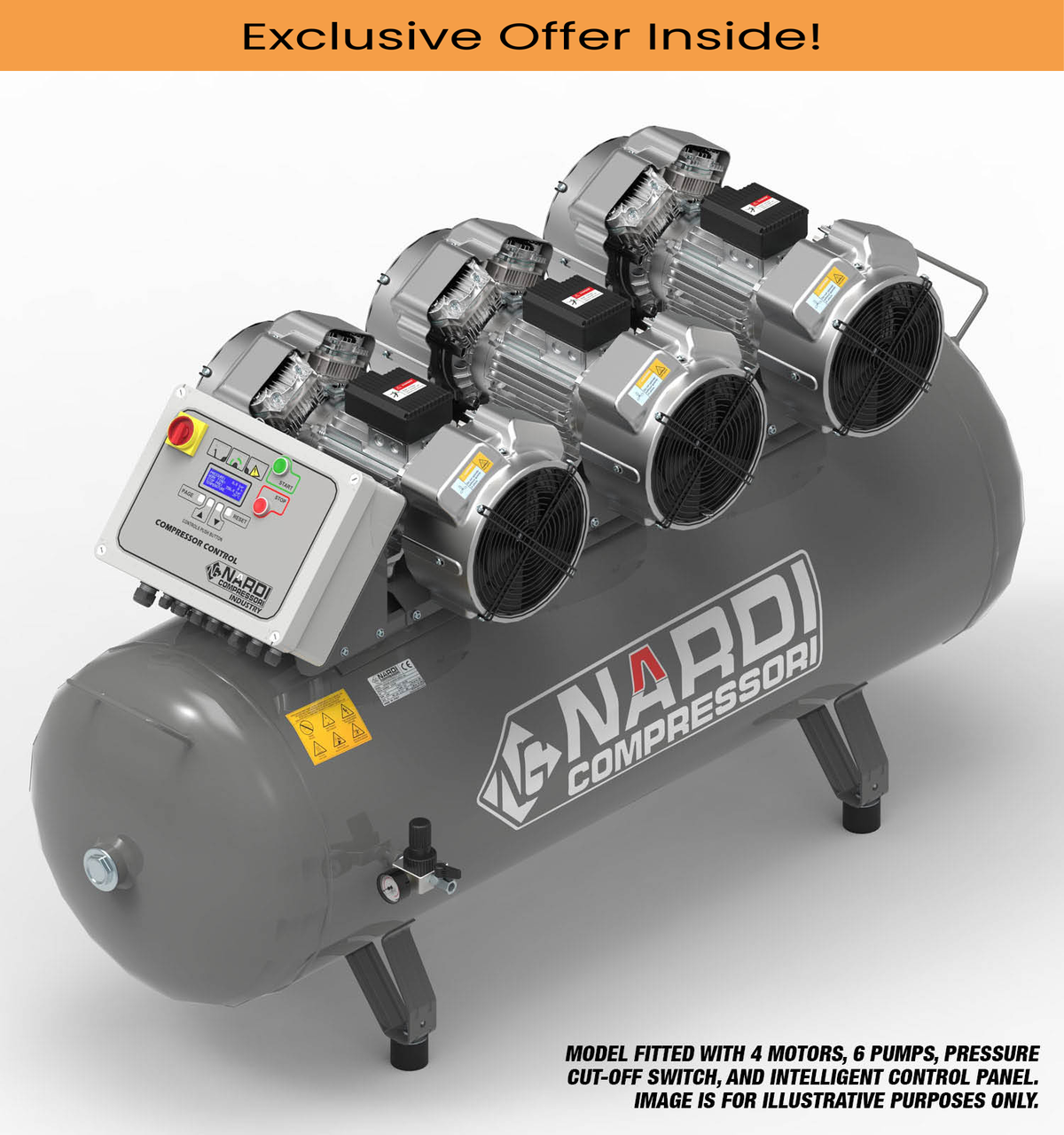

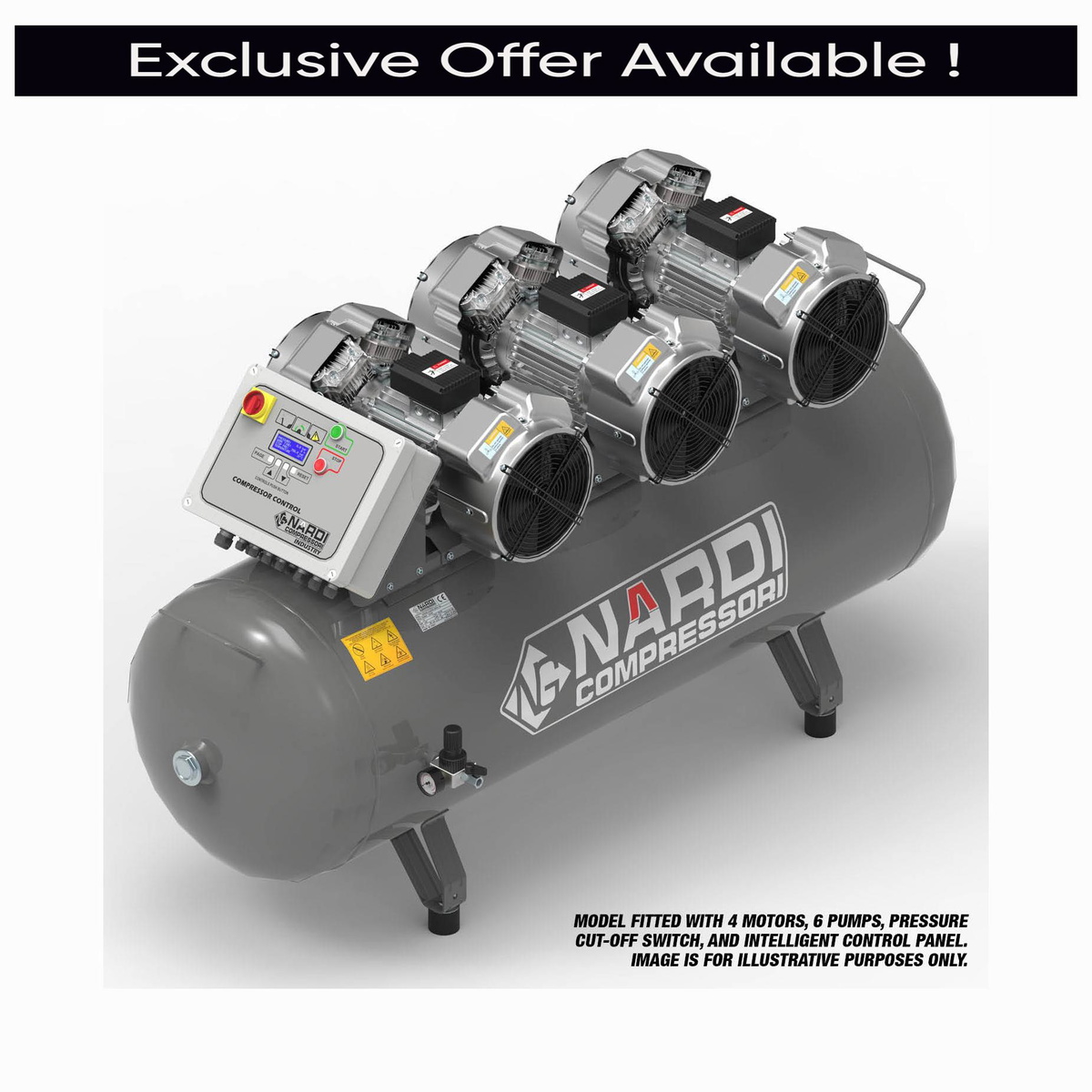

SIP EXTMP50090CP NARDI Extreme MP CP Compressor is a 9.0hp, 500L 3‑phase workstation for very high volume 10bar air with integrated control. Three 2.20kW (3.00hp) 4‑pole slow‑running motors on 400V drive a 12‑cylinder oil‑free pump delivering 63.60CFM (1800L/min) piston displacement and 44.50CFM (1272L/min) Free Air Delivery at up to 145psi (10bar) into a 500L receiver. The CP control panel manages motor control, pump selection and system monitoring, sharing load across multiple pumps, sequencing operation based on demand and providing service indicators and individual hour meters. Technopolymer piston rings, concentric big end bearings and crankcase air intake diffusion reduce vibration and contamination, while fan‑shaped stainless steel valves and forced‑air cooling ensure durability and extended runtimes. With a 75dB(A) noise level and adjustable regulator, Extreme MP 9hp CP is ideal as a central air plant for large industrial users needing high-volume, oil‑free 10bar air with intelligent multi‑pump management.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXTMP50090CP |
|---|---|
| Input Supply | 400v 3-PHASE |
| Motor Power | 3x 2.20kW (3.00hp) 4-POLE 1400rpm |
| Receiver Size | 270ltr |
| Piston Displacement | 63.60CFM (1800ltr/min) |
| Free Air Delivery (FAD) | 44.50CFM (1272ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 12 cylinders |
| Noise Level | 75dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXTMP27090CP NARDI Extreme MP CP Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£7,170.07
£7,029.48
2% OFF
Free delivery in Channel Island
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | EXTMP27090CP |
| Capacity (L) | 270 |
| ITEM NO | EXTMP27090CP |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 75dB(A) |
A. It is a triple-motor, 9HP, 500 litre MP compressor with intelligent control panel for very high volume 10bar air systems.
A. It uses three 2.20kW (3.00hp) four-pole 400v three-phase motors, giving 9HP total for heavy-duty compressed-air production.
A. It offers 63.60CFM piston displacement and 44.50CFM free air, approximately 1800 and 1272 litres per minute respectively.
A. The system can supply up to 145psi, equivalent to 10bar maximum air pressure.
A. It balances demand across up to three pumps, manages start/stop sequencing, and provides diagnostics such as hours run and service indicators.
A. The V-Twin oil-free cylinders with technopolymer piston rings deliver clean compressed air, minimising contamination and maintenance.
A. They reduce vibration and mechanical load on rotating assemblies, increasing pump lifespan under constant high-output conditions.
A. It limits contamination in multiple crankcases, prolonging valve plate life and supporting consistent air delivery across the system.
A. The 500ltr tank provides substantial storage, smoothing flow and pressure across peak demands in large industrial installations.
A. It suits high-volume industrial processes where intelligent multi-pump control, oil-free air, and continuous duty are critical.
A. An adjustable regulator and pressure cut-off manage setpoints, while the control panel coordinates pump operation to maintain target pressure.
