Product Number: EXTMP50060CP
Variations

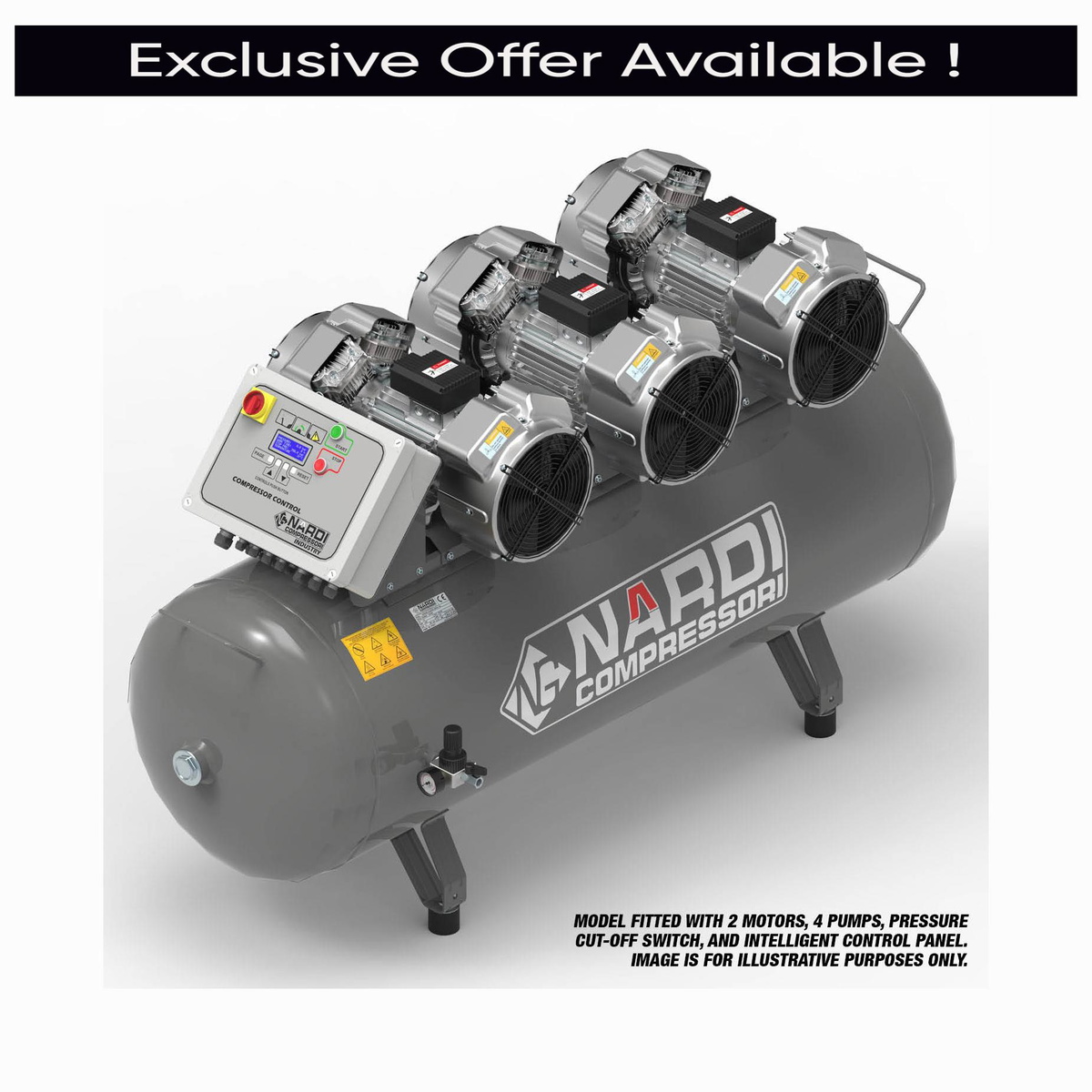

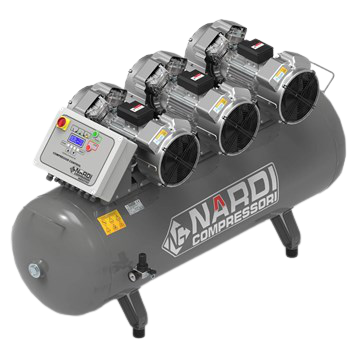

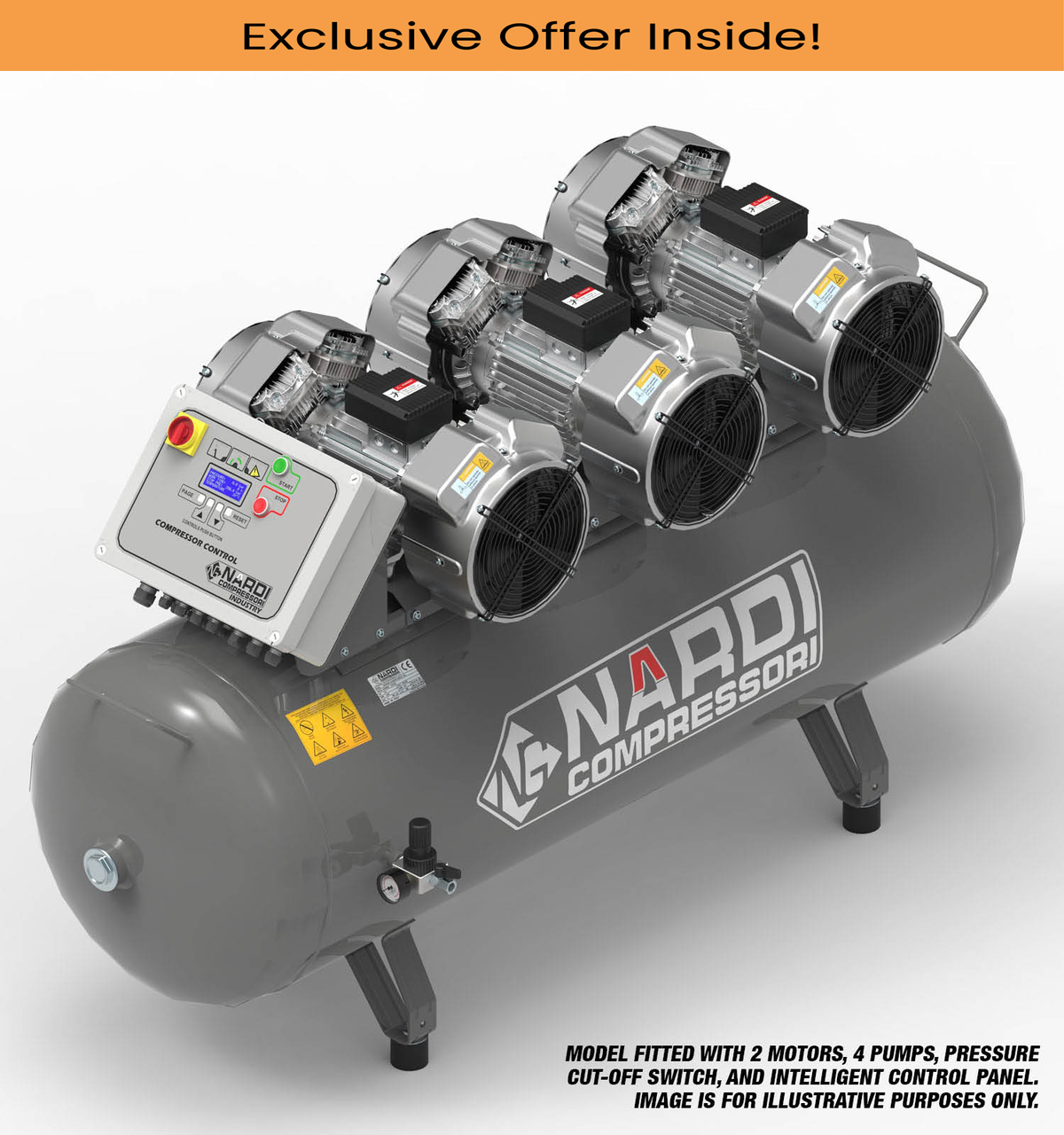

SIP EXTMP50060CP NARDI Extreme MP CP Compressor is a 6.0hp, 500L integrated workstation combining twin motors, oil‑free pump and intelligent control. Two 2.20kW (3.00hp) 4‑pole slow‑running motors on 400V 3‑phase power an 8‑cylinder pump delivering 42.40CFM (1200L/min) piston displacement and 29.70CFM (848L/min) Free Air Delivery at up to 145psi (10bar) into a 500L receiver. The CP panel provides bespoke multi‑pump management, balancing load across up to three pumps, sequencing operation according to demand and monitoring hours, service intervals and pump status. The pump’s technopolymer piston rings, concentric big end bearings and crankcase air intake diffusion reduce wear and contamination, while fan‑shaped stainless steel valves and forced‑air cooling support continuous duty. With a 74dB(A) noise level and adjustable pressure regulation, this Extreme MP CP compressor is ideal for industrial plants that require a space‑efficient, energy‑optimised 10bar air station with integrated control and monitoring.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXTMP50060CP |
|---|---|
| Input Supply | 400v 3-PHASE |
| Motor Power | 2x 2.20kW (3.00hp) 4-POLE 1400rpm |
| Receiver Size | 500ltr |
| Piston Displacement | 42.40CFM (1200ltr/min) |
| Free Air Delivery (FAD) | 29.70CFM (848ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 8 cylinders |
| Noise Level | 74dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXTMP27090CP NARDI Extreme MP CP Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£7,170.07
£7,029.48
2% OFF
Free delivery in Channel Island
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | EXTMP27090CP |
| Capacity (L) | 270 |
| ITEM NO | EXTMP27090CP |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 75dB(A) |
A. It is a twin-motor, 6HP, 500 litre industrial compressor with an intelligent control panel for multi-pump management and 10bar oil-free air.
A. It uses two 2.20kW (3.00hp) four-pole 400v three-phase motors, together providing 6HP for high-volume compressed air production.
A. It offers 42.40CFM piston displacement and 29.70CFM free air, around 1200 and 848 litres per minute respectively for high volume, low pressure work.
A. It can supply air up to 145psi, which is equivalent to 10bar maximum working pressure for industrial-grade systems.
A. It manages up to three motor/pump configurations, distributing load evenly based on air demand and providing system monitoring via meters and timers.
A. The V-Twin pump uses robust technopolymer piston rings, providing oil-free compressed air and reducing lubrication-related maintenance in industrial environments.
A. They reduce vibration and mechanical stress on crankshafts, extending pump longevity during continuous high-volume operation.
A. It lessens contamination entering the crankcase, improving valve plate life and helping maintain consistent compressor performance.
A. The large 500ltr tank stores substantial air volume, ensuring stable supply during heavy-demand periods and reducing compressor cycling.
A. It is ideal for high-volume, low-pressure industrial tasks where intelligent multi-pump control, oil-free air and low noise are all required.
A. An adjustable air pressure regulator and pressure cut-off allow precise pressure setting and automatic shutdown at the required level.
