Product Number: EXTMP27090CP

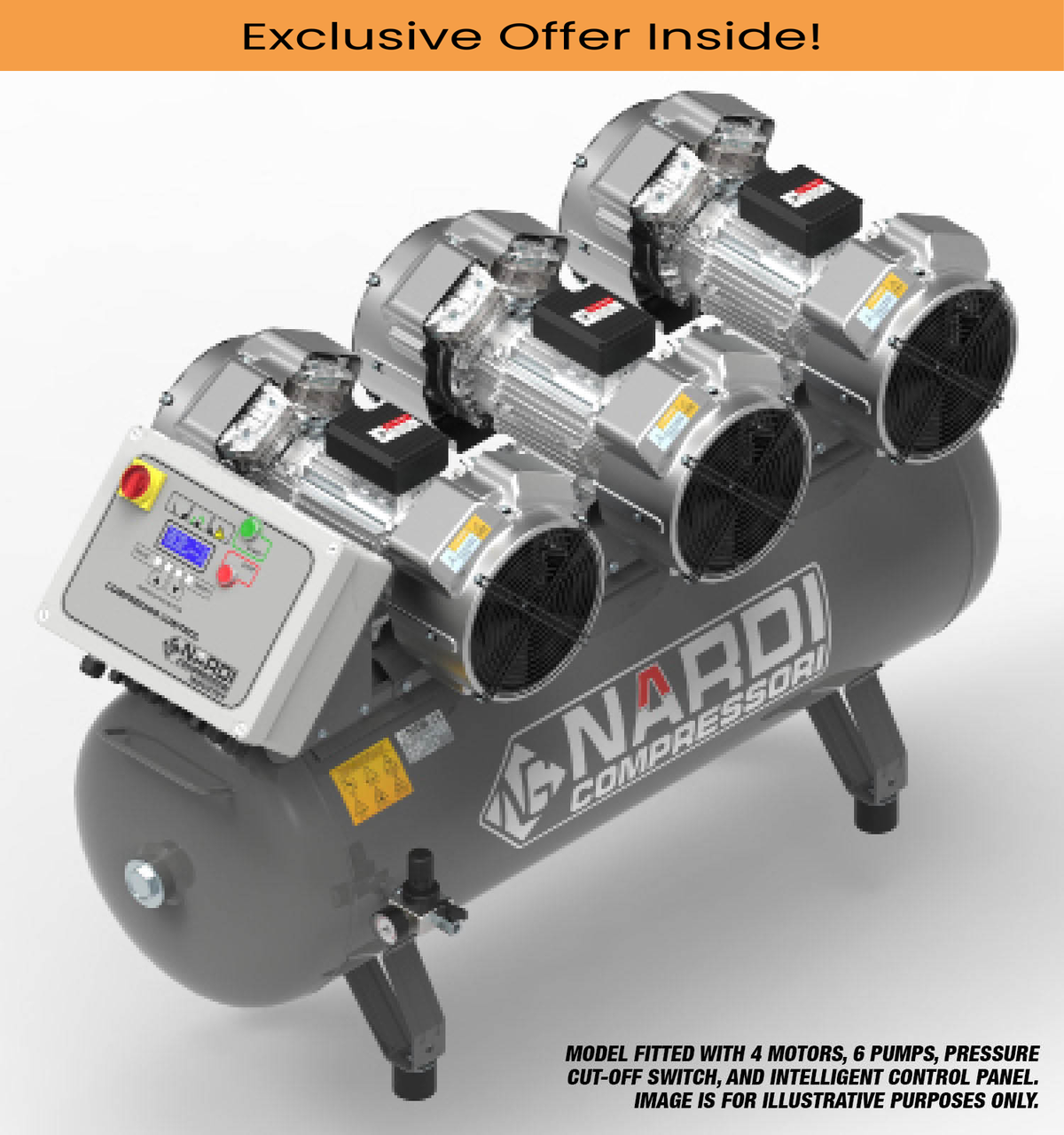

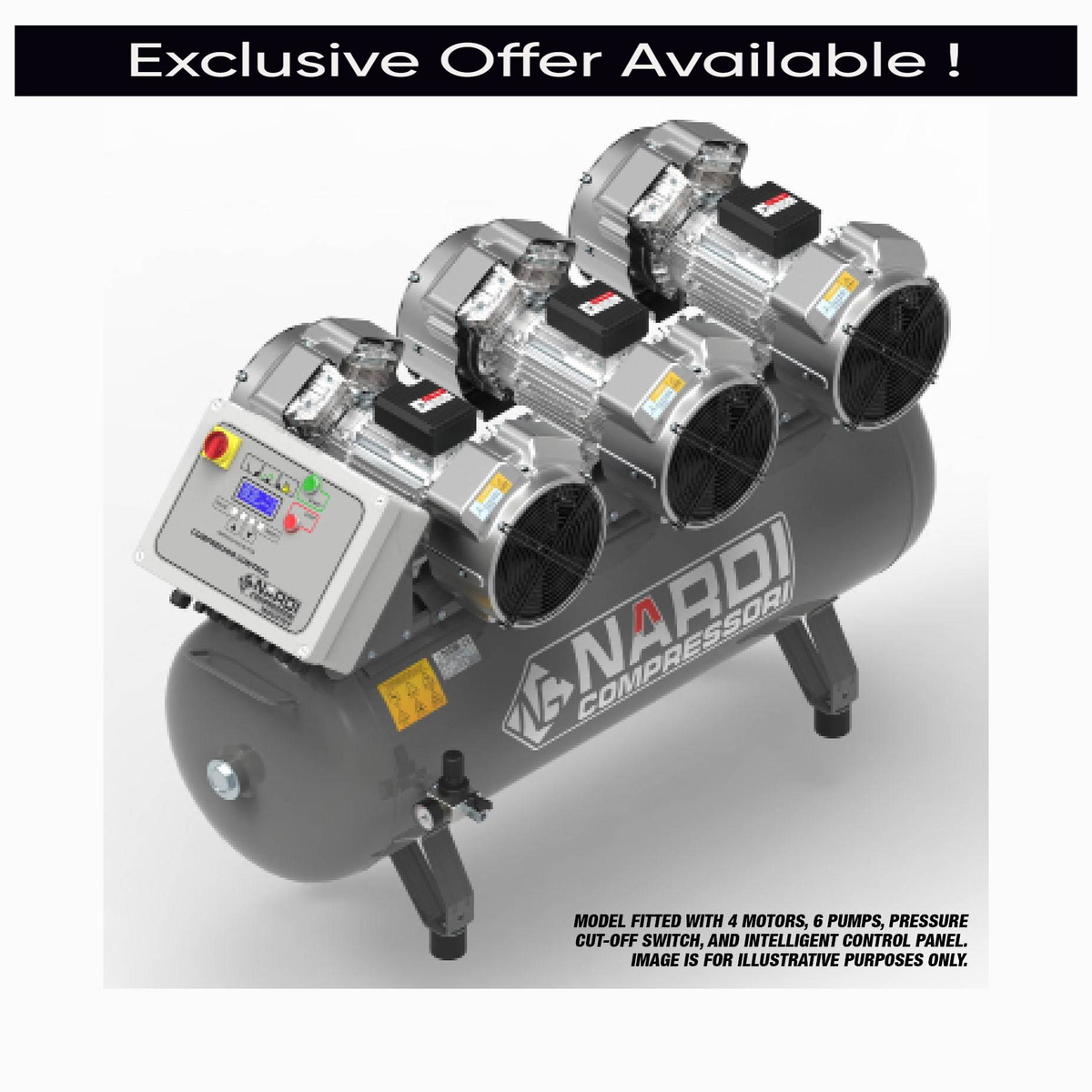

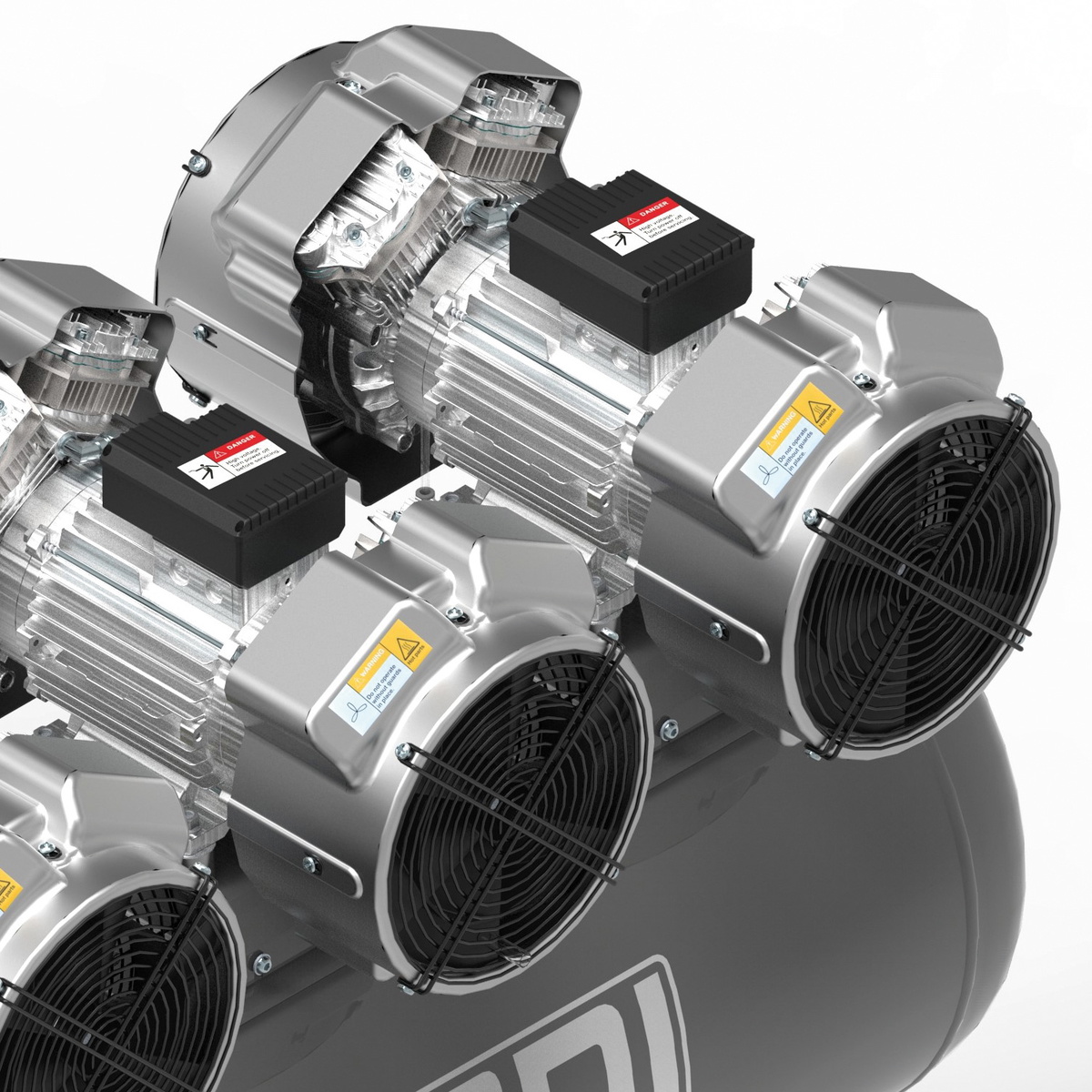

SIP EXTMP27090CP NARDI Extreme MP CP Compressor is a 9.0hp, 270L multi‑pump workstation for very high volume 10bar air. Three 2.20kW (3.00hp) 4‑pole slow‑running motors on 400V 3‑phase drive a 12‑cylinder oil‑free pump, producing 63.60CFM (1800L/min) piston displacement and 44.50CFM (1272L/min) Free Air Delivery at up to 145psi (10bar). The intelligent CP control panel manages motor control and system monitoring, distributing load across multiple pumps, sequencing start‑up and optimising operation based on demand. It also provides service indications, individual pump hour meters and timers for microprocessor‑controlled pump selection. Technopolymer piston rings, concentric big end bearings and crankcase air intake diffusion keep contamination and vibration low, while fan-shaped stainless steel valves ensure long service life. Forced‑air cooling and adjustable regulation support continuous duty, and low noise (~75dB(A)) makes the unit suitable for noise‑sensitive industrial environments. Extreme MP 9hp CP is ideal as a central, energy‑optimised 10bar air plant for large industrial applications.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXTMP27090CP |
|---|---|
| Input Supply | 400v 3-PHASE |
| Motor Power | 3x 2.20kW (3.00hp) 4-POLE 1400rpm |
| Receiver Size | 270ltr |
| Piston Displacement | 63.60CFM (1800ltr/min) |
| Free Air Delivery (FAD) | 44.50CFM (1272ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 12 cylinders |
| Noise Level | 75dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXT90304 NARDI Extreme 4 Compressor, Tank Capacity - 90 Litre, Max. Air Pressure - 10 Bar
£1,627.79
£1,595.87
2% OFF
Free delivery in Channel Island
|
SIP EXT90254 NARDI Extreme 4 Compressor, Tank Capacity - 90 Litre, Max. Air Pressure - 10 Bar
£1,371.68
£1,344.78
2% OFF
Free delivery in Channel Island
|
SIP EXT90204 NARDI Extreme 4 Compressor, Tank Capacity - 90 Litre, Max. Air Pressure - 10 Bar
£1,136.98
£1,114.69
2% OFF
Free delivery in Channel Island
|
SIP EXTSS50204 NARDI Extreme 4-Pole S-Sil. Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar
£1,534.21
£1,504.13
2% OFF
Free delivery in Channel Island
|
SIP EXTSS500754 NARDI Extreme Super Si. Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar
£1,411.16
£1,383.49
2% OFF
Free delivery in Channel Island
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | EXT90304 | EXT90254 | EXT90204 | EXTSS50204 | EXTSS500754 |
| Type | Silenced | Silenced | Silenced | Silenced | Silenced |
| Capacity (L) | 90 | 90 | 90 | 50 | 50 |
| ITEM NO | EXT90304 | EXT90254 | EXT90204 | EXTSS50204 | EXTSS500754 |
| Max Pressure (psi) | 145 | 145 | 145 | 145 | 145 |
| Maximum Pressure (bar) | 10 | 10 | 10 | 10 | 10 |
| Noise Level | 75dB(A) | 73dB(A) | 73dB(A) | 62dB(A) | 61dB(A) |
A. It is a triple-motor, 9HP MP compressor with control panel for very high-volume, low-pressure industrial applications at 10bar.
A. It uses three 2.20kW, 3.00hp four-pole motors at 1400rpm on a 400v three-phase supply, giving 9HP total.
A. It provides 63.60CFM piston displacement and 44.50CFM free air, about 1800 and 1272 litres per minute respectively.
A. It can reach 145psi, equal to 10bar, suitable for large industrial compressed-air networks.

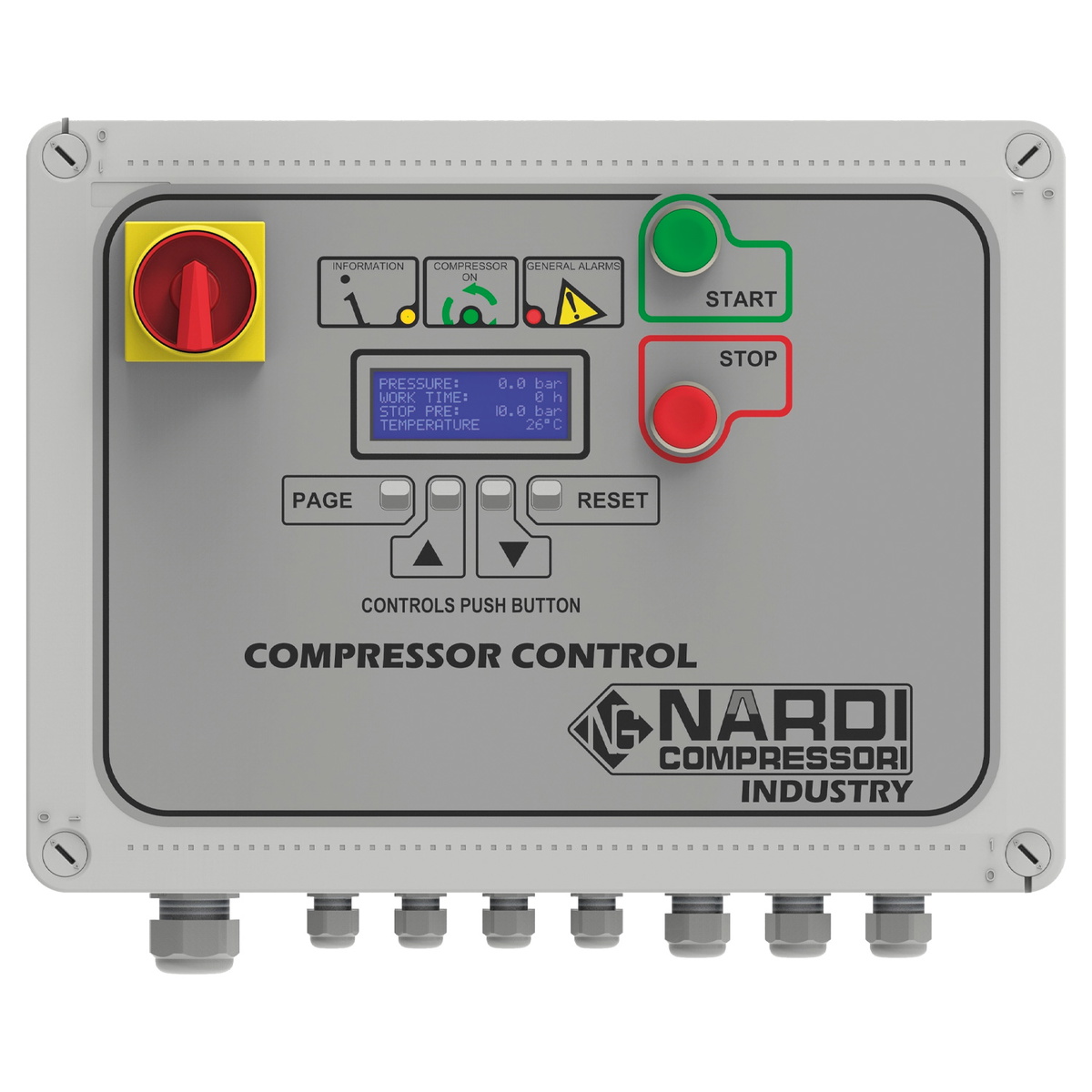

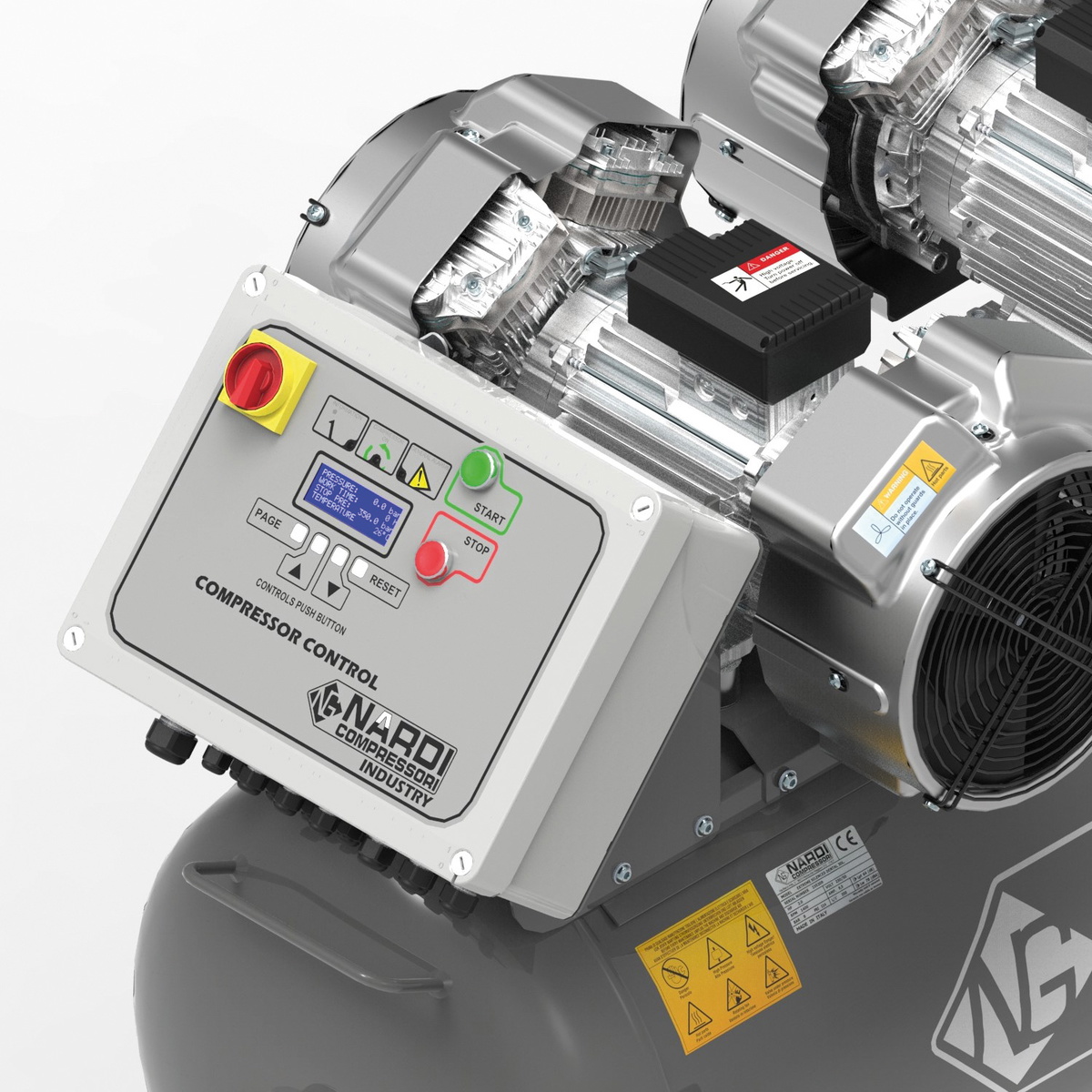

A. The panel controls multiple pumps, balancing power distribution, monitoring hours, scheduling maintenance and adjusting operation based on air demand.
A. Multiple V-Twin cylinders with technopolymer piston rings and stainless valves deliver oil-free air with long-term durability in heavy-duty environments.
A. They reduce vibration and mechanical loading across pumps, extending service life under constant high-flow operation.
A. It minimises contamination in multiple crankcases, enhancing valve plate life and maintaining stable airflow.
A. It suits high-volume, low-pressure industrial processes needing intelligent multi-pump control, oil-free air and low noise.
A. The control panel and regulator set precise pressure targets, while pressure cut-off ensures automatic shutdown at specified levels.
A. It operates at around 75dB(A), impressively low for a triple-motor, 12-cylinder industrial system.
