Product Number: EXTMP27060CP
Variations

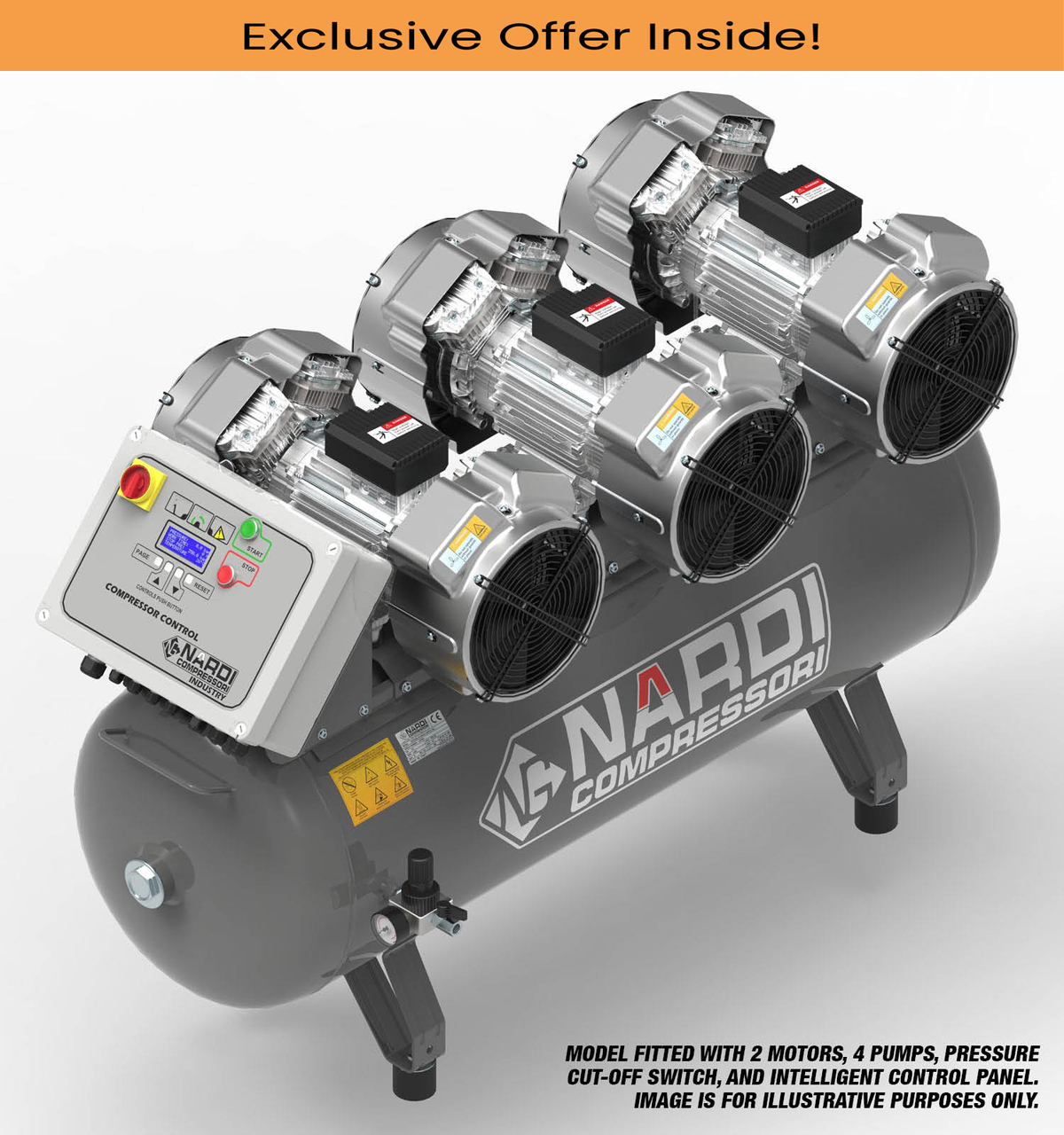

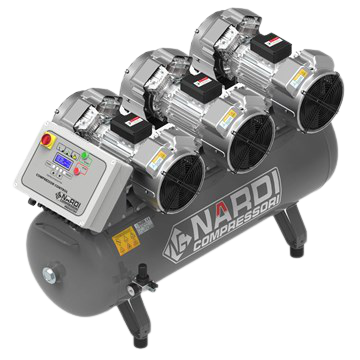

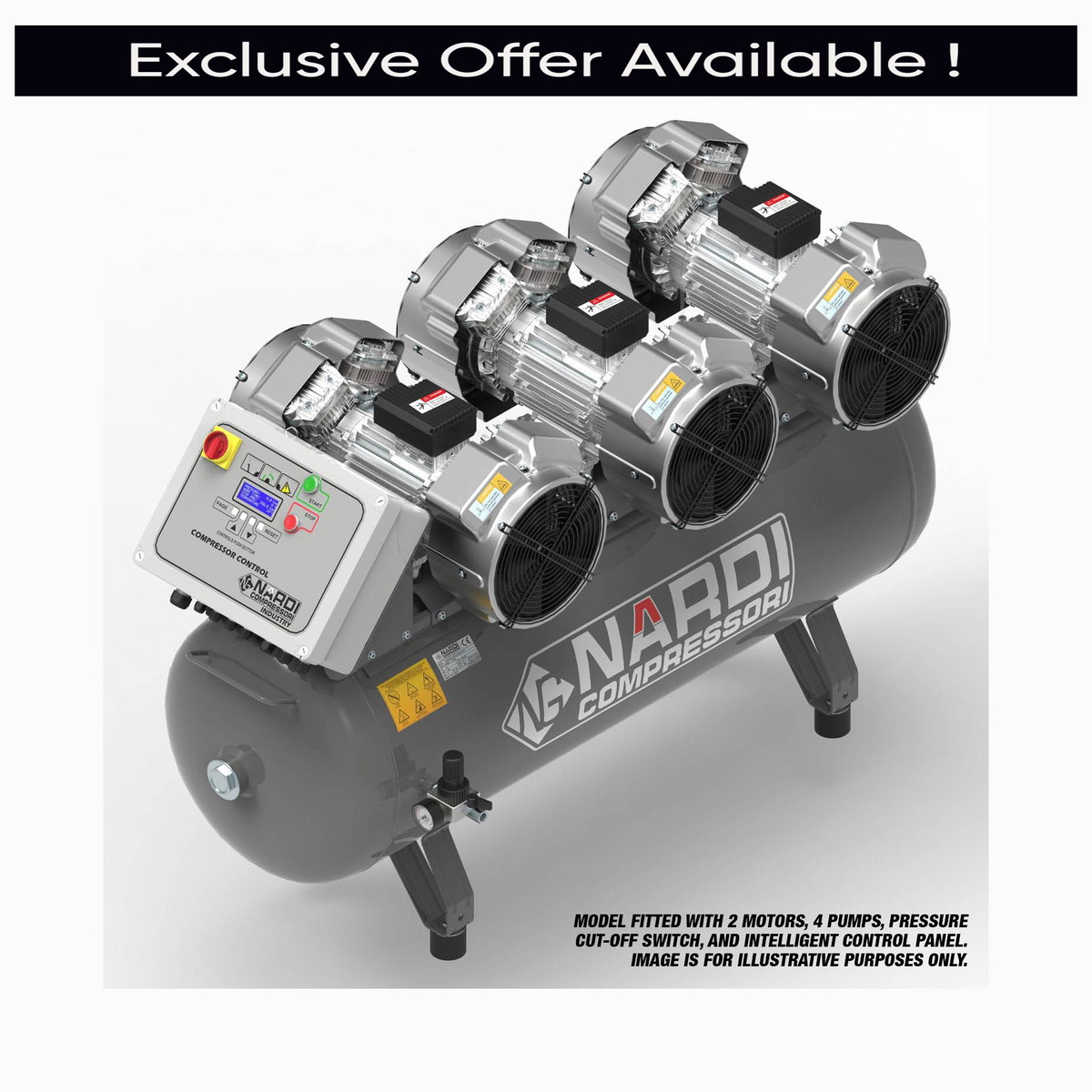

SIP EXTMP27060CP NARDI Extreme MP CP Compressor is a 6.0hp, 270L integrated system combining twin motors, an oil‑free pump and an intelligent control panel. Two 2.20kW (3.00hp) 4‑pole slow‑running motors on 400V 3‑phase drive an 8‑cylinder pump to deliver 42.40CFM (1200L/min) piston displacement and 29.70CFM (848L/min) FAD at up to 145psi (10bar) into a 270L receiver. The CP panel provides bespoke multi‑pump control, sharing load evenly across up to three motor/pump configurations, adapting operation to air demand and optimising energy use. The system also offers service interval indication and individual meters and timers for pump hours. Technopolymer piston rings, concentric big end bearings and crankcase air intake diffusion minimise wear and contamination, while fan‑shaped stainless steel valves and forced‑air cooling support long duty cycles. With low noise (~74dB(A)) and adjustable pressure regulation, this Extreme MP CP compressor is ideal for industrial plants seeking a smart, high-volume 10bar air station with integrated multi‑pump management.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXTMP27060CP |
|---|---|
| Input Supply | 400v 3-PHASE |
| Motor Power | 2x 2.20kW (3.00hp) 4-POLE 1400rpm |
| Receiver Size | 270ltr |
| Piston Displacement | 42.40CFM (1200ltr/min) |
| Free Air Delivery (FAD) | 29.70CFM (848ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 8 cylinders |
| Noise Level | 74dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXTMP27090CP NARDI Extreme MP CP Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£7,289.00
£7,146.08
2% OFF
Free delivery in Channel Island
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | EXTMP27090CP |
| Capacity (L) | 270 |
| ITEM NO | EXTMP27090CP |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 75dB(A) |
A. It is a 6HP, 270 litre MP compressor with control panel for multi-pump management and system monitoring in high-volume 10bar applications.
A. It uses two 2.20kW, 3.00hp four-pole motors at 1400rpm from a 400v three-phase supply, totalling 6HP.
A. It delivers 42.40CFM piston displacement and 29.70CFM free air, about 1200 and 848 litres per minute respectively.
A. The compressor can supply up to 145psi, equivalent to 10bar maximum pressure.
A. The intelligent panel manages multiple pumps, balancing power distribution, optimising usage based on air demand and providing service interval indicators.
A. The V-Twin cylinders use technopolymer piston rings and stainless valves, delivering oil-free air and reducing manual servicing.
A. They reduce vibration and mechanical load on pump components, increasing reliability under heavy industrial duty.
A. It reduces contamination in the crankcase, enhancing valve plate life and ensuring stable compressed-air performance.
A. It is ideal for high-volume, low-pressure industrial applications where multi-pump control, low noise and oil-free operation are critical.
A. The control panel and adjustable regulator manage pressure setpoints, while pressure cut-off automatically stops the system at the target pressure.
A. It runs at roughly 74dB(A), relatively quiet for a multi-motor industrial compressor.
