Product Number: EXTMP50060
Variations

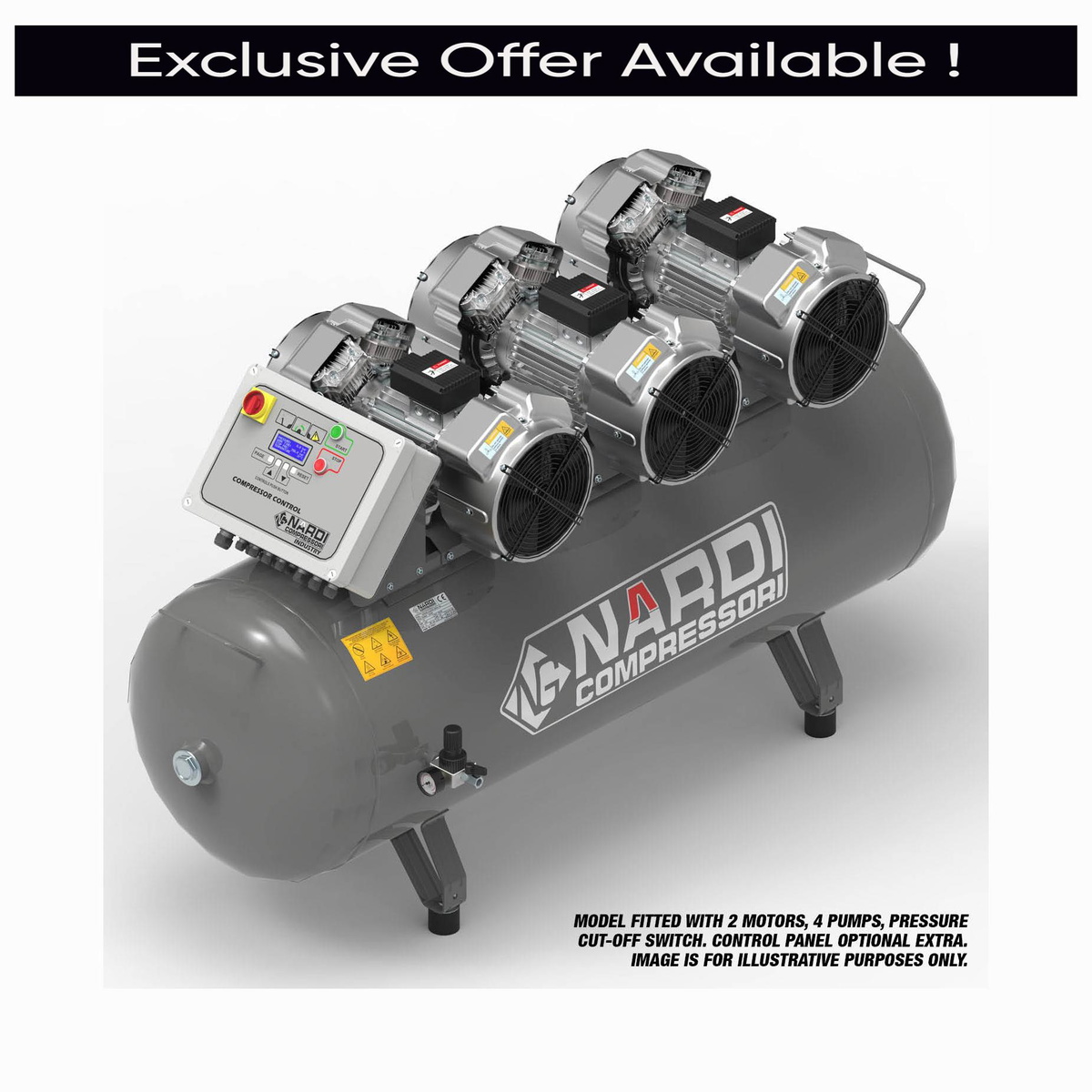

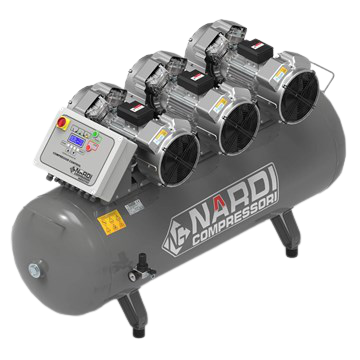

SIP EXTMP50060 NARDI Extreme MP Compressor is a 6.0hp, 500L 3‑phase unit delivering heavy-duty, high-volume 10bar air for industrial use. Twin 2.20kW (3.00hp) 4‑pole slow‑running motors on 400V drive an 8‑cylinder oil‑free pump delivering 42.40CFM (1200L/min) piston displacement and 29.70CFM (848L/min) FAD at up to 145psi (10bar) into a large 500L receiver. Features such as technopolymer piston rings, concentric big end bearings, crankcase air intake particle diffusion and fan-shaped stainless steel valves are designed to reduce vibration, contamination and wear while maintaining strong performance. Forced‑air cooling supports long duty cycles, and adjustable pressure regulation allows tuning for different processes and tools. With a 74dB(A) noise level, this Extreme MP is well suited to noise‑sensitive factories and workshops requiring continuous, high-volume oil‑free compressed air for fibre blowing, pneumatic conveying or multi‑tool operation from a robust 500L platform.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXTMP50060 |
|---|---|
| Input Supply | 400v 3-PHASE |
| Motor Power | 2x 2.20kW (3.00hp) 4-POLE 1400rpm |
| Receiver Size | 500ltr |
| Piston Displacement | 42.40CFM (1200ltr/min) |
| Free Air Delivery (FAD) | 29.70CFM (848ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 8 cylinders |
| Noise Level | 74dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXTMP27090CP NARDI Extreme MP CP Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£7,170.07
£7,029.48
2% OFF
Free delivery in Channel Island
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | EXTMP27090CP |
| Capacity (L) | 270 |
| ITEM NO | EXTMP27090CP |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 75dB(A) |
A. It is a twin-motor, 6HP MP compressor with a 500 litre receiver for high-volume, low-pressure industrial applications at 10bar.
A. Two 2.20kW, 3.00hp four-pole motors at 1400rpm provide a total of 6HP from a 400v three-phase supply.
A. It offers 42.40CFM piston displacement and 29.70CFM free air, around 1200 and 848 litres per minute respectively.
A. It is rated to 145psi, equivalent to 10bar, suitable for many large-scale industrial air systems.
A. Multiple V-Twin cylinders with technopolymer piston rings and stainless valves deliver oil-free compressed air and reduce servicing requirements.
A. They reduce vibration and mechanical stress on crankshaft assemblies, improving reliability under continuous high-volume operation.
A. It limits contamination inside crankcases, extending valve plate life and maintaining consistent compressed-air output.
A. The large tank provides substantial storage, ensuring smooth supply during high-volume, low-pressure industrial processes and reducing compressor cycling.
A. It suits high-volume, low-noise industrial-grade applications requiring oil-free compressed air and large receiver capacity.
A. An adjustable air pressure regulator and pressure cut-off allow precise pressure control and automatic shutoff at selected levels.
A. It runs at roughly 74dB(A), relatively quiet for a twin-motor, eight-cylinder industrial compressor.
