Product Number: 90201500
Additional Information

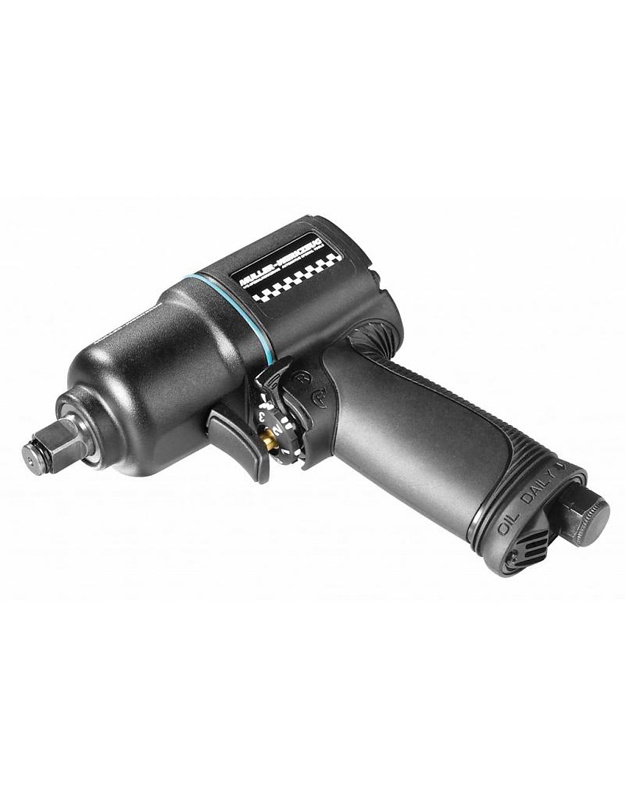

A NEW range of high quality impact wrenches that set the standard for Torque!
Smart design and ergonomically designed handle
7 vanes for extra power
Single-switch can be changed for easy forward or reverse operation
Easily adjustable torque regulator
Can be configured for right and left handed use
3 step power control (Step 1 = Max. 85Nm)
Lightweight magnesium composite housing
Specifications:
Drive - 1/2"
Max Torque Right - 500 Nm
Max Torque Left - 680 Nm
Weight - 1.08 kg
Length - 146.4 mm
Connecting Thread - 1/4" BSP
Hose - 9-13 mm
Air Consumption Right - 128 l/min
Air Consumption Left - 130 l/min
Speed (Empty) Right - 10200 Rpm
Speed (Empty) Left - 11500 Rpm
Working Pressure - 6.2 bar
Noise Level - 93.5 dBA
Vibration - 4.8 m/s
AIr tool oil recomended for use with this product, see ref 90215400
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimenstions (L x W x H) | 200 x 190 x 58 mm |
|---|---|
| Product Weight | 1.3 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
90201600 | Sykes Pickavant 90201600 RUBBER BOOT FOR 1/2" MINI & 3/8" IMPACT WRENCH | 1 Unit |
£30.91
£30.30
|
Add |
Air Impact Wrench Too Weak? Drive Size, Air Use and Wheel Nuts The wheel nuts won’t budge, the gun just rattles, or you’re unsure your compressor can run a bigger wrench. Match the drive size and torque to the...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 90201000-GREEN 1/2" IMPACT WRENCH - GREEN
£260.49
£255.38
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 90201000-ORANGE 1/2" IMPACT WRENCH - ORANGE
£260.49
£255.38
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 90201300 XS 1/2" IMPACT WRENCH - ULTRA SHORT
£225.29
£220.87
2% OFF
Free delivery in UK Mainland
|
Draper 41096 Composite Body Air Impact Wrench, 1/2" Sq. Dr.
£125.06
£122.61
2% OFF
Free delivery in UK Mainland
|
|||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 07202 | 07212 | 06792 | 01618 | 06795 | 90201000 | 90204500 | 90201000-GREEN | 90201000-ORANGE | 90201300 | 90202000 | 90202500 | 41096 | 84120 | 84128 |
| Type | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | ||||
| Capacity (L) | 269 | 184 | 127 | 425 | |||||||||||
| Drive Size (Inch) | 3 | 1 | 1 | 1/2 | 1 | 1/2 | 1 | 1/2 | 1/2 | 1/2 | 3/4 | 3/8 | 1/2 | 3/8 | 1 |
| Free Speed | 7,000 rpm | 10,000 rpm | 3,900 rpm | ||||||||||||
| Length (mm) | 174 | 300 | 90 | 90 | 65 | 130 | 65 | 10 | 10 | 13 | |||||
| Max Pressure (psi) | 90 | 90 | 90 | 87 | |||||||||||
| Torque Range (Nm) | 61 | 1084 | 813 | 102 | 200 | ||||||||||
| Weight (kg) | 6.8 | 17 | 17 | 1.5 | 65 | 35 | 2.2 | 90 | 70 | ||||||
| Show More | |||||||||||||||
A. It is a compact 1/2\" drive mini impact wrench from Sykes Pickavant’s high-torque range with magnesium composite housing.
A. It offers strong torque output, with step 1 around 85Nm and higher steps delivering significantly more, according to the description.
A. Technicians needing a small, powerful impact wrench for tight wheel arches or engine bay applications.
A. It is marketed as a mini 1/2\" impact wrench that sets the standard for torque with ergonomic design.
A. A single-switch forward/reverse control, easily adjustable torque regulator, three-step power control and seven vanes for extra power.
A. Yes, it is available on PartsForMachines when searching mini impact wrench machine parts and air tools.
A. It reduces fatigue and makes the wrench easier to handle in awkward positions.
A. It can be configured for either hand orientation and features a centrally located direction switch.
A. Around 200 × 190 × 58mm and roughly 1.3kg, as per the technical dat
A. It excels in confined spaces while larger wrenches handle heavier wheel or suspension fasteners."
