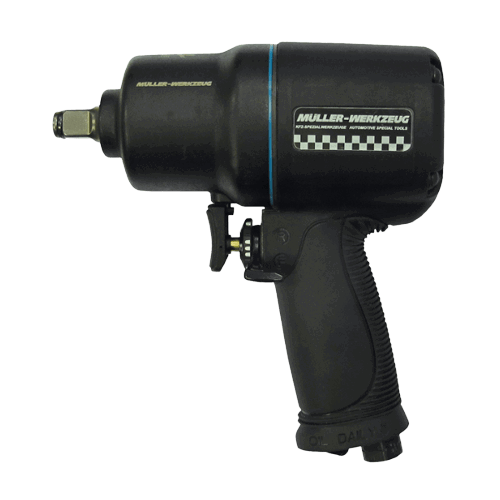

Product Number: 90201000
Additional Information
A NEW range of high quality impact wrenches that set the standard for Torque!
Smart design and ergonomically designed handle
7 vanes for extra power
Single-switch can be changed for easy forward or reverse operation
Easily adjustable torque regulator
Can be configured for right and left handed use
3 step power control
Lightweight magnesium composite housing
Specifications:
Drive - 1/2"
Max Torque Right - 1084 Nm
Max Torque Left - 1600 Nm
Weight - 1.8 kg
Length - 174 mm
Connecting Thread - 1/4" BSP
Hose - 9-13 mm
Air Consumption Right - 135 l/min
Air Consumption Left - 135 l/min
Speed (Empty) Right - 8100 Rpm
Speed (Empty) Left - 7800 Rpm
Working Pressure - 6.2 bar
Noise Level - 94.2 dBA
Vibration - 2.96 m/s
AIr tool oil recomended for use with this product, see ref 90215400
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Drive | 1/2" |
|---|---|
| Max Torque Right | 1084 Nm |
| Max Torque Left | 1600 Nm |
| Length | 174 mm |
| Connecting Thread | 1/4" BSP |
| Hose | 9-13 mm |
| Air Consumption Right | 135 l/min |
| Air Consumption Left | 135 l/min |
| Speed (Empty) Right | 8100 Rpm |
| Speed (Empty) Left | 7800 Rpm |
| Working Pressure | 6.2 bar |
| Noise Level | 94.2 dBA |
| Vibration | 2.96 m/s |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
90201100 | Sykes Pickavant 90201100 RUBBER BOOT FOR 1/2" IMPACT WRENCH | 1 Unit |
£32.78
£32.14
|
Add |
sykes-pickavant-12-impact-wrench.pdf
|
Open Now |
Air Impact Wrench Too Weak? Drive Size, Air Use and Wheel Nuts The wheel nuts won’t budge, the gun just rattles, or you’re unsure your compressor can run a bigger wrench. Match the drive size and torque to the...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 90201000-GREEN 1/2" IMPACT WRENCH - GREEN
£260.49
£255.38
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 90201000-ORANGE 1/2" IMPACT WRENCH - ORANGE
£260.49
£255.38
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 90201300 XS 1/2" IMPACT WRENCH - ULTRA SHORT
£225.29
£220.87
2% OFF
Free delivery in UK Mainland
|
Draper 41096 Composite Body Air Impact Wrench, 1/2" Sq. Dr.
£125.06
£122.61
2% OFF
Free delivery in UK Mainland
|
|||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 07202 | 07212 | 06792 | 01618 | 06795 | 90204500 | 90201000-GREEN | 90201000-ORANGE | 90201300 | 90202000 | 90202500 | 41096 | 84120 | 84128 | 83745 |
| Type | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | ||||
| Capacity (L) | 269 | 184 | 127 | 425 | |||||||||||
| Drive Size (Inch) | 3 | 1 | 1 | 1/2 | 1 | 1 | 1/2 | 1/2 | 1/2 | 3/4 | 3/8 | 1/2 | 3/8 | 1 | 1/2 |
| Free Speed | 7,000 rpm | 10,000 rpm | 3,900 rpm | 7,000 rpm | |||||||||||
| Length (mm) | 300 | 90 | 90 | 65 | 130 | 65 | 10 | 10 | 13 | ||||||
| Max Pressure (psi) | 90 | 90 | 90 | 87 | |||||||||||
| Torque Range (Nm) | 61 | 813 | 102 | 200 | 680 | ||||||||||
| Weight (kg) | 6.8 | 17 | 17 | 1.5 | 65 | 35 | 2.2 | 90 | 70 | 59 | |||||
| Show More | |||||||||||||||
A. It is a high-torque 1/2\" impact wrench with magnesium composite housing and ergonomic handle, part of Sykes Pickavant’s impact range.
A. It delivers up to 1,084Nm in right-hand direction and up to 1,600Nm in left-hand direction, according to the technical dat
A. Tyre and workshop technicians needing powerful tools for wheel nuts and heavy fasteners.
A. It is marketed as a 1/2\" drive impact wrench delivering up to 1,600Nm in reverse.
A. It has a single-switch forward/reverse control, adjustable torque regulator, 3-step power control and can be configured for right- or left-handed use.
A. Yes, it is available on PartsForMachines when searching 1/2\" impact wrench machine parts and tools.
A. Short overall length improves access in confined wheel arches and engine spaces.
A. Additional vanes increase torque output and efficiency of the pneumatic motor.
A. 90201000-GREEN and 90201000-ORANGE share specs but offer high-visibility housings in different colours.
A. Run at recommended 6.2bar with adequate airline size and lubrication to achieve rated torque and tool life."
