Product Number: 84128

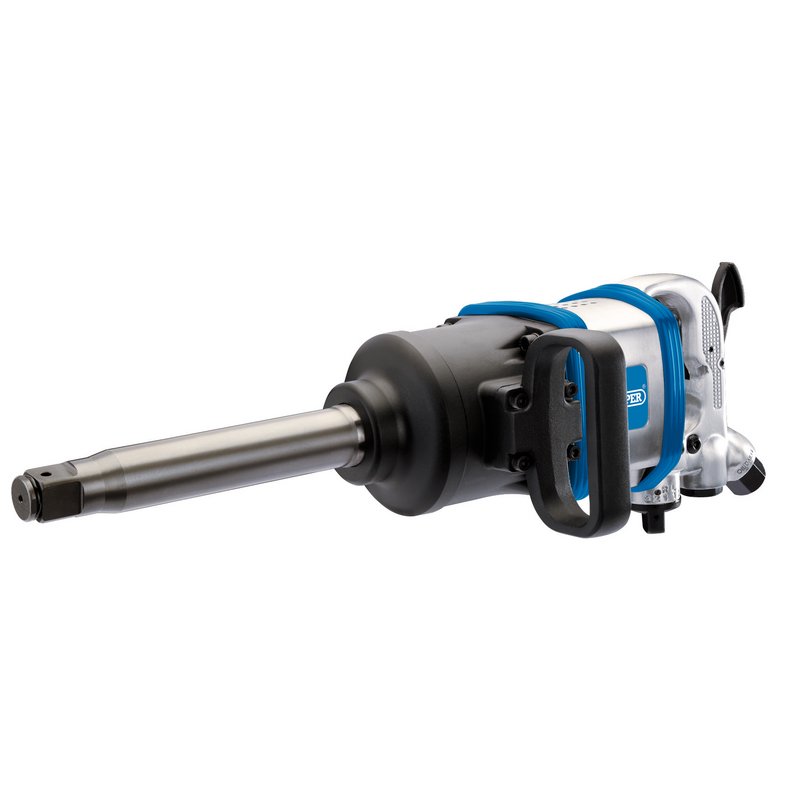

Heavy-duty 1" square drive air impact wrenches are essential where high-torque fastener removal and installation demands exceed the capability of smaller pneumatic tools — particularly on trucks, buses, and heavy machinery where wheel nuts, axle bolts, and chassis fixings call for serious breakaway force. The Draper 84128 answers that need with a pinless hammer mechanism delivering an ultimate torque output of 2,200Nm (1,620ft/lb) at an operating air pressure of 90psi (6.2bar), making it well suited to high-volume repair environments. The wrench is manufactured from heavy-duty materials and fitted with an ergonomic soft grip handle and a removable side handle, providing control and comfort even during prolonged use. Power delivery is managed through a high-tech three-speed reversible motor offering 3-position power regulation in forward and full power in reverse, with a side exhaust directing spent air away from the operator. The tool connects to the air supply via a 1/2" BSP airline connector, requiring a minimum hose size of 1/2" (13mm).Key operating figures from the specification sheet are as follows: free speed of 3,900rpm, average air consumption of 40cfm (1,132L/min), vibration level of 7.029m/s², and a total weight of 12.70kg. Supplied as a single unit: 1 x Air Impact Wrench, 1" Sq. Dr.
Pinless hammer air impact wrench. Manufactured from heavy duty materials attached to an ergonomic soft grip handle and a removable side handle providing comfort even when used for prolonged periods. Fitted with a high tech three speed reversible motor capable of 3-position power in forward and full power in reverse and a side exhaust. Attached with a 1/2" BSP airline connector. Ideal for high volume repair work on trucks and other heavy machinery.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Inlet | 1/2" BSP |
|---|---|
| Average Air Consumption | 40cfm (1,132L/min) |
| Free Speed | 3,900 rpm |
| Min Hose Size | 1/2" (13mm) |
| Operating Air Pressure | 90psi (6.2bar) |
| Square Drive | 1" |
| Ultimate Torque | 2,200Nm (1,620ft/lb) |
| Vibration Level | 7.029m/s2 |
| Weight | 12.70kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
00813 | Draper 813 SOCKET CAP SCREW M8X1.25X40MM | 1 Unit |
£10.13
£9.93
|
Add |
|
|
00819 | Draper 819 SPLIT WASHER LOCK 6MM | 1 Unit |
£10.13
£9.93
|
Add |
|
|
00835 | Draper 835 BEARING 6205Z | 1 Unit |
£13.02
£12.76
|
Add |
|
|
00836 | Draper 836 CYLINDER COVER | 1 Unit |
£29.68
£29.10
|
Add |
|
|
00838 | Draper 838 ROTOR | 1 Unit |
£53.22
£52.18
|
Add |
84128ins.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Chicago Pneumatic CP7748TL, 1/2" Torque-Limited Air Impact Wrench
£188.89
£183.39
3% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 90203500 1/4" IMPACT WRENCH
£194.75
£190.93
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 8941077487 | 90204500 | 90203500 | 90202000 | 90202500 | 84120 |
| Air Consumption(CFM) | 6 | |||||
| Drive Size(Inch) | 1/2 | 1 | 1/4 | 3/4 | 3/8 | 3/8 |
| Maximum Torque(Nm) | 102 | |||||
A. The Draper 84128 delivers an ultimate torque of 2,200Nm (1,620ft/lb), making it suitable for high-torque applications on trucks and heavy machinery.
A. The Draper 84128 uses a 1" square drive.
A. The wrench operates at 90psi (6.2bar) and requires a minimum hose size of 1/2" (13mm). The air inlet is 1/2" BSP.
A. The free speed is 3,900rpm and average air consumption is 40cfm (1,132L/min).
A. The Draper 84128 is fitted with a three-speed reversible motor offering 3-position power regulation in forward and full power in reverse.
A. The product is supplied as a single unit: 1 x Air Impact Wrench, 1" Sq. Dr.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we'll resolve the issue in line with our returns policy.
A. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
