Product Number: 90204500
Variations
Additional Information

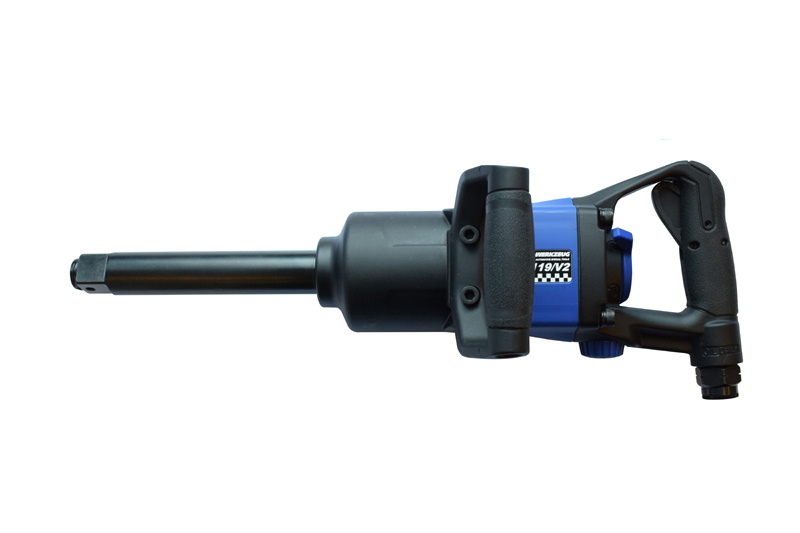

Powerful twin hammer mechanism
4 step power control
Smart design and ergonomically designed handle
Single-switch can be changed for easy forward or reverse operation
Easily adjustable torque regulator
Can be configured for right and left handed use
Lightweight magnesium composite housing
190mm long anvil
Specifications:
Drive - 1"
Max Torque Right - 2200Nm
Max Torque Left - 3100 Nm
Weight - 6.8 kg
Length - 470 mm
Connecting Thread - 1/2" NPT
Hose - 9-13 mm
Air Consumption Right - 295 l/min
Air Consumption Left - 305 l/min
Speed (Empty) Right - 4200 Rpm
Speed (Empty) Left - 4800 Rpm
Working Pressure - 6.2 bar
Noise Level - 110 dBA
Vibration - 6.5 m/s
AIr tool oil recomended for use with this product, see ref 90215400
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimenstions (L x W x H) | 600 x 300 x 300 mm |
|---|---|
| Product Weight | 6.8 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
90215400 | Sykes Pickavant 90215400 AIR TOOL OIL 30ML | 1 Unit |
£15.54
£15.24
|
Add |
|
90215500 | Sykes Pickavant 90215500 BAG FOR AIR TOOL SERVICE KIT | 1 Unit |
£25.57
£25.07
|
Add |
Air Impact Wrench Too Weak? Drive Size, Air Use and Wheel Nuts The wheel nuts won’t budge, the gun just rattles, or you’re unsure your compressor can run a bigger wrench. Match the drive size and torque to the...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Chicago Pneumatic CP0611-D28L, 1" D-Handle Air Impact Wrench
£3,874.94
£3,762.08
3% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP7769-6, 3/4" Air Impact Wrench
£580.98
£564.06
3% OFF
Free delivery in UK Mainland
|
Sealey CP20VXIWKIT Premier SV20 Brushless Cordless Impact Wrench Kit 20V 4Ah
£302.26
£296.21
2% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP8272-P, 3/4" Pistol Air Impact Wrench
£713.05
£692.28
3% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP5000, 1" Air Impact Wrench
£1,129.71
£1,096.81
3% OFF
Free delivery in UK Mainland
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 6151590170 | 8941077697 | CP20VXIWKIT | 6151590220 | T024585 |
| Type | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche |
| Drive Size (Inch) | 1 | 3/4 | 1/2 | 3/4 | 1 |
| Free Speed | 3500 rpm | 6500 rpm | 6500 rpm | 3700 rpm | |
| Length (mm) | 25 | 13 | 13 | 13 | |
| Torque Range (Nm) | 2440 | 1460 | 1450 | 1250 | 2800 |
| Weight (kg) | 10.4 | 75 | 3.3 | 16.2 | |
A. The 90204500 uses a 1" drive, making it suited to heavy-duty fastening and removal tasks such as wheel nuts and large fasteners on trucks and plant machinery.
A. The wrench delivers a maximum torque of 2,200 Nm in forward (right) and up to 3,100 Nm in reverse (left).
A. The wrench requires a working pressure of approximately 6.2 bar and consumes approximately 295 l/min in forward and 305 l/min in reverse. A hose of 9–13 mm is specified, and the connecting thread is 1/2" NPT.
A. Free speed is approximately 4,200 rpm in forward (right) and 4,800 rpm in reverse (left).
A. The 90204500 features a four-step power control, and the torque regulator is easily adjustable to suit the demands of the task. Direction between forward and reverse is changed via a single reversible switch.
A. Yes. The wrench can be configured for right- or left-handed operation, and the handle is ergonomically designed to reduce user fatigue during extended use.
A. The wrench weighs 6.8 kg and has a length of 470 mm, including a 190 mm long anvil. Product packaging dimensions are 600 x 300 x 300 mm.
A. The 90204500 has a stated noise level of 110 dB and a vibration level of approximately 6.5 m/s². Operators should observe appropriate health and safety measures during prolonged use.
A. Yes. The source data notes that air tool oil is recommended for use with this product, referencing Sykes Pickavant part number 90215400.
