Product Number: 83745
Variations

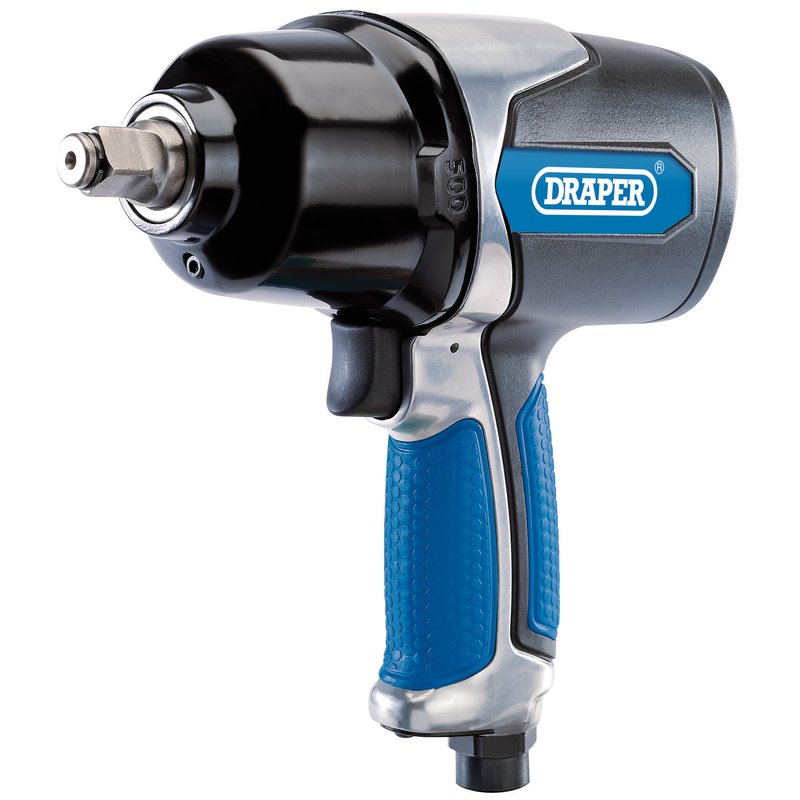

Removing seized fasteners and high-torque bolts places significant demands on both the tool and the operator. The Draper 83745 air impact wrench addresses this with a heavy duty hammer mechanism capable of delivering an ultimate torque of 680Nm (500ft/lb), making it suited to demanding workshop and automotive applications. The wrench is manufactured with a lightweight aluminium housing attached to an ergonomic soft grip handle, providing comfort even when used for prolonged periods. A high-tech three-speed reversible motor offers three-position power in forward and full power in reverse, giving the operator precise control over output across a range of fastening and removal tasks.Operating at 90psi (6.2bar) with a free speed of 7,000rpm and an average air consumption of 6.5cfm (184L/min), the tool requires a minimum hose size of 3/8" internal diameter. The air inlet accepts a 1/4" BSP fitting, and a 1/4" BSP airline connector is included in the supply. The handle exhaust directs expelled air away from the operator and the work area. Vibration level is rated at 4.35m/s² and the tool weighs 2.59kg.Supplied with one air impact wrench and one 1/4" BSP airline connector, the Draper 83745 combines a robust hammer mechanism with an ergonomic, rubber-protected grip and a compact aluminium construction for extended-use productivity in professional workshop environments.
Heavy duty hammer mechanism air impact wrench. Manufactured with a lightweight aluminium housing attached to an ergonomic soft grip handle providing comfort even when used for prolonged periods. Fitted with a high tech three speed reversible motor capable of 3-position power in forward and full power in reverse. Attached with a handle exhaust and a 1/4" BSP airline connector.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 6.5cfm (184L/min) |
| Free Speed | 7,000 rpm |
| Min Hose Size | 3/8” I/D |
| Operating Air Pressure | 90psi (6.2bar) |
| Square Drive | 1/2" |
| Ultimate Torque | 680Nm (500ft/lb) |
| Vibration Level | 4.35m/s2 |
| Weight | 2.59kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
83745ins.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Chicago Pneumatic CP7741, 1/2" Air Impact Wrench
£165.78
£160.95
3% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP7741-2, 1/2" Air Impact Wrench
£194.47
£188.81
3% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP6500-RS, 1/2" Pistol Air Impact Wrench
£425.14
£412.76
3% OFF
Free delivery in UK Mainland
|
Draper 41096 Composite Body Air Impact Wrench, 1/2" Sq. Dr.
£125.06
£122.61
2% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP6500-RSR, 1/2" Pistol Air Impact Wrench
£425.14
£412.76
3% OFF
Free delivery in UK Mainland
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 8941077410 | 8941077412 | T025214 | 41096 | T025216 |
| Type | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche |
| Drive Size (Inch) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Free Speed | 10000 rpm | 10000 rpm | 6400 rpm | 7,000 rpm | 6400 rpm |
| Length (mm) | 10 | 10 | 10 | 10 | 10 |
| Torque Range (Nm) | 690 | 690 | 680 | 813 | 680 |
| Weight (kg) | 25 | 35 | 65 | 2.2 | 65 |
A. The Draper 83745 delivers an ultimate torque of 680Nm (500ft/lb), as specified in the product technical data.
A. The tool operates at 90psi (6.2bar) with an average air consumption of 6.5cfm (184L/min). A minimum hose size of 3/8" internal diameter is required.
A. The wrench features a 1/2" square drive and a 1/4" BSP air inlet. A 1/4" BSP airline connector is included in the supply.
A. Yes. The three-speed reversible motor provides three-position power adjustment in the forward direction and full power in reverse.
A. The tool has a free speed of 7,000rpm and weighs 2.59kg. Vibration level is rated at 4.35m/s².
A. The supply includes one 1/2" square drive air impact wrench and one 1/4" BSP airline connector.
