Product Number: 6151600410
Variations

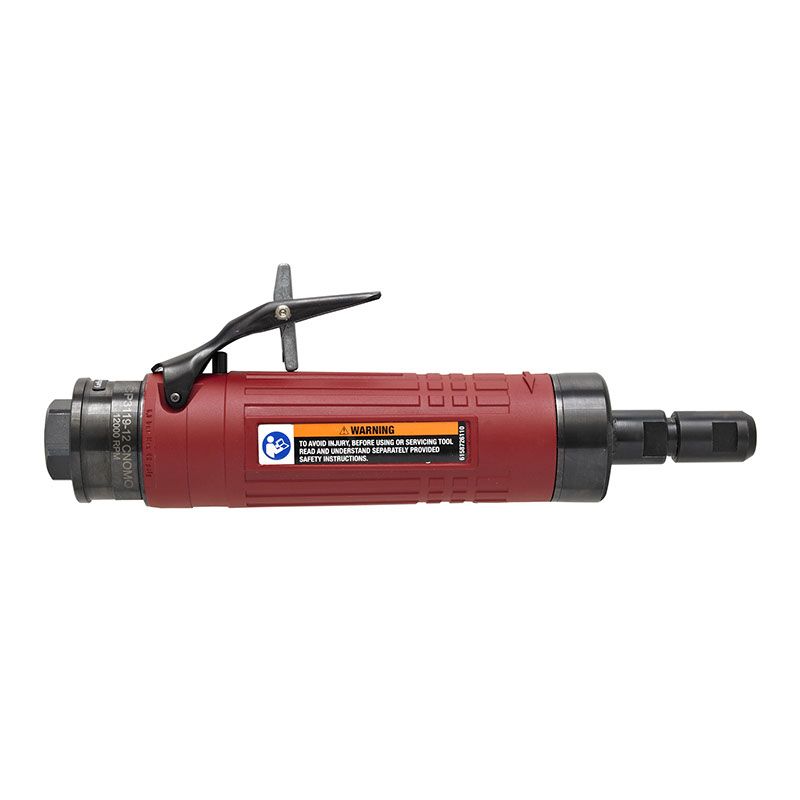

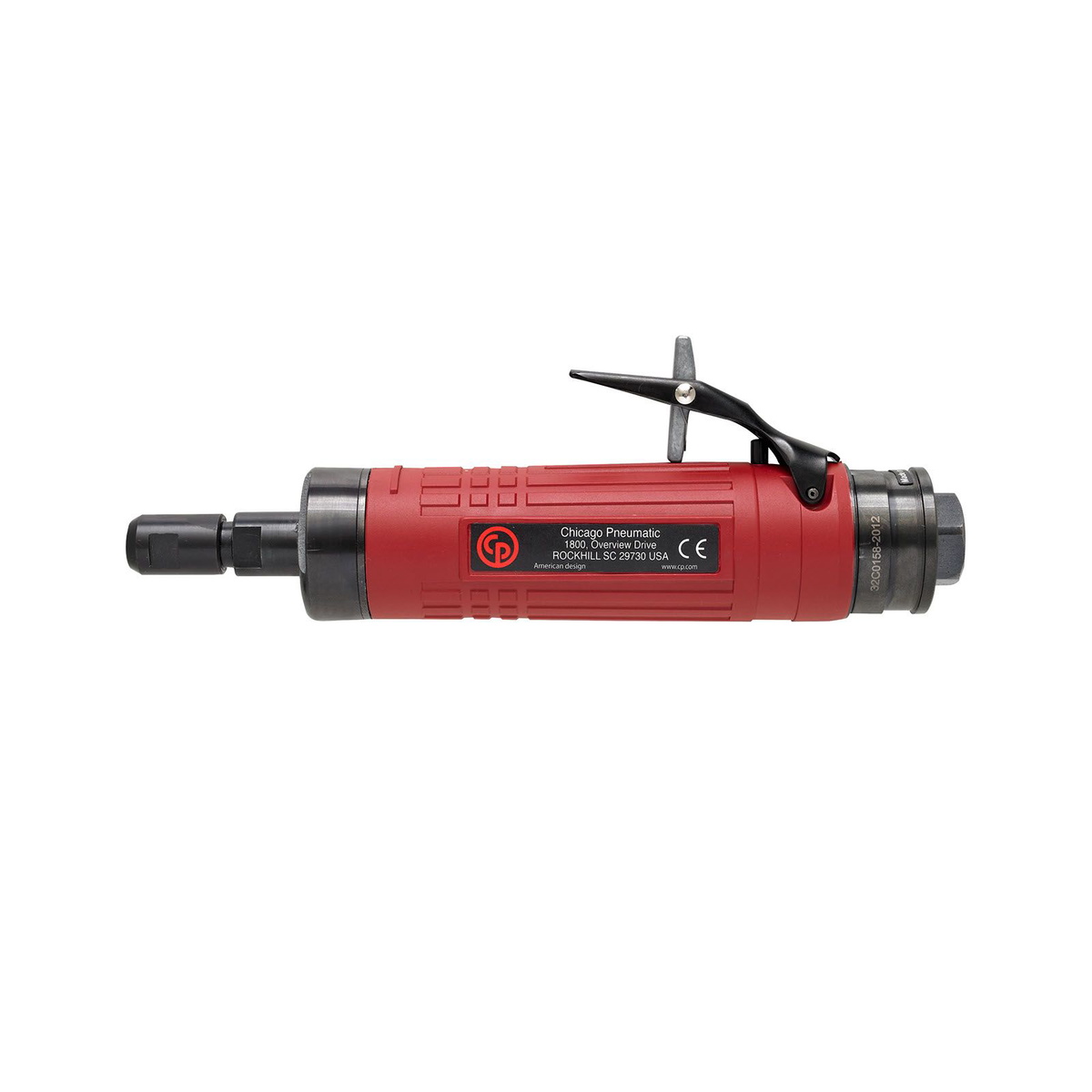

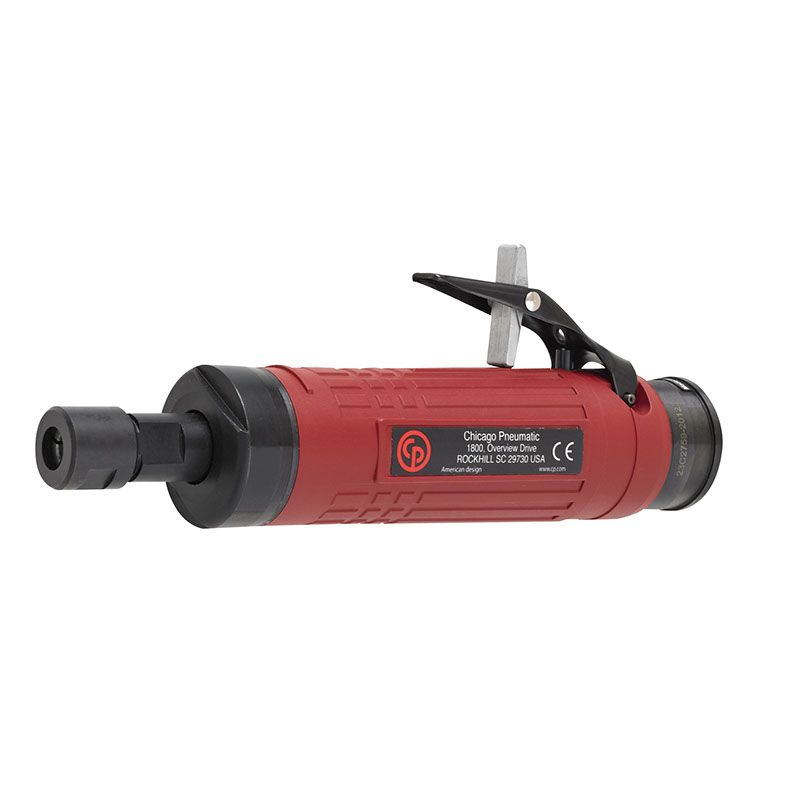

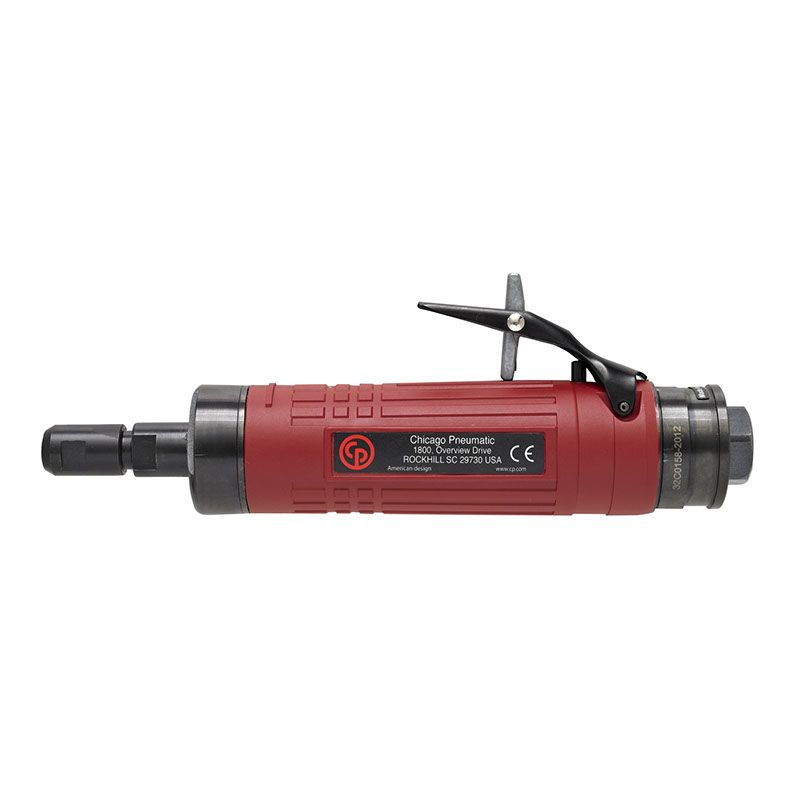

Delivering exceptional power in a precisely engineered package, the Chicago Pneumatic CP3119-22 CNOMO air die grinder gives professionals a reliable edge when tackling demanding metalworking, grinding, and finishing tasks. Built to CNOMO standards, this pneumatic die grinder combines a robust 900 W maximum power output with a 22,000 RPM free speed, ensuring rapid material removal and smooth surface preparation across a wide range of applications. Weighing just 1 kg and measuring 222 mm in length, the CP3119-22 CNOMO strikes an ideal balance between power and manoeuvrability. The compact, pencil-style form factor makes it well suited to confined spaces and intricate work where larger tools simply cannot reach. Its 1/4'' (6 mm) collet accepts a broad selection of rotary burrs, mounted points, and grinding accessories, maximising versatility on the shop floor. Air consumption at free speed registers 13 l/s, reflecting an efficient design that works with standard workshop compressor setups without unnecessary strain on the air supply system. The tool's ergonomic profile reduces operator fatigue during extended use, while its CNOMO compliance ensures compatibility with recognised industrial specifications, making it a trusted choice in automotive, aerospace, and general fabrication environments. This cp die grinder is ideally suited to deburring castings, weld blending, porting cylinder heads, and precision finishing work where consistent performance and tool longevity are non-negotiable requirements.
Product Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Length (L) | 222 mm |
|---|---|
| Weight | 1 kg |
| Max power | 900 W |
| Free Speed | 22000 rpm |
| Air consumption at free speed | 13 l/s |
| Air consumption at load | 18 l/s |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 92 dB(A) |
| Sound Pressure | 81 dB(A) |
| Vibration (m/s²) | <2.5 |
| Angle Type | Straight |
| Collet max capacity | 15/64 (6.0mm) |
| Collet/Collet holder/Collet nut type | Cnomo type |
| Governor type | Ball |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SA654 Air Die Grinder Maxi Straight Premier
£78.06
£76.53
2% OFF
Free delivery in UK Mainland
|
Sealey SA652 Air Die Grinder Straight Midi 25000rpm 1/4"BSP
£73.36
£71.92
2% OFF
Free delivery in UK Mainland
|
Sealey SA673 Air Micro Die Grinder 3mm Collet 58000rpm
£61.53
£60.32
2% OFF
Free delivery in UK Mainland
|
Sealey GSA674 Air Die Grinder 90° Angle Midi for GSA675
£57.60
£56.47
2% OFF
Free delivery in UK Mainland
|
Sealey GSA672 Generation Series Long Reach Air Die Grinder
£63.12
£61.88
2% OFF
Free delivery in UK Mainland
|
Sealey SA656 Air Die Grinder 260mm Long Reach Maxi Premier - 22,000rpm, 1/4"BSP
£115.02
£112.76
2% OFF
Free delivery in UK Mainland
|
Sealey SA655 Air Die Grinder 90° Maxi Premier - 18000rpm, 6mm Collet
£103.87
£101.83
2% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP3109-19, 1/4"(6mm) Straight Air Die Grinder
£734.94
£713.53
3% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP3019-20, 1/4"(6mm) Straight Air Die Grinder
£564.39
£547.95
3% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP3019-25, 1/4"(6mm) Straight Air Die Grinder
£564.87
£548.42
3% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GSA671 | SA654 | SA653 | SA652 | SA673 | SA1004 | SA671 | GSA674 | SA674 | GSA672 | SA656 | SA655 | 6151600020 | 6151600100 | 6151600110 |
| Free Speed(RPM) | 22000 | 22000 | 22000 | 25000 | 58000 | 25000 | 22000 | 20000 | 20000 | 20000 | 22000 | 18000 | 19000 | 20000 | 25000 |
| Air Consumption(CFM) | 7 | 4 | 3 | 3 | 3 | 11.3 | 7 | 4 | 4 | 4 | 4 | 4 | |||
| Collet Size(mm) | 3, 6 | 6 | 6 | 6 | 3 | 6 | 3 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Tool Design | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Angle | Angle | Straight | Straight | Straight | Straight | Straight | Straight |
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase.
Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification.
Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Standard UK Mainland delivery is 3–5 working days.
A. The CP3119-22 runs at 22000 rpm free speed with 900 W maximum power output, suited to intensive grinding and deburring.
A. The CP3119-22 accepts a 15/64 (6.0mm) collet - compatible with standard 1/4" carbide burrs, mounted points, and abrasives.
A. The CP3119-22 is a straight die grinder weighing 1 kg at 222 mm length, suited to straight access grinding applications.
A. The CP3119-22 has a sound pressure of 81 dB(A) and vibration of <2.5 m/s² - hearing and vibration PPE must be worn during operation.
A. The CP3119-22 uses a ball governor for controlled overspeed protection during heavy grinding operations.
A. The CP3119-22 is engineered for professional industrial use - balanced and easy to handle for sustained grinding use.
A. The CP3119-22 features an aluminium alloy body with composite over-sleeve insulation for durability and reduced tool weight.
A. The CP3119-22 requires a minimum 10mm (3/8") hose at 5m or 3/8" (16ft) for full performance at 6.3 bar working pressure.
A. The CP3119-22 consumes 13 l/s air at load, requiring a 3/8" BSP inlet at 6.3 bar max working pressure.
