Product Number: ATC6
Variations

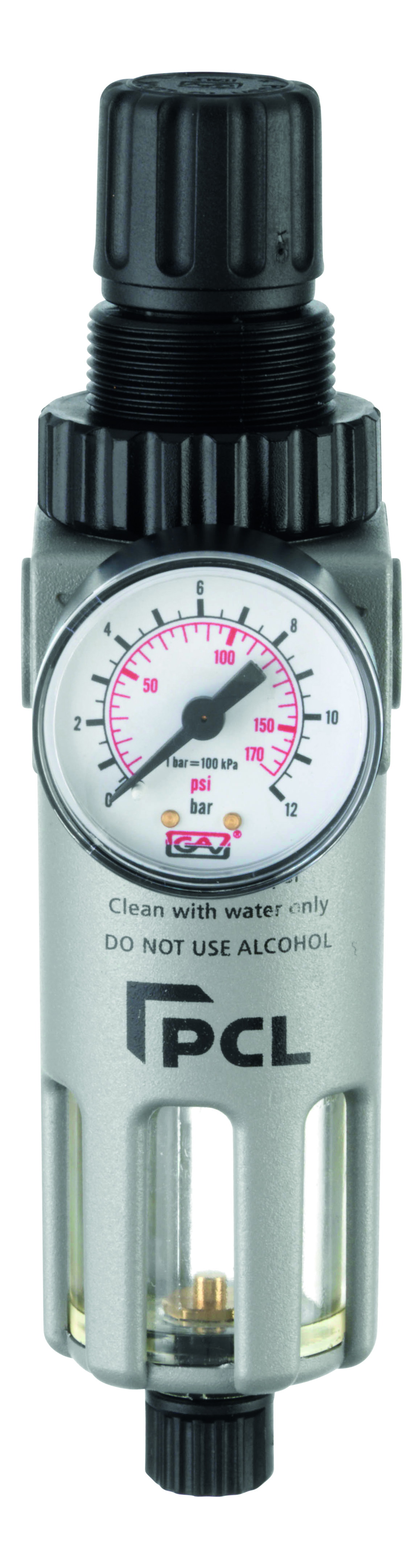

Moisture and particulates in a compressed air line cause premature tool wear and inconsistent output. The PCL ATC6 is a filter/regulator unit for compressed air systems, fitted with 1/4 ports and adjustable over a range of 0–10 bar (0–145 psi), with a maximum inlet pressure of 12 bar and a flow capacity of 1,800 l/min.
The unit features a polycarbonate bowl that allows the user to monitor the filter element condition and the level of collected liquid at a glance. The bowl is surrounded by a protective metal guard as a safety measure against excessive pressures, temperatures, or aggressive chemicals. Filtration is rated to 10 microns, eliminating fine particulates from the airflow before they reach downstream equipment.
With a flow rate of 1,800 l/min, the ATC6 is suited to workshop and industrial compressed air installations where consistent air quality and regulated pressure are required. The 1/4 BSP port sizing makes it compatible with standard quarter-inch airline fittings and pipework.
PCL manufacture air treatment equipment in Sheffield, UK, and have done so since 1938. The ATC6 is part of HORNGROUP.
Product Features :
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 0.409 |
| BoxLength | 185mm |
| BoxWidth | 110mm |
| BoxHeight | 50.0mm |
| EAN | 5014875890500 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
ATS6 | PCL ATS6 Replacement Bowl Kit (Includes Parts 29, 34, 35 & 36) for ATC6, ATCFRL6 & ATF6 | 1 Unit |
£35.02
£34.33
|
Add |
|
SPRFR180 | PCL SPRFR180 Filter for ATCFRL6, ATC6 & ATF6 (Part 25) | 1 Unit |
£17.30
£16.96
|
Add |
Standard Delivery: £8.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
PCL ATCFRL12 Air Treatment Filter/Regulator/Lubricator 0-170 psi/0-12 bar, 1/2 Ports
£115.83
£113.56
2% OFF
|
PCL ATCFRL6 Air Treatment Filter/Regulator/Lubricator 0-145 psi/0-10 bar, 1/4 Ports
£76.41
£74.91
2% OFF
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ATCFRL12 | ATCFRL6 | ATR12 | ATR6 | ATF12 |
| Type | Filter/Regulator | Filter/Regulator | Regulator | Regulator | Spare Part |
| Pressure Range | 0-170 psi | 0-145 psi | 0-170 psi | 0-145 psi | |
A. The ATC6 is the PCL Air Treatment Filter/Regulator 0-145 psi/0-10 bar, 1/4 Ports. The PCL ATC6 is a filter/regulator unit for compressed air systems, fitted with 1/4 ports and adjustable over a range of 0–10 bar (0–145 psi), with a maximum inlet pressure of 12 bar and a flow capacity of 1,800 l/min.
A. compatible with standard quarter-inch airline fittings and pipework.
A. Yes — this is a genuine PCL product, supplied under the PCL brand of Pneumatic Components Ltd, Sheffield, UK.
A. Yes — this product is part of a PCL range with sibling variants in alternative sizes, connections or configurations; see the product variants for options.
A. The PCL ATC6 is a filter/regulator unit for compressed air systems, fitted with 1/4 ports and adjustable over a range of 0–10 bar (0–145 psi), with a maximum inlet pressure of 12 bar and a flow capacity of 1,800 l/min.
A. PCL (Pneumatic Components Ltd), the Sheffield, UK based world leader in tyre inflation and compressed air products, part of HORNGROUP.
