Product Number: 1439-100-S20

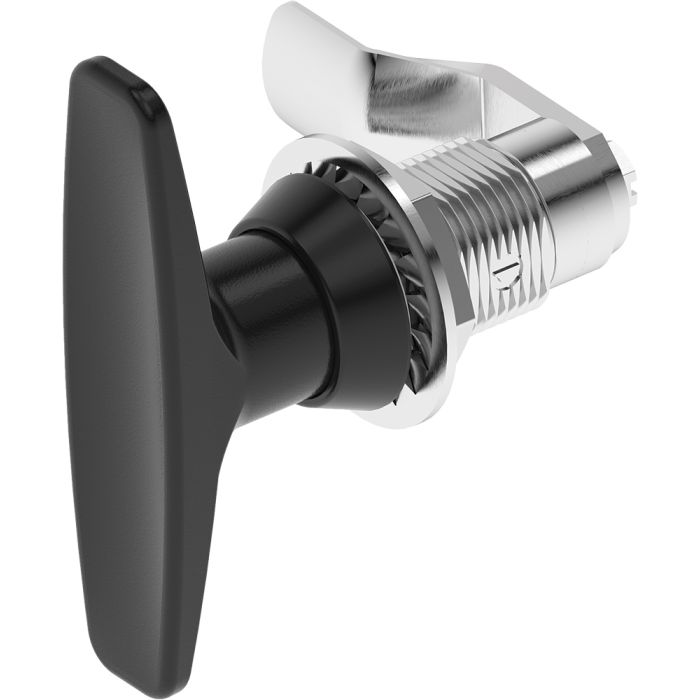

The 1439-100-S20 is a non-locking T-handle compression latch with fixed grip, part of the Model 1439 series. Designed for panel-mounting applications requiring a secure, tool-free compression closure, it is suited to enclosures, cabinets, and industrial housings where an IP65-rated seal is required.
The latch is constructed from die-cast zinc alloy throughout, with the housing and cylinder finished in black powder coat. The cam and shaft are manufactured from mild steel with a zinc-plated finish, providing corrosion resistance suited to workshop and industrial environments.
The unit accepts a panel cutout of 19.5 x 19.5 mm and accommodates panel thicknesses from 1 mm to 20 mm. The barrel stands 32 mm in height. The cam option spans a range available within the series, allowing selection to suit the specific door or panel geometry required. The latch carries IP65 ingress protection, confirming resistance to dust ingress and low-pressure water jets.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Barrel Height | 32mm |
|---|---|
| Cam Option | Range available |
| Colour/Finish | Black Powder Coated |
| IP Rating | IP65 |
| Lock Types | Non Locking |
| Material | Zinc Die, Zinc Die Body, Zinc Die Handle |
| Model | 1439 |
| Panel Cutout | 19.5x19.5mm |
| Panel Thickness | 1 - 20mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 1421-05 | 1421-04 | 1421-20 | 1421-08 | 1422-060 | 1422-013 | 1422-047 | 1422-037 | 1422-068 | 1422-048 | 1422-038 | 1422-05 | 1422-20 | 1422-07 | 1423-048-30.S01 |
A. The latch requires a panel cutout of 19.5 x 19.5 mm and is compatible with panel thicknesses from 1 mm to 20 mm.
A. The 1439-100-S20 carries an IP65 rating, indicating full protection against dust ingress and resistance to low-pressure water jets.
A. The housing and cylinder are die-cast zinc alloy with a black powder-coated finish. The cam and shaft are mild steel with a zinc-plated finish.
A. No. The 1439-100-S20 is a non-locking compression latch. It provides secure compression closure without a key or cylinder lock mechanism.
A. The barrel height is 32 mm.
A. Yes. The source data confirms a range of cam options is available within the Model 1439 series, allowing selection to suit different panel or door geometries.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
