Product Number: 54419
Variations

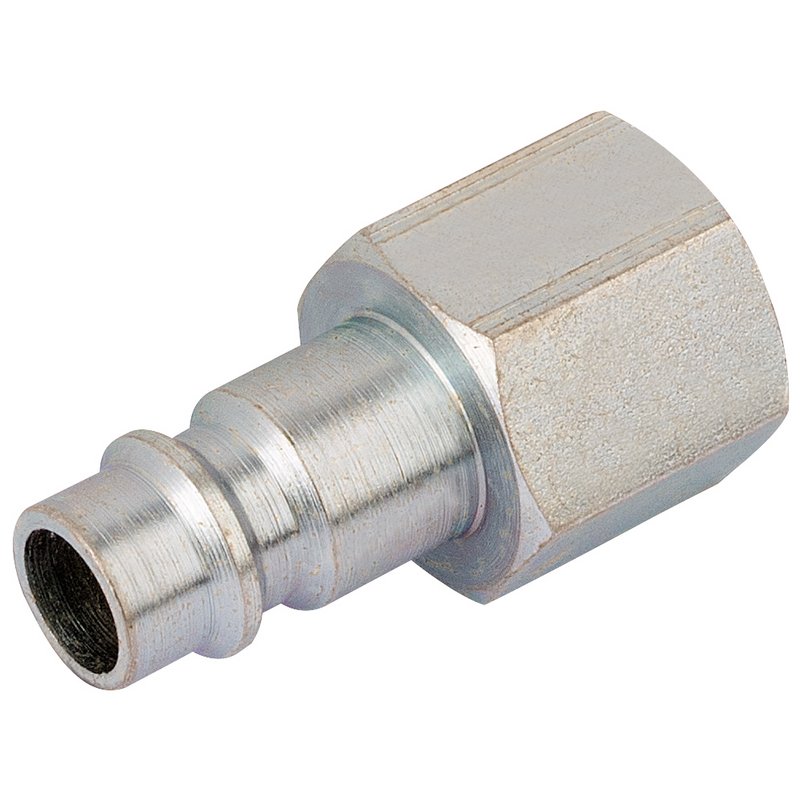

Compressed air systems demand reliable coupling components that maintain flow integrity under sustained industrial use. The Draper 54419 is a 1/4" BSP female nut PCL Euro coupling adaptor engineered for heavy duty, high flow applications and tested to over one million cycles to confirm long-term durability in demanding workshop and industrial environments. The adaptor connects to most popular and European adaptor profiles, including Cejn and Rectus systems, providing broad compatibility across professional air tool setups. Its hard wearing steel construction is zinc passivated to significantly improve corrosion resistance, making it well suited to workshop conditions where moisture and contaminants are a concern. The performance specifications confirm suitability for high-demand use: flow capacity at 6 bar inlet with a 0.5 bar pressure drop reaches 78 cfm (2,200 L/min), the nominal flow diameter is 7.4 mm, and the maximum working pressure is 500 psi (35 bar). The test pressure is rated at 725 psi (50 bar) and the maximum burst pressure at 2,030 psi (140 bar). The operating temperature range spans -40°C to 100°C, covering the full spectrum of typical workshop conditions. Supplied individually as a sold-loose unit, this adaptor is a practical replacement or additional coupling for professional air line installations where performance and cycle-life assurance are essential.
For heavy duty high flow applications, tested to over 1 million cycles, connects to most popular and European adaptor profiles (Cejn, Rectus etc.), zinc passivated to significantly improve corrosion resistance, hard wearing steel construction. Sold loose.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| 0.5bar Pressure Drop | 78cfm (2200L/min) |
|---|---|
| Max Burst Pressure | 2030psi (140bar) |
| Max Working Pressure | 500psi (35bar) |
| Nominal Flow Diameter | 7.4mm |
| Temperature Range | -40 to 100°C |
| Test Pressure | 725psi (50bar) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 54416 3/8" BSP Male Nut PCL Euro Coupling Adaptor (Sold Loose)
£12.50
£12.25
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 54414 | 54415 | 54417 | 25793 | 54416 |
| Type | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor |
| Drive | 1/4" | 1/2" | 3/8" | 3/8" | |
| Family | Euro | Euro | Euro | PCL | Euro |
| Thread | 1/8" | 1/4" | 1/2" | 3/8" | 3/8" |
A. At a 6 bar inlet with a 0.5 bar pressure drop, the adaptor delivers a flow capacity of 78 cfm (2,200 L/min), supported by a nominal flow diameter of 7.4 mm, making it suitable for heavy duty, high flow compressed air applications.
A. The maximum working pressure is 500 psi (35 bar). The test pressure is 725 psi (50 bar) and the maximum burst pressure is 2,030 psi (140 bar).
A. The adaptor connects to most popular and European adaptor profiles, including Cejn and Rectus systems, providing broad compatibility across professional air line installations.
A. The operating temperature range is -40°C to 100°C, covering the full spectrum of typical workshop and industrial conditions.
A. The adaptor features a zinc passivated finish, applied to significantly improve corrosion resistance, combined with a hard wearing steel construction for long-term durability.
A. The Draper 54419 has been tested to over one million cycles, confirming its suitability for sustained heavy duty use in professional workshop and industrial environments.
