Product Number: 54417
Variations

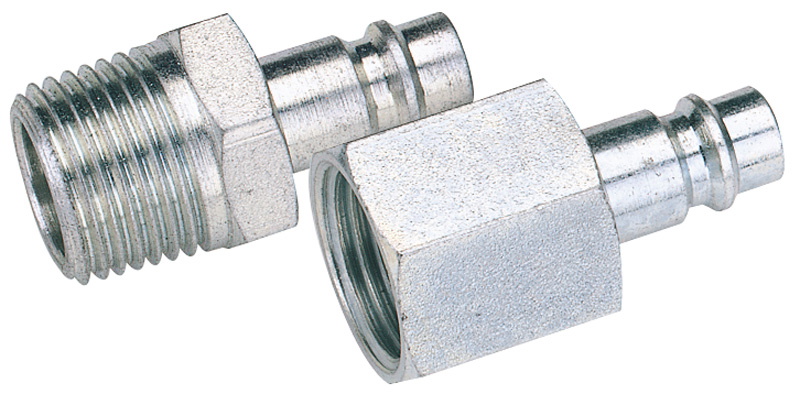

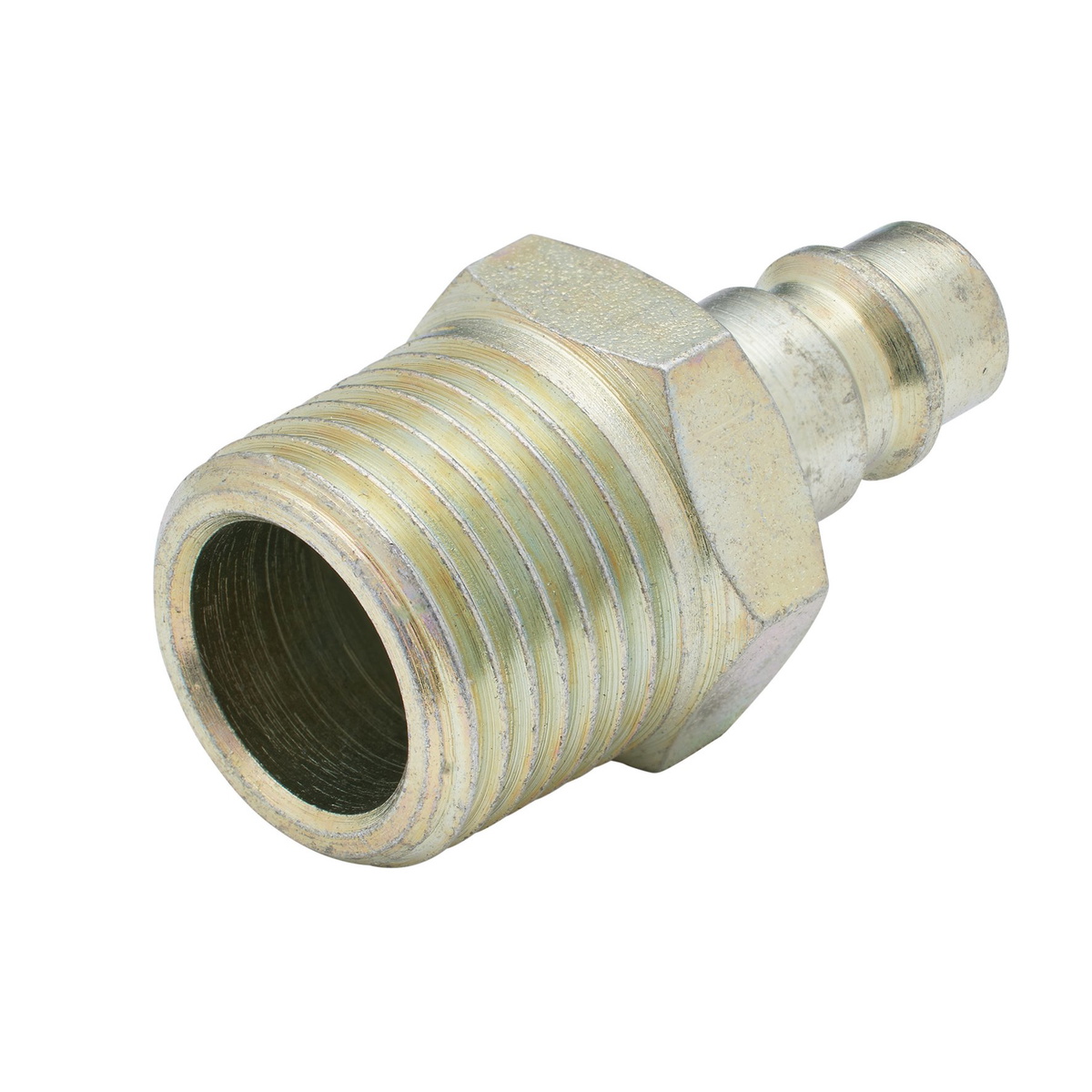

Compressed air systems operating at high flow rates place significant demand on coupling components, making the choice of adaptor critical to maintaining system performance and long-term reliability. The Draper 54417 1/2" BSP Male Nut PCL Euro Coupling Adaptor is engineered for heavy duty high flow applications, with a flow capacity of 78cfm (2200L/min) measured at 6 bar inlet pressure and a 0.5 bar pressure drop through a nominal flow diameter of 7.4mm. Constructed from hard wearing steel and zinc passivated to significantly improve corrosion resistance, this adaptor is built to withstand sustained workshop use. It has been tested to over 1 million cycles, providing confidence in its durability across demanding operating environments. The maximum working pressure is 500psi (35bar), the test pressure is 725psi (50bar), and the maximum burst pressure is 2030psi (140bar). The operating temperature range extends from -40 to 100°C. Compatibility is broad: the adaptor connects to most popular and European adaptor profiles, including Cejn and Rectus, making it a versatile solution across mixed-tool workshops. Supplied with a 1/2" BSP male nut connection, it is sold loose as a single unit, allowing targeted replacement or system expansion without unnecessary quantity commitments.
For heavy duty high flow applications, tested to over 1 million cycles, connects to most popular and European adaptor profiles (Cejn, Rectus etc.), zinc passivated to significantly improve corrosion resistance, hard wearing steel construction. Sold loose.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| 0.5bar Pressure Drop | 78cfm (2200L/min) |
|---|---|
| Max Burst Pressure | 2030psi (140bar) |
| Max Working Pressure | 500psi (35bar) |
| Nominal Flow Diameter | 7.4mm |
| Temperature Range | -40 to 100°C |
| Test Pressure | 725psi (50bar) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 54416 3/8" BSP Male Nut PCL Euro Coupling Adaptor (Sold Loose)
£12.50
£12.25
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 54414 | 54415 | 54419 | 25793 | 54416 |
| Type | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor |
| Drive | 1/4" | 1/4" | 3/8" | 3/8" | |
| Family | Euro | Euro | Euro | PCL | Euro |
| Thread | 1/8" | 1/4" | 1/4" | 3/8" | 3/8" |
A. The adaptor delivers a flow capacity of 78cfm (2200L/min), measured at a 6 bar inlet pressure with a 0.5 bar pressure drop through a nominal flow diameter of 7.4mm.
A. The maximum working pressure is 500psi (35bar). The adaptor has a test pressure of 725psi (50bar) and a maximum burst pressure of 2030psi (140bar).
A. The adaptor is rated for use across a temperature range of -40 to 100°C.
A. It connects to most popular and European adaptor profiles, including Cejn and Rectus profiles.
A. The Draper 54417 has been tested to over 1 million cycles, confirming its suitability for sustained heavy duty use.
A. The adaptor is zinc passivated to significantly improve corrosion resistance, alongside its hard wearing steel construction.
