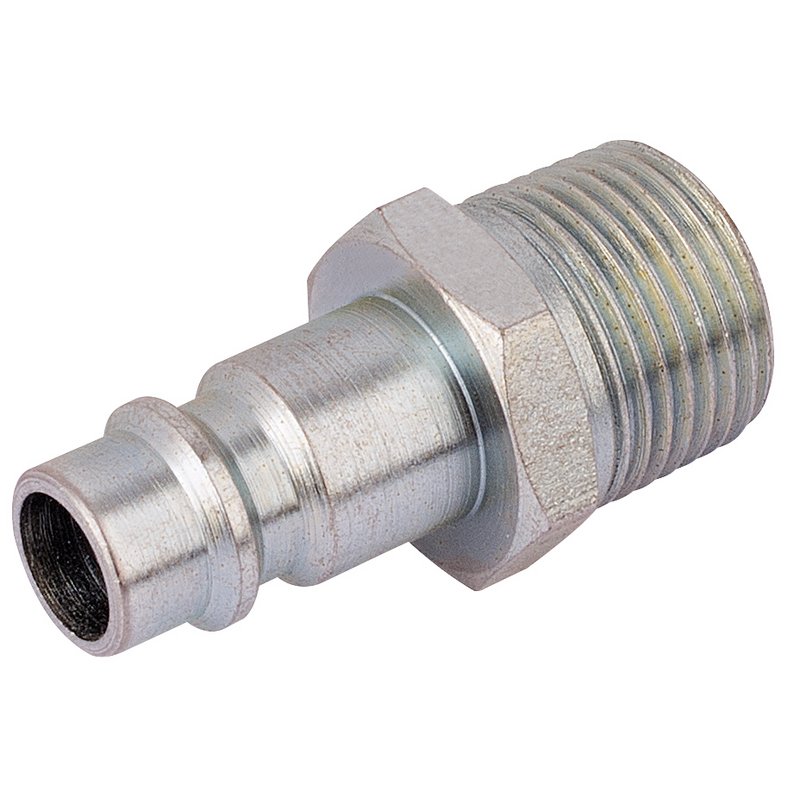

Air line connections in demanding workshop and industrial environments require couplings that can withstand repeated cycling without degradation in flow performance. The Draper 54416 3/8" BSP Male Nut PCL Euro Coupling Adaptor is engineered for heavy duty, high flow applications, offering a reliable interface between compressed air lines and equipment wherever a PCL Euro-pattern connection is required. Constructed from hard wearing steel and zinc passivated to significantly improve corrosion resistance, this adaptor is built to endure workshop conditions over the long term. It has been tested to over one million cycles, demonstrating the mechanical durability expected in professional trade and industrial settings. The coupling connects to most popular and European adaptor profiles, including Cejn and Rectus, making it broadly compatible across common workshop setups. The flow credentials are substantive: at 6 bar inlet with a 0.5 bar pressure drop, the adaptor delivers a flow capacity of 78 cfm (2,200 L/min). Maximum working pressure is rated at 500 psi (35 bar), with a test pressure of 725 psi (50 bar) and a maximum burst pressure of 2,030 psi (140 bar). The nominal flow diameter is 7.4 mm, and the operating temperature range spans -40°C to 100°C, covering the demands of most workshop and production environments. Supplied as a single unit (sold loose), the Draper 54416 is a straightforward replacement or system-build component for 3/8" BSP male nut PCL Euro coupling configurations.
For heavy duty high flow applications, tested to over 1 million cycles, connects to most popular and European adaptor profiles (Cejn, Rectus etc.), zinc passivated to significantly improve corrosion resistance, hard wearing steel construction. Sold loose.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| 0.5bar Pressure Drop | 78cfm (2200L/min) |
|---|---|
| Max Burst Pressure | 2030psi (140bar) |
| Max Working Pressure | 500psi (35bar) |
| Nominal Flow Diameter | 7.4mm |
| Temperature Range | -40 to 100°C |
| Test Pressure | 725psi (50bar) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 25793 | 54420 | 54414 | 54415 | 54417 |
| Type | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor |
| Drive | 3/8" | 3/8" | 1/4" | 1/2" | |
| Family | PCL | Euro | Euro | Euro | Euro |
| Thread | 3/8" | 3/8" | 1/8" | 1/4" | 1/2" |
A. The Draper 54416 features a 3/8" BSP male nut thread, making it compatible with standard 3/8" BSP air line fittings commonly found in workshop and industrial setups.
A. The maximum working pressure is 500 psi (35 bar). The adaptor has also been tested to a test pressure of 725 psi (50 bar) and carries a maximum burst pressure rating of 2,030 psi (140 bar).
A. At 6 bar inlet pressure with a 0.5 bar pressure drop, the adaptor delivers a flow capacity of 78 cfm (2,200 L/min), making it suited to heavy duty, high flow compressed air applications.
A. It connects to most popular and European adaptor profiles, including Cejn and Rectus, providing broad compatibility across common workshop and industrial compressed air systems.
A. The operating temperature range is -40°C to 100°C, covering the conditions found in the vast majority of workshop and industrial environments.
A. The adaptor is manufactured from hard wearing steel and is zinc passivated to significantly improve corrosion resistance, enhancing its durability in workshop conditions.
A. The coupling adaptor has been tested to over one million cycles, reflecting the mechanical durability required for professional trade and industrial use.
