Product Number: 54407
Variations

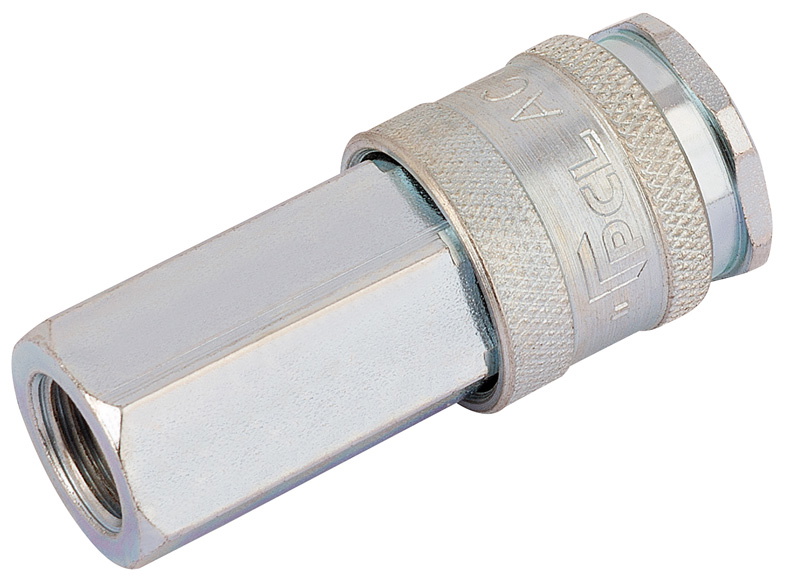

Demanding pneumatic systems require couplings that can handle sustained high-flow operation without fatigue or corrosion. The Draper 54407 is a 1/4" BSP parallel Euro coupling with female thread, engineered for heavy-duty high-flow applications and sold loose for individual fitment or replacement use. Constructed from hard-wearing steel with zinc passivation applied to significantly improve corrosion resistance, this coupling is tested to over one million cycles, underscoring its suitability for intensive workshop and industrial environments. It connects to most popular and European adaptor profiles, including Cejn and Rectus, making it a versatile choice across a wide range of pneumatic systems. The 54407 delivers a flow capacity of 78 cfm (2,200 L/min) at 6 bar inlet with a 0.5 bar pressure drop, and operates across a temperature range of -40 to 100°C. The nominal flow diameter is 7.4 mm. Maximum working pressure is rated at 500 psi (35 bar), with a test pressure of 725 psi (50 bar) and a maximum burst pressure of 2,030 psi (140 bar). These performance figures confirm its credentials for demanding high-pressure pneumatic circuits.
For heavy duty high flow applications About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AC33CF/ETCHED | AC71CM | AC21CM05K | ACH13 | AC71JF/S |
| Type | Coupling | Coupling | Coupling | Coupling | Coupling |
| Drive | 1/4" | ||||
| Family | PCL | PCL XF-Euro | PCL Airflow | PCL XF-Euro | |
| Thread | 1/4" | 1/4" | 1/4" | 1/4" | 1/2" |
A. The Draper 54407 uses a 1/4" BSP parallel female thread, making it compatible with standard BSP parallel fittings used across a wide range of pneumatic systems.
A. The Draper 54407 connects to most popular and European adaptor profiles, including Cejn and Rectus profiles.
A. The maximum working pressure is 500 psi (35 bar). Flow capacity is 78 cfm (2,200 L/min) at 6 bar inlet with a 0.5 bar pressure drop. The nominal flow diameter is 7.4 mm.
A. The coupling is rated for use across a temperature range of -40 to 100°C.
A. It is constructed from hard-wearing steel with zinc passivation applied to significantly improve corrosion resistance, and it has been tested to over one million cycles.
