Product Number: 54415
Variations

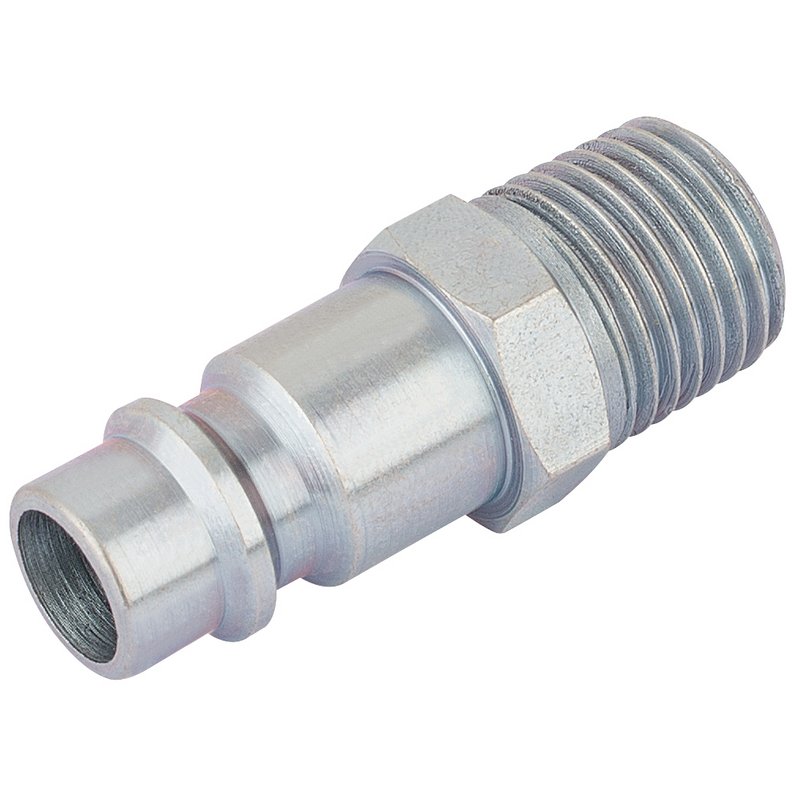

Compressed air systems demand couplings that withstand relentless industrial use without leaking or failing under pressure. This 1/4" BSP male nut PCL Euro coupling adaptor from Draper is engineered for heavy duty, high flow applications, tested to over 1 million cycles to confirm long-term reliability in professional workshop and production environments. Constructed from hard wearing steel and zinc passivated to significantly improve corrosion resistance, the adaptor is built to endure demanding conditions. It connects to most popular and European adaptor profiles, including Cejn and Rectus, making it a versatile addition to existing air line infrastructure without the need for dedicated proprietary fittings. The flow capacity at 6 bar inlet and 0.5 bar pressure drop is 78 cfm (2,200 L/min), ensuring unrestricted airflow for high-demand tooling. Maximum working pressure is 500 psi (35 bar), with a test pressure of 725 psi (50 bar) and a maximum burst pressure of 2,030 psi (140 bar). The nominal flow diameter is 7.4 mm, and the operating temperature range spans -40 to 100°C. Sold loose.
For heavy duty high flow applications, tested to over 1 million cycles, connects to most popular and European adaptor profiles (Cejn, Rectus etc.), zinc passivated to significantly improve corrosion resistance, hard wearing steel construction. Sold loose.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| 0.5bar Pressure Drop | 78cfm (2200L/min) |
|---|---|
| Max Burst Pressure | 2030psi (140bar) |
| Max Working Pressure | 500psi (35bar) |
| Nominal Flow Diameter | 7.4mm |
| Temperature Range | -40 to 100°C |
| Test Pressure | 725psi (50bar) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 54416 3/8" BSP Male Nut PCL Euro Coupling Adaptor (Sold Loose)
£12.50
£12.25
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 54414 | 54417 | 54419 | 25793 | 54416 |
| Type | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor |
| Drive | 1/2" | 1/4" | 3/8" | 3/8" | |
| Family | Euro | Euro | Euro | PCL | Euro |
| Thread | 1/8" | 1/2" | 1/4" | 3/8" | 3/8" |
A. The Draper 54415 is designed for heavy duty, high flow applications in professional workshop and industrial environments where a reliable, high-capacity air line connection is required.
A. The adaptor connects to most popular and European adaptor profiles, including Cejn and Rectus, providing broad compatibility across common workshop air line systems.
A. At 6 bar inlet and 0.5 bar pressure drop, the flow capacity is 78 cfm (2,200 L/min), supporting high-demand pneumatic tooling without restricting airflow.
A. The maximum working pressure is 500 psi (35 bar). The test pressure is 725 psi (50 bar), and the maximum burst pressure is 2,030 psi (140 bar).
A. The adaptor operates across a temperature range of -40 to 100°C, making it suitable for a wide variety of workshop and industrial conditions.
A. It is constructed from hard wearing steel and has been tested to over 1 million cycles. The zinc passivated finish significantly improves corrosion resistance for prolonged service life.
