Product Number: 54420
Variations

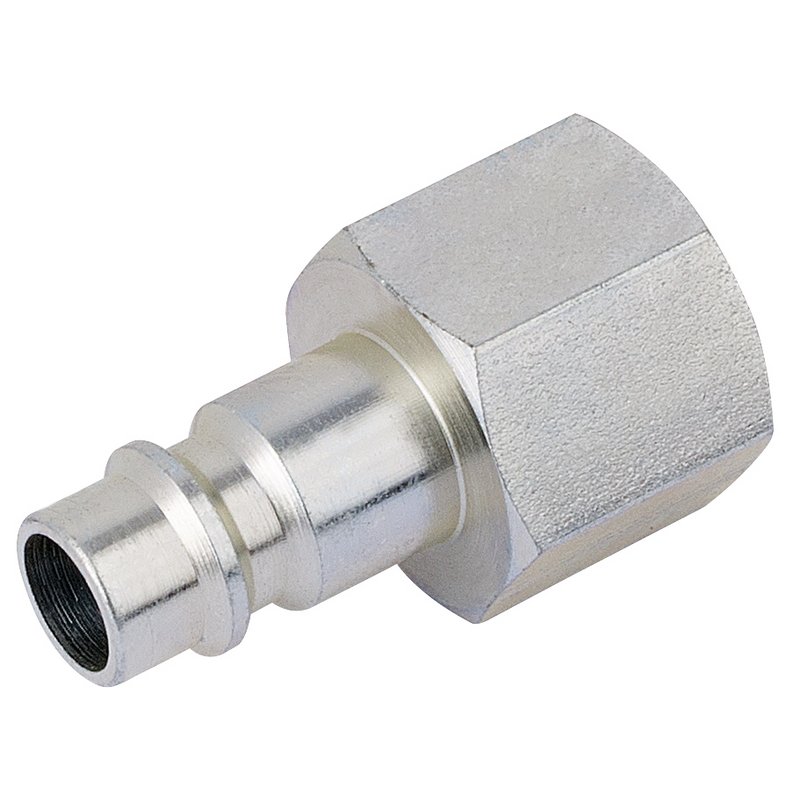

Air line connections in heavy-duty, high-flow environments demand components that can withstand sustained operational pressure without degradation. The Draper 54420 3/8" BSP Female Nut PCL Euro Coupling Adaptor is engineered for exactly these conditions, having been tested to over one million cycles to confirm long-term reliability in workshop and industrial settings. The adaptor connects to most popular and European adaptor profiles, including Cejn and Rectus, making it a versatile choice across mixed equipment fleets. Its hard-wearing steel construction is zinc passivated to significantly improve corrosion resistance, extending service life in demanding environments. The 54420 delivers a flow capacity of 78 cfm (2,200 L/min) at 6 bar inlet with a 0.5 bar pressure drop, and carries a nominal flow diameter of 7.4 mm. Maximum working pressure is rated at 500 psi (35 bar), with a test pressure of 725 psi (50 bar) and a maximum burst pressure of 2,030 psi (140 bar). The temperature range extends from -40°C to 100°C, confirming suitability for both cold-start and sustained high-temperature applications. The adaptor is sold loose as a single unit, offering a straightforward replacement or addition to an existing air line system without unnecessary packaging.
For heavy duty high flow applications, tested to over 1 million cycles, connects to most popular and European adaptor profiles (Cejn, Rectus etc.), zinc passivated to significantly improve corrosion resistance, hard wearing steel construction. Sold loose.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| 0.5bar Pressure Drop | 78cfm (2200L/min) |
|---|---|
| Max Burst Pressure | 2030psi (140bar) |
| Max Working Pressure | 500psi (35bar) |
| Nominal Flow Diameter | 7.4mm |
| Temperature Range | -40 to 100°C |
| Test Pressure | 725psi (50bar) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 54416 3/8" BSP Male Nut PCL Euro Coupling Adaptor (Sold Loose)
£12.50
£12.25
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 25793 | 54416 | 54414 | 54415 | 54417 |
| Type | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor | Coupling Adaptor |
| Drive | 3/8" | 3/8" | 1/4" | 1/2" | |
| Family | PCL | Euro | Euro | Euro | Euro |
| Thread | 3/8" | 3/8" | 1/8" | 1/4" | 1/2" |
A. The Draper 54420 uses a 3/8" BSP female nut thread, making it compatible with standard BSP-threaded air line fittings.
A. The adaptor connects to most popular and European adaptor profiles, including Cejn and Rectus, among others.
A. The maximum working pressure is 500 psi (35 bar). The test pressure is 725 psi (50 bar) and the maximum burst pressure is 2,030 psi (140 bar).
A. At 6 bar inlet pressure with a 0.5 bar pressure drop, the Draper 54420 delivers a flow capacity of 78 cfm (2,200 L/min), with a nominal flow diameter of 7.4 mm.
A. The adaptor is rated for use across a temperature range of -40°C to 100°C.
A. The adaptor features a zinc passivated finish applied to its hard-wearing steel construction, which significantly improves corrosion resistance.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
