Product Number: V3630-40-40

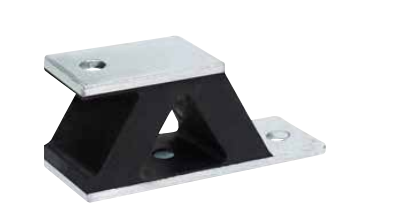

Soft-grade vibration isolation is the defining strength of the V3630-40-40, a 40 Shore A rubber-to-metal bonded W & V mount engineered for applications where maximum deflection and low-frequency isolation take priority over load restraint. With a compression maximum load of 17 kg and a shear maximum load of 7.5 kg across a shear deflection of 10 mm, this mount is sized and compounded for lighter or sensitivity-critical equipment where the rubber must yield freely under load to absorb vibration rather than resist it. Rubber-to-metal bonded construction forms the structural core of this mount, uniting the elastomeric element to its metalwork so that load is transferred evenly whether the mount is working in compression, shear, or a combination of both. At 40 Shore A, the softer durometer allows greater deflection under the rated loads, delivering the highest isolation efficiency within this geometry family, a characteristic that makes it well suited to situations where transmitted vibration or structure-borne noise must be minimised and where the connected equipment is not subject to heavy shock or high restraint demands. The industries served by this mount family include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. Across these sectors the 40 Shore A grade is most relevant where operator comfort, protection of sensitive components, or isolation of low-frequency excitation sources is the primary design requirement.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | RSM242-45-45 | RSM242-60-60 | RSM242-70-70 | RSM284-45-45 | RSM284-60-60 |
| Type | Mounting | Mounting | Mounting | Mounting | Mounting |
| Size | 127x57mm | ||||
A. This mount has a maximum compression load of 17 kg and a maximum shear mount load of 7.5 kg, with a shear deflection of 10 mm.
A. At 40 Shore A, the rubber is softer and gives greater deflection under load, which delivers better vibration isolation — particularly at lower frequencies. This makes it most suitable for lighter or sensitivity-critical equipment where isolation efficiency matters more than high load capacity or restraint.
A. The mount may be loaded in compression, shear, or a combination of both, depending on the installation requirements.
A. This mount family is used across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. The 40 Shore A soft grade is particularly relevant where operator comfort, protection of sensitive components, or low-frequency isolation is the primary requirement.
A. Yes — the same geometry is offered in 55 Shore A (V3630-55) for general-purpose use and 70 Shore A (V3630-70) for higher-load or greater-restraint applications.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
