Compare with Similar products
Technical Specification
PRODUCT NUMBER JC220.102RE1/100/21RE1/100/25RE1/100/26RE1/100/30
Type Anti-Vibration MountAnti-Vibration MountAnti-Vibration MountAnti-Vibration MountAnti-Vibration Mount
Size 181mm200mm200mm200mm200mm
Size Range 101-200mm101-200mm101-200mm101-200mm101-200mm

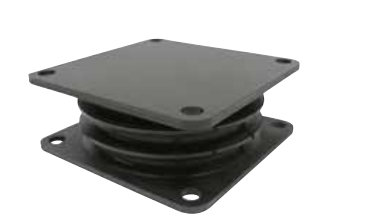

Q 1. What are the dimensions of the SW200-40 mount?

A. The SW200-40 has the following principal dimensions: A: 184 mm, K: 220 mm, H: 82 mm, d: 17 mm, t: 8 mm, with a maximum rated load of 6,000 kg.

Q 2. Why choose a 40 Shore A grade rather than a harder mount?

A. A softer 40 Shore A rubber element allows greater deflection under load than harder grades in the same SW range. This greater compliance produces more effective isolation at lower excitation frequencies, making the SW200-40 the preferred choice where protecting sensitive instruments, electronics, or lighter equipment from vibration is more important than maximising restraint or minimising movement.

Q 3. In which load directions can the SW200-40 be used?

A. The SW200-40 may be loaded in shear, compression, or a combination of both, as confirmed by the product specification.

Q 4. Which industries and applications is the SW200-40 designed for?

A. The SW200-40 serves construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence sectors. It is particularly suited to instruments, electronics, and light or vibration-sensitive equipment where isolation from structure-borne noise and low-frequency vibration is the primary requirement.

Q 5. Are custom specifications available for the SW200-40?

A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes beyond the standard range.

Q 6. What other sizes and grades are available in the SW mounting family?

A. The SW range includes SW200-60 (60 Shore A in the same 184 mm body), plus SW125, SW150, and SW300 in various grades. These cover a range of load capacities and deflection characteristics to suit different isolation requirements.
