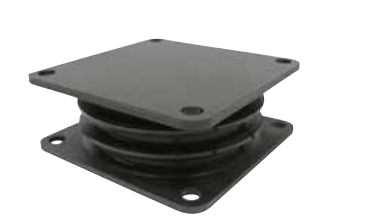

Product Number: SW125-60
Variations
Carrying a maximum load of 4,500 kg with the measured compliance of a medium-grade rubber, the SW125-60 is an 118 mm bobbin-style anti-vibration mount rated at 60 Shore A, a hardness that positions it squarely across the broad middle ground of machinery mounting, balancing adequate deflection for effective isolation against the structural rigidity needed to support substantial loads. It is suited to a wide spread of general-purpose installations where neither extreme softness nor maximum firmness is required. Rubber-to-metal bonded construction forms the structural basis of every SW mount. At 60 Shore A, the rubber element offers a calibrated balance between isolation performance and load-bearing capacity, making this grade appropriate where machinery generates moderate vibration that must be attenuated without permitting excessive movement. The mount may be loaded in shear, compression, or a combination of both, providing flexibility in mounting geometry across varied equipment configurations. With principal dimensions of A 118 mm, K 148 mm, H 52 mm, bore diameter d 13.5 mm and thread depth t 5 mm, the SW125-60 occupies the smallest position in the SW range. This geometry suits lighter, compact or sensitive installations where space is constrained and load demands are lower. Application sectors include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence. Correctly specified mounts improve machinery lifespan, protect surrounding structures and improve operator comfort.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | JC220.1026 | CB1814-60 | 12246TRB38 | 12525PRB17 | FCM5 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 117mm | 120mm | 122mm | 125mm | 125mm |
| Deflection | 5 | ||||
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M20 | ||||
A. The SW125-60 has a diameter (A) of 118 mm, overall width (K) of 148 mm, height (H) of 52 mm, bore diameter (d) of 13.5 mm, and thread depth (t) of 5 mm.
A. The SW125-60 is rated to a maximum load of 4,500 kg.
A. The 60 Shore A grade carries higher loads with less movement, offering a balance of isolation and structural support. The softer 40 Shore A grade (SW125-40) gives greater deflection and better isolation performance at lower loads. For lighter, more sensitive installations where maximum isolation is the priority, the 40 Shore A variant may be more appropriate.
A. The SW125-60 may be loaded in shear, compression, or a combination of both, providing flexibility to suit a variety of mounting geometries.
A. The SW mount family serves construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. The 60 Shore A grade is suited to general-purpose machinery mounting across these sectors.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. The SW range includes larger-diameter models: SW150, SW200, and SW300, which offer progressively higher load capacities. The SW125-40 provides a softer 40 Shore A option in the same 118 mm geometry.
