Compare with Similar products
Technical Specification
PRODUCT NUMBER JC220.102RE1/100/21RE1/100/25RE1/100/26RE1/100/30
Type Anti-Vibration MountAnti-Vibration MountAnti-Vibration MountAnti-Vibration MountAnti-Vibration Mount
Size 181mm200mm200mm200mm200mm
Size Range 101-200mm101-200mm101-200mm101-200mm101-200mm

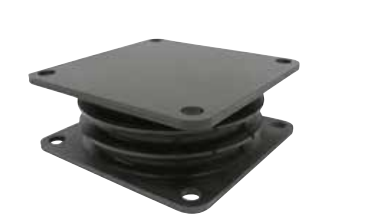

Q 1. What are the key dimensions of the SW200-60 mount?

A. The SW200-60 has the following dimensions: A: 184 mm, K: 220 mm, H: 82 mm, d: 17 mm, and t: 8 mm, with a maximum load rating of 12,000 kg.

Q 2. What hardness grade is the SW200-60 and what does that mean in practice?

A. The SW200-60 is rated at 60 Shore A, which is a medium hardness grade. This provides a balance between vibration isolation and load support, making it suitable for general-purpose machinery mounting where moderate to high loads are present and controlled damping is required.

Q 3. What industries and applications is the SW200-60 suitable for?

A. The SW200-60 is suited to power generation, agricultural machinery, construction and off-highway equipment, marine, railway and mass transit, automotive, and military and defence applications where mainstream general-machinery mounting at moderate to substantial loads is required.

Q 4. How can the SW200-60 be loaded during installation?

A. The mount may be loaded in shear, compression, or a combination of both, providing flexibility across different installation configurations.

Q 5. What are the benefits of using an SW200-60 anti vibration mount?

A. The SW200-60 improves machinery lifespan, protects surrounding structures from vibration-induced fatigue, and improves operator comfort by reducing transmitted vibration at the mounting interface.

Q 6. Are custom material options available for the SW200-60?

A. Yes — stainless steel metal components and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.

Q 7. How does the SW200-60 differ from other Shore grades and sizes in the SW range?

A. The SW200-60 at 60 Shore A medium hardness occupies the general-purpose middle ground of the SW200 series — carrying higher loads with less deflection than the softer SW200-40. Alternative frame sizes include SW125, SW150 and SW300, each offering different load and geometry characteristics.
