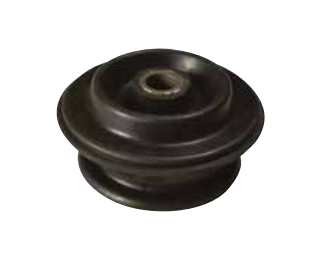

With a rated maximum load of 713 kg, CB1814-60 is the largest mount in the CB1814 cone cab mount range, a rubber-to-metal bonded unit with 120 mm base diameter and 60 Shore A hardness, engineered to balance effective vibration isolation against the substantial structural support demanded by heavy cab and engine installations. Where the softer grade prioritises deflection and the firmer grade restrains high-shock loading, this medium 60 Shore A specification occupies the broad working ground between those extremes, making it the natural choice when operators need consistent damping performance without surrendering load capacity. Cone cab mounts of this geometry deliver high horizontal stiffness relative to vertical stiffness, a characteristic that controls lateral movement while absorbing vertical vibration inputs. The rubber-to-metal bonded construction maintains that stiffness relationship throughout the service life of the mount, and the failsafe design provides an inherent safety margin that makes the cone format particularly well suited to mobile plant. The mount may be loaded in shear, compression, or a combination of both, giving installation engineers flexibility when positioning on irregular chassis structures. With a base diameter of 120 mm, a B dimension of 89 mm, and a height range of 89.25–89.75 mm, this is the largest size in the CB1814 series and is directed at the heavier end of off-highway, construction, and agricultural machinery applications, operator cabs on earth-moving equipment, engine mounts on large agricultural platforms, and power-generation sets where a medium-hardness isolator reduces transmitted vibration without permitting excessive cab movement.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

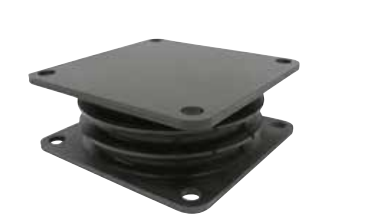

| PRODUCT NUMBER | 12246TRB38 | SW125-40 | SW125-60 | JC220.1026 | 12525PRB17 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 122mm | 118mm | 118mm | 117mm | 125mm |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
A. The CB1814-60 is rated to a maximum load of 713 kg, making it the highest-capacity mount in the CB1814 cone cab mount series.
A. The CB1814-60 has a base diameter (A) of 120 mm, a B dimension of 89 mm, C of 47 mm, D of 25 mm, E of 21 mm, F of 23 mm, G of 25 mm, a height range (H) of 89.25–89.75 mm, and an I Min of 120 mm.
A. Shore A hardness is a standardised measure of rubber stiffness. At 60 Shore A this mount sits in the medium range — carrying higher loads than softer grades while still providing effective vibration isolation, making it suitable for applications where both damping performance and load support are required simultaneously.
A. The CB1814-60 is suited to construction and earth-moving machinery, agricultural equipment, operator cabs, off-highway vehicles, power generation sets, marine installations, railway and mass transit, automotive, and military and defence applications.
A. Cone cab mounts provide high horizontal stiffness relative to vertical stiffness, which controls lateral movement while absorbing vertical vibration. The rubber-to-metal bonded construction maintains this characteristic throughout service life, and the failsafe design adds an inherent safety margin suited to mobile plant.
A. Yes. The mount may be loaded in shear, compression, or a combination of both, giving installation engineers flexibility when positioning on irregular chassis or cab structures.
A. Yes. The CB1814 geometry is also available in 45 Shore A (CB1814-45). Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for specialist environments.
A. The CB1814-60 and CB1814-45 share the 120 mm cone geometry covered here. The CB1650 and CB1650/1 are separate variants offering a different geometry for alternative installation configurations.
