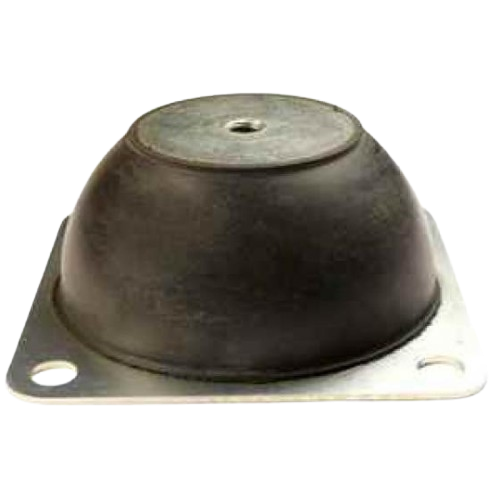

Product Number: FM1500-60
With a rated maximum load of 2,300 kg with a deflection of 46.0 mm, the FM1500-60 is the largest mount in the FM1500 range and is built for heavy-load and shock-duty applications where both structural support and vibration isolation must be delivered in equal measure. The 60 Shore A rubber hardness places it at the midpoint of the range, providing the balanced combination of load-bearing capacity and compliance that demanding industrial environments require, neither sacrificing isolation for rigidity nor compromising support for isolation. Constructed using rubber-to-metal bonded technology, the FM1500-60 features four fixing holes and an M24 thread centre (dimension C), a 186 mm footprint dimension A, a 160 mm dimension B, a 250 mm dimension D, a 310 mm dimension E, a 6 mm dimension F, and an 18 mm dimension G. The bonded construction ensures consistent performance under combined loading, shear, compression, or a combination of both. Protecting adjacent structures from transmitted vibration and improving operator comfort across sustained duty cycles. This flanged mounting is suited to the broad middle ground of machinery installation: power generation plant, large marine equipment, construction and off-highway vehicles, railway and mass transit systems, and heavy agricultural machinery where loads are substantial and isolation requirements are continuous rather than incidental. The 60 Shore A grade is the appropriate selection when neither a soft isolating grade nor a firm restraint grade fully matches the operating profile.
Flanged Mountings give high levels of deflection, providing excellent levels of vibration reduction and shock absorption both in vertical & horizontal planes. The Flange Mounts are a low cost & easy to install product. Stainless Steel metals and Oil Resistant / High Temperature rubbers are available on request.
Applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Fixing Holes | 4 |
|---|---|
| Top Width (A) | 186mm |
| Overall Height (B) | 160mm |
| Thread Size (C) | M24 |
| Inner Circle Dimesnion (D) | 250mm |
| Base Plate Width (E) | 310mm |
| Base Thickness (F) | 6mm |
| Fixing Hole Distance (G) | 18mm |
| Max Load (kg) | 2300 |
| Deflection (mm) | 41.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM007-75 | FM100-60 | FM100-75 | FM100260 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 18x20mm | 68mm | |||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | ||||
| Thread | M6 | M6 | M10 | M10 | M10 |
A. The FM1500-60 has a maximum load rating of 2,300 kg and a deflection of 46.0 mm. These figures reflect its position as the largest mount in the FM1500 range, designed to carry heavy loads while still providing meaningful vibration isolation.
A. Dimension A is 186 mm, B is 160 mm, C (thread) is M24, D is 250 mm, E is 310 mm, F is 6 mm, and G is 18 mm. The mount has four fixing holes.
A. A 60 Shore A rubber hardness occupies the middle ground of the range — softer grades provide greater deflection and better isolation at lower loads, whilst harder grades carry higher loads with less movement. The 60 Shore A grade is the appropriate choice when a balance of vibration isolation and load-bearing support is required, rather than prioritising one over the other.
A. This flanged mount is suited to heavy-duty applications across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence industries. It is intended for machinery installations where both high load capacity and continuous vibration isolation are required.
A. Yes — the rubber-to-metal bonded construction of this mount allows it to be loaded in shear, compression, or a combination of both, providing flexibility to suit different mounting configurations and equipment types.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
A. The FM1500 series is also available in 40 Shore A (FM1500-40) and 75 Shore A (FM1500-75). Related mounting families include FM007, FM100, FM1566, FM200, FM209, and FM25, covering a range of load ratings and thread sizes.
