Product Number: FM100-60

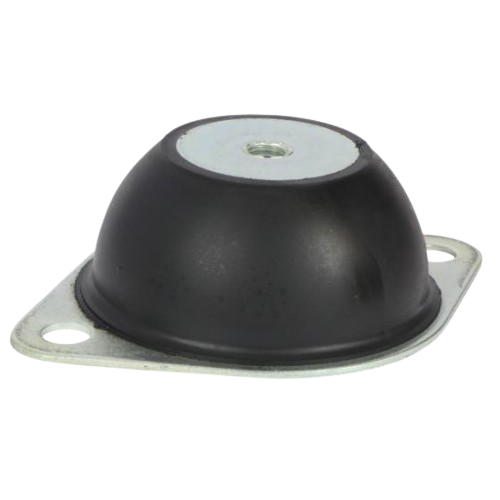

Balancing isolation performance with structural support, the FM100-60 flanged anti-vibration mount occupies the mainstream centre of its range, designed for general-machinery mounting at moderate loads where neither excessive deflection nor rigid restraint is appropriate. With a maximum load rating of 100.0 kg and a controlled deflection of 7.0 mm, this medium-grade 60 Shore A unit delivers the measured movement and stable damping that broad-spectrum industrial machinery demands. Rubber-to-metal bonded construction gives this mount its durability and consistency across repeated load cycles. The flanged body accepts an M10 fixing thread (dimension C) and is drilled with 2 fixing holes for secure mounting to a baseplate or chassis. Key dimensions are: A 53 mm, B 40 mm, D 110 mm, E 136 mm, F 2 mm, and G 11.5 mm, providing a footprint suited to mid-weight equipment frames. At 60 Shore A, the rubber element carries higher loads with less movement than softer grades, whilst retaining enough compliance to attenuate vibration transmitted to surrounding structures, a combination particularly well suited to equipment that must remain positionally stable under variable duty. This mount serves the broad middle ground of machinery mounting across construction and off-highway plant, power generation sets, agricultural equipment, marine installations, railway and mass transit systems, and automotive and military applications. It is appropriate where the machine presents moderate, steady loads and general-purpose vibration control is the primary requirement, rather than the fine isolation emphasis of softer grades or the high-load restraint priority of firmer grades.
Providing high levels of vertical static deflection under relatively low load, the Flanged Mountings achieve high levels of vibration isolation and shock absorption. An economical and easy to install anti-vibration, they are suitable for a variety of applications:The High Deflection Mounts are also available in synthetic rubber compounds, which are resistant to attack from oil and fuel, as well as stainless steel metal parts.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Fixing Holes | 2 |
|---|---|
| Head Dimensions(A) | 53mm |
| Height (B) | 40mm |
| Fixing Hole Dimensions (C) | M10mm |
| Center Distance Dimensions (D) | 110mm |
| Free Length (E) | 136mm |
| Mounting Base Thickness (F) | 2mm |
| Bore Dimensions (G) | 11.5mm |
| Max Load (Kg) | 100 |
| Deflection (mm) | 6.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM007-75 | FM100-75 | FM100260 | FM10028-45 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | ||||
| Size | 18x20mm | 68mm | 100mm | ||
| Deflection | 3 | ||||
| Size Range | 51-100mm | 51-100mm | |||
| Thread | M6 | M6 | M10 | M10 | M10 |
A. The FM100-60 is rated to a maximum load of 100.0 kg with a deflection of 7.0 mm, making it suited to moderate-load general machinery applications where controlled movement and stable damping are required.
A. The FM100-60 uses an M10 fixing thread (dimension C) and is drilled with 2 fixing holes for secure attachment to a baseplate or chassis.
A. A: 53 mm, B: 40 mm, C: M10, D: 110 mm, E: 136 mm, F: 2 mm, G: 11.5 mm. These dimensions define the overall envelope and mounting footprint of the unit.
A. A 60 Shore A medium grade carries higher loads with less movement than softer grades, whilst retaining sufficient compliance to attenuate vibration transmitted to surrounding structures. It is the general-purpose choice where steady moderate loads and broad-spectrum vibration control are the priority, rather than the fine isolation emphasis of softer grades or the high-load restraint of firmer grades.
A. This mount is used across construction and off-highway plant, power generation, agricultural equipment, marine installations, railway and mass transit systems, and automotive and military applications — wherever moderate, steady loads and general-purpose vibration control are required.
A. Yes. The FM100-60 may be loaded in shear, compression, or a combination of both, giving flexibility in installation orientation to suit the specific mounting arrangement.
A. Yes. The FM100 flanged mount is also available in 40 Shore A (FM100-40) and 75 Shore A (FM100-75). Stainless steel metal components, oil-resistant rubbers, high-temperature rubber compounds, and custom or additional sizes are available on request.
A. The wider range includes FM007, FM1500, FM1566, FM200, FM209, and FM25, covering a spectrum of load capacities and geometries. See the related products on the PartsForMachines listing for details.
